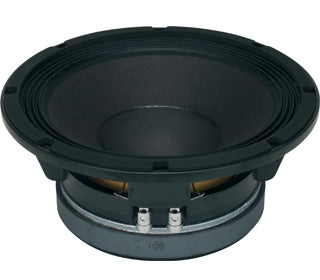

10G40 LOW FREQUENCY TRANSDUCER:  G40 Series

Features:

• High power handling: 400 WAES ●
• Sensitivity 95 dB (1W / 1m)
• Extremely linear frequency response
• Low harmonic distortion
• Optimum winding length for increased linear excursion
• 3” copper voice coil with polymide fiber glass former
• Large magnetic assembly to provide efficient heat dissipation
• Designed for woofer applications
• Optimized for small bass-reflex cabinets

Specifications:

• Nominal diameter: 250 mm 10 in
• Nominal impedance: 8 ohm
• Minimum impedance: 6.6 ohm @ 5.3 kHz
• Power capacity: 400 W AES
• Program power: 800 W
• Sensitivity: 95 dB 1 W @ 1m @ 2Π
• Frequency range: 45-4000 Hz
• Recommended enclosure volume: 20 / 70 l 0.7 / 2.6 ft.³
• Voice coil diameter: 77 mm 3 in
• BL factor: 17 N / A
• Moving mass: 0.052 kg
• Winding length: 17.5 mm
• Air gap height: 7 mm
• Xdamage pp: 28 mm
