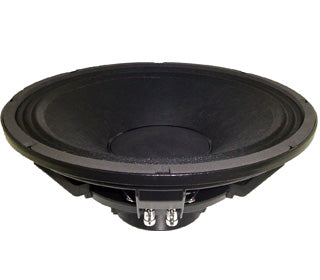

15P80/Nd LOW FREQUENCY TRANSDUCER: P80 Series

Features:

• 1.600 W program power
• High sensitivity: 100 dB (1W / 1m)
• FEA optimized magnetic circuit.
• Forced air convection circuit for low power compression.
• CONEX spider for higher resistance and consistency.
• Waterproof treatment for both sides of the cone.
• 4” duo technology voice coil.
• Extended controlled displacement: Xmax ± 7,5 mm
• Massive mechanical displacement capability: Xdamage ± 52 mm

Specifications:

• Nominal diameter: 380 mm 15 in
• Nominal impedance: 8 ohm
• Minimum impedance: 5.5 ohm
• Power capacity: 800 W AES
• Program power: 1600 W
• Sensitivity: 100 dB 1 W @ 1 m @ ZN
• Frequency range: 30-4000 Hz
• Recommended enclosure volume: 40 / 150 l / 1.4 / 5.3 ft³
• Voice coil diameter: 100 mm 4 in
• BL factor: 24.3 N / A
• Moving mass: 0.105 kg
• Winding length: 20 mm
• Air gap height: 12 mm
• Xdamage pp: 52 mm
