Showtec 4-Channel Chainhoist Controller
Direct Control

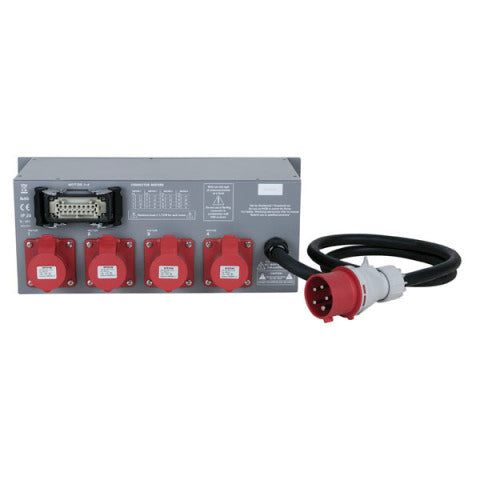

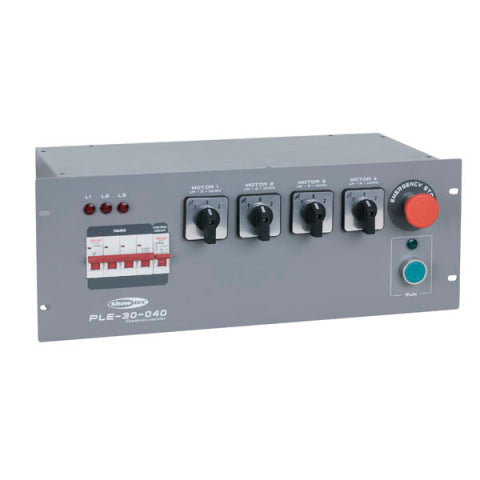

The Showtec Chainhoist controller is a dedicated controller for all popular direct controlled chainhoists such as CM Lodestar. Each of the 4 hoist can be selected individually to go up or down or to be deselected. On the backside the unit has 4 x 4 pole CEE connectors as well as a 16 pole multipin to connect a break/out box.

SPECIFICATIONS

• Power Supply: 400V/50 Hz

• Dimensions: 19" 4U

• Power Connector: CEE 5 pole 32A

• Output Connector: CEE 4 pole 16A

• 16 pole multi-connector

• Safety: Emergency button

• Dimensions (mm): 483 x 178 x 200 (without buttons and connectors)

• Max depth: 280 mm incl buttons and connectors
