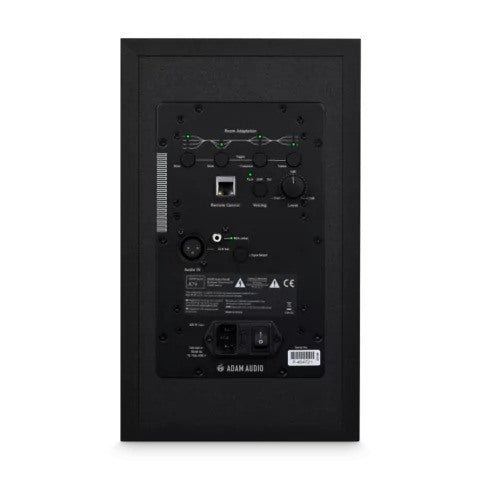

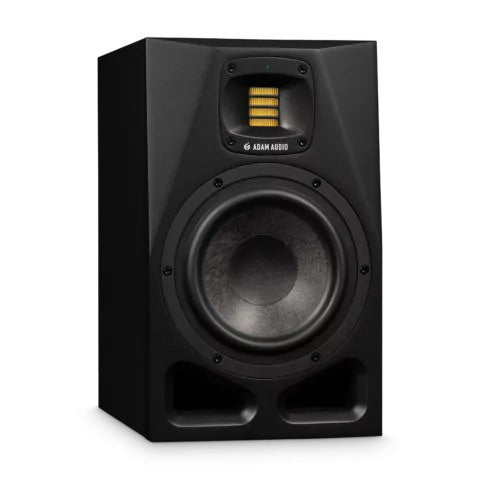

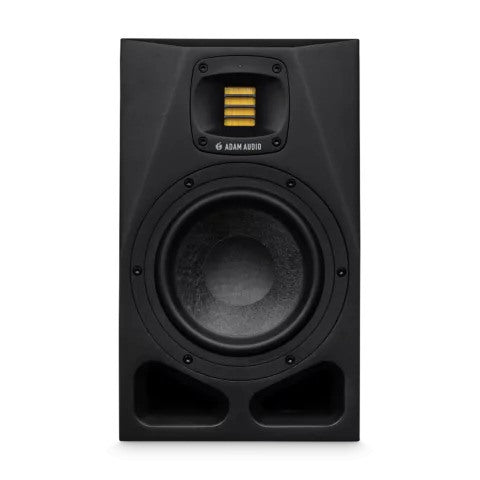

A7V Adam Audio Nearfield monitor (6.5 inch)
A7V ADAM AUDIO (a piece)
The A7V is a contemporary 2-way monitor that represents the evolution of ADAM Audio's award-winning A7X. It is equipped with a 7" Multi-Layer Mineral woofer and a rotating X-ART tweeter, which is handmade in Berlin.
DSP-based voicing, equalization and room correction options can be controlled remotely and in real time via the free downloadable ...
Delivery
S2Store Genk (BE)
Plus- en minpunten
Omschrijving
A7V Adam Audio Nearfield monitor (6.5 inch)
A7V ADAM AUDIO (a piece)
The A7V is a contemporary 2-way monitor that represents the evolution of ADAM Audio's award-winning A7X. It is equipped with a 7" Multi-Layer Mineral woofer and a rotating X-ART tweeter, which is handmade in Berlin.
DSP-based voicing, equalization and room correction options can be controlled remotely and in real time via the free downloadable A Control software, and updateable firmware allows new filters and tunings to be implemented over the life of the monitor.
Korte specificaties
| Housing | |
|---|---|
| Construction material | Vinyl wrapped MDF and painted MDF front panel |
| Sound | |
|---|---|
| Crossover frequency | 2.8 kHz |
| Frequency response | -3 dB: 44 Hz – 41 kHz / -6 dB: 40 Hz – 45 kHz |
| HF driver | X-ART - Diaphragm Area: 4 inch² - Equivalent Diaphragm Diameter: 2″ |
| Impedance | Input Impedance: 9 kOhm / 3.3 kOhm |
| LF driver | 7" |
| SPL | 105dB |
| Beam angle | 120° horizontal, 70° vertical |
| Power | |
|---|---|
| HF power | 20 W max |
| LF power | 110 W max |
| Amplifier configuration | PWM |
| Amplifier class | A/B |
| Power supply | |
|---|---|
| Voltage | 100 – 240 V, 50/60 Hz |
| Consumption | (max, ruststand, slaapstand): 220 W, 10 W, 3,5 W |
| Audio I/O | |
|---|---|
| Inputs | XLR, RCA |
| Digital audio | |
|---|---|
| Bit depth | 24-bit |
| Sample rate | 96 kHz |
