ADP-DAI-AU-1X0 Audinate Dante AVIO - Analog Input Adapter 1-Channel XLR F
ADP-DAI-AU-1X0 Audinate Dante AVIO - Analog Input Adapter 1-Channel XLR F
Dante AVIO Analog Inputs let you use analog audio line-level source gear you already own to feed any Dante-connected system. Don’t abandon trusted mixing consoles, wireless mics and other analog sources - adapt them to the world of audio networking with Dante AVIO. Supports one channel of analog audio inpu...
Delivery
S2Store Genk (BE)
Combination deal
Audinate Dante AVIO Set 1 kanaals XLR


- 1x ADP-DAO-AU-0X1 Audinate Dante AVIO - Analog Output Adaptor 1-Channel XLR M€199,00
- 1x ADP-DAI-AU-1X0 Audinate Dante AVIO - Analog Input Adapter 1-Channel XLR F€199,00
Combination deal
Audinate Dante AVIO Set 1 kanaals XLR


- 1x ADP-DAI-AU-1X0 Audinate Dante AVIO - Analog Input Adapter 1-Channel XLR F€199,00
- 1x ADP-DAO-AU-0X1 Audinate Dante AVIO - Analog Output Adaptor 1-Channel XLR M€199,00
Plus- en minpunten
Omschrijving

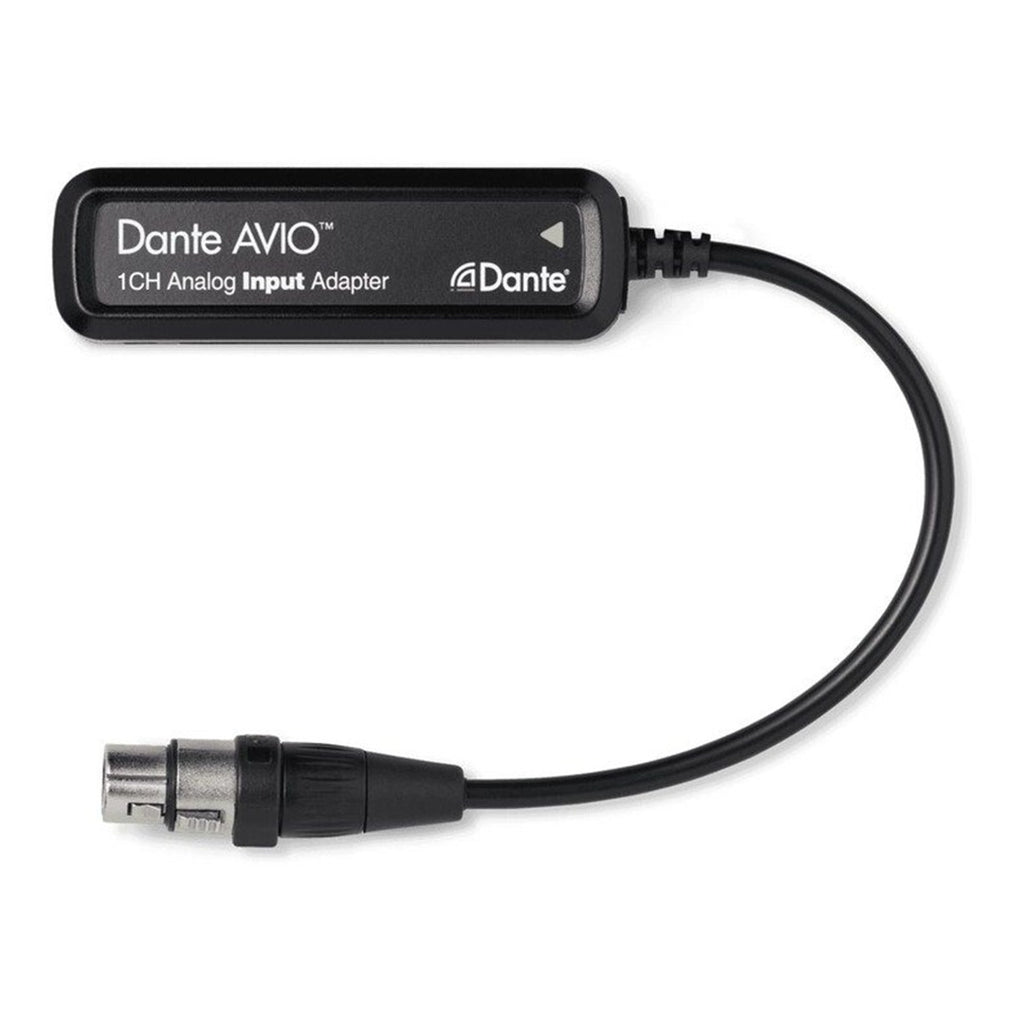

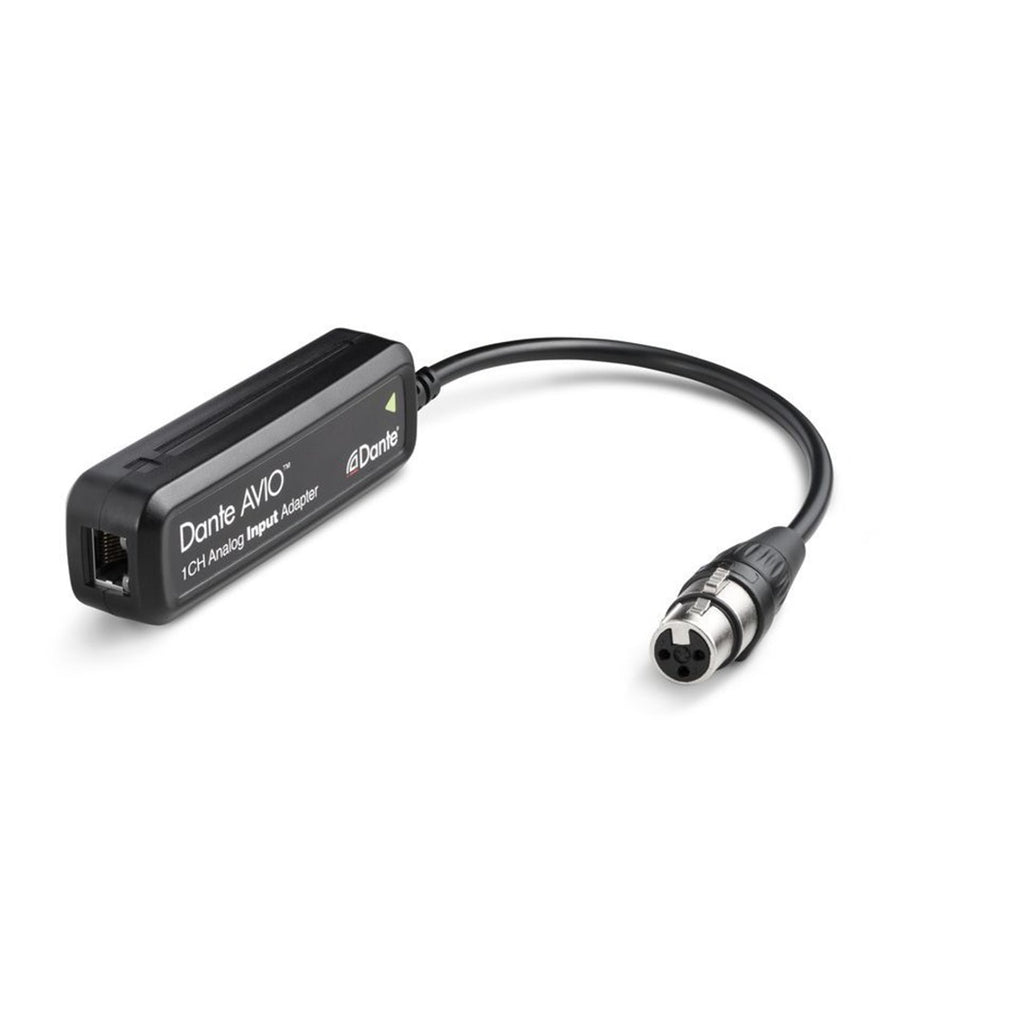

ADP-DAI-AU-1X0 Audinate Dante AVIO - Analog Input Adapter 1-Channel XLR F
ADP-DAI-AU-1X0 Audinate Dante AVIO - Analog Input Adapter 1-Channel XLR F
Dante AVIO Analog Inputs let you use analog audio line-level source gear you already own to feed any Dante-connected system. Don’t abandon trusted mixing consoles, wireless mics and other analog sources - adapt them to the world of audio networking with Dante AVIO. Supports one channel of analog audio input.
- Connect legacy mixers and consoles to a Dante network
- Patch DSPs, analog compressors and equalizers into a Dante system using a combination of Dante AVIO Input and Output adapters
- Connect stage DI boxes and keyboard instruments directly to a Dante network

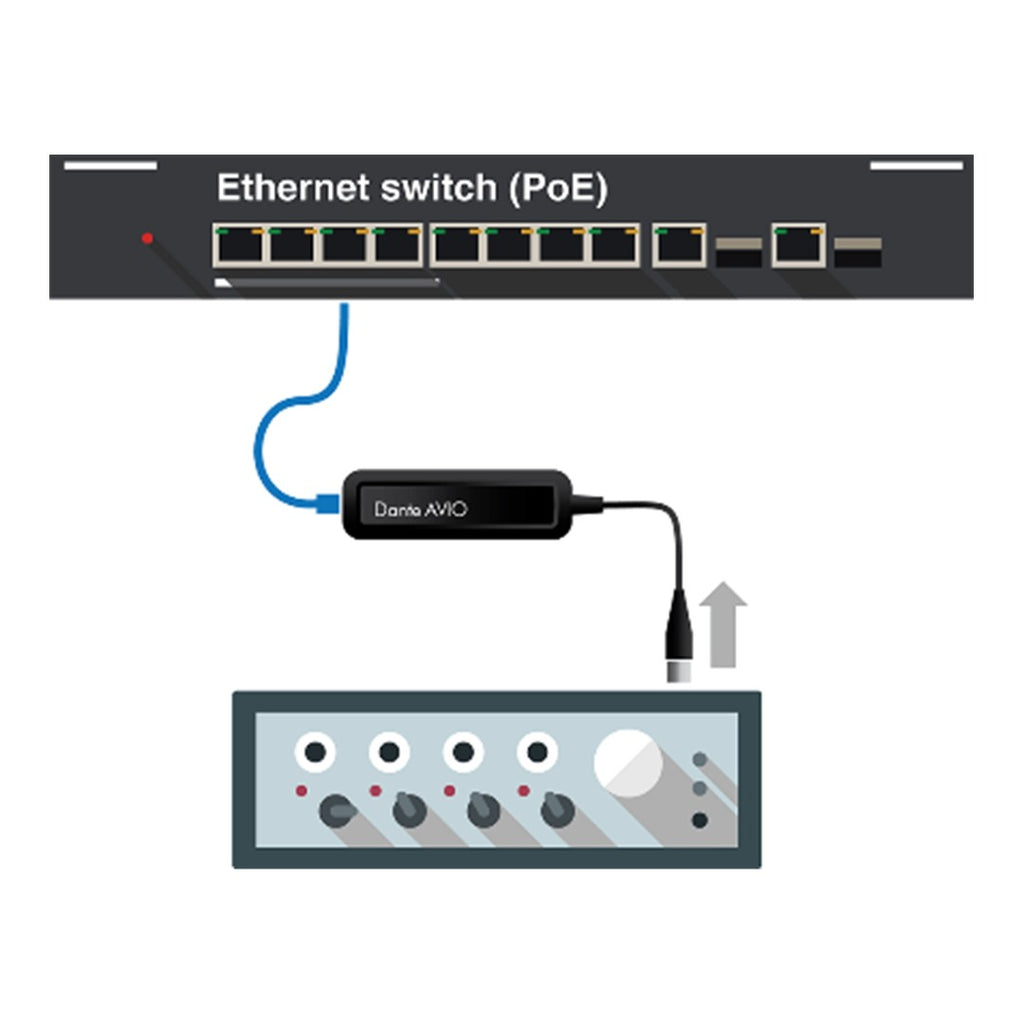

Note that Dante AVIO adapters require a Power over Ethernet (PoE) switch or 802.3af compliant PoE injector.
Korte specificaties
| Sound | |
|---|---|
| Dynamic range | > 100 dB |
| Frequency response | 20 Hz - 20 kHz(-/+0.5dB) |
| Impedance | 20 kΩ balanced / 10 kΩ Unbalanced |
| Signal-to-noise ratio | > 100 dB |
| THD (total harmonic distortion) | < 0.01% @ +4 dBu |
| Power supply | |
|---|---|
| Power supply | Class 1 802.3af PoE Switch or injector |
| Digital audio | |
|---|---|
| Bit depth | 24-bit |
| Sample rate | 44.1 kHz / 48 kHz / 96 kHz |
| Cable | |
|---|---|
| Connectors | RJ45 & 1 XLR vrouwelijk |
