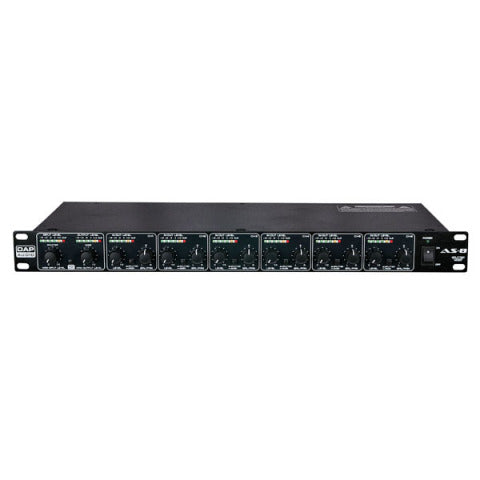

AS-8 AUDIO SPLITTER & MIXER DAP AUDIO
The AS-8 can be used for several purposes. Due to its intelligent design the users can easily switch between a controllable audio mixer with several inputs, or a signal splitter with several controllable outputs. This makes the AS-8 a multifunctional solution for your own monitor mix, multi zone systems, conference applications and more.
FEATURES:
- Selectable splitter/mixer function
- Wide range headroom
- 8 inputs
- 8 outputs
SPECIFICATIONS:
- Input Connectors: XLR and 1/4" TRS
- Input impedance: 50 KOhm balanced, 25 KOhm unbalanced
- Max. input level: +21 dBu
- Output connectors: XLR and 1/4" TRS
- Output impedance: 60 Ohm balanced, 30 Ohm unbalanced
- Freq Response: 5 Hz – 40 KHz
- Controls: input levels, output levels, main link switch, bal/pan switch, ground lift
- SNR: >95 dBu
- THD: < 0,002% typ. @ +4 dBu, 1KHz
- Indicators: 6-digits LED 18/-12/-6/0/+12/clip
- Power Supply: 230V AC, 50Hz
- Consumption: 15W
- Dimensions: 483x195x44 (WxDxH)
- Weight: 2,7Kg
DOWNLOADS:
D1904_CE-EMC_LVD_Directive
