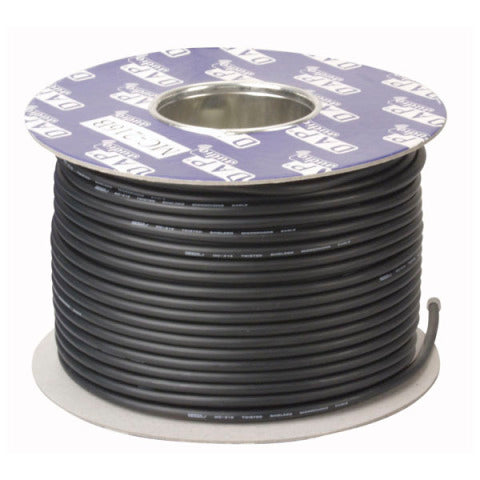

AV/80 DOUBLE SHIELDED VIDEO CABLE 75 OHM 100M - DAP-AUDIO
Regular price
€145,00
Unit price
per
AV/80 DOUBLE SHIELDED VIDEO CABLE 75 OHM 100M - DAP-AUDIO
Specifications
- Conductor drains Ø mm: 0,58
- Conductor insulation: PE
- Conductor insulation Ø mm: 3,71
- Conductor resistance Ohm/m: 65 Ohm/km ...
In stock
Delivery
Available
S2Store Genk (BE)
Available
Plus- en minpunten
Omschrijving
AV/80 DOUBLE SHIELDED VIDEO CABLE 75 OHM 100M - DAP-AUDIO
AV/80 DOUBLE SHIELDED VIDEO CABLE 75 OHM 100M - DAP-AUDIO
Specifications
- Conductor drains Ø mm: 0,58
- Conductor insulation: PE
- Conductor insulation Ø mm: 3,71
- Conductor resistance Ohm/m: 65 Ohm/km
- Outer insulation: PVC 6,2 Ø mm
- Working temperature: -20~50 °C (min./max.)
- Voltage overflash: 30V
- Nominal impedance: 75 Ohm
- Attenuation:10 MHz: 0,01020 /90 MHz: 0,07210 /100 MHz: 0,06840 /220 MHz: 0,11920 470 MHz: 0,20150 /770 MHz: 0,28750 /1000 MHz: 0,35850
