BEAMSPOT1-DMX FC

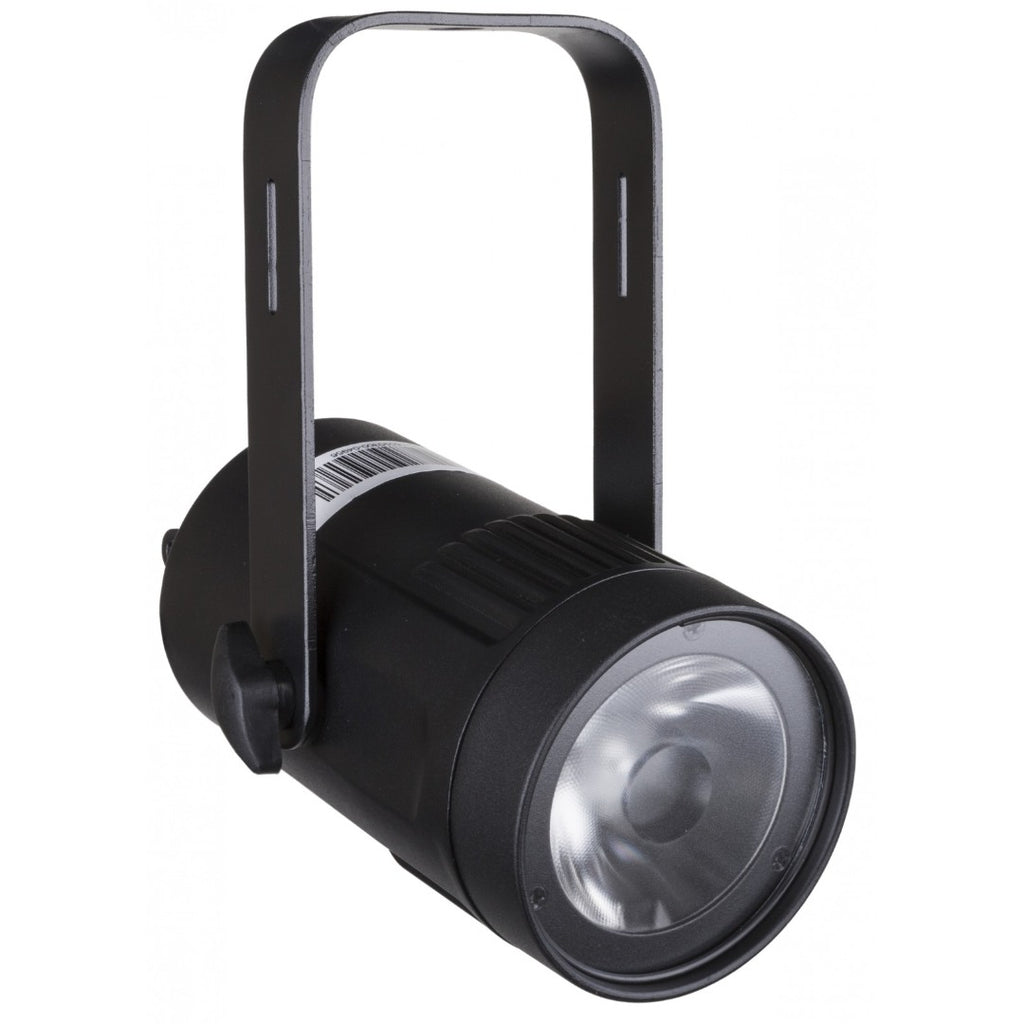

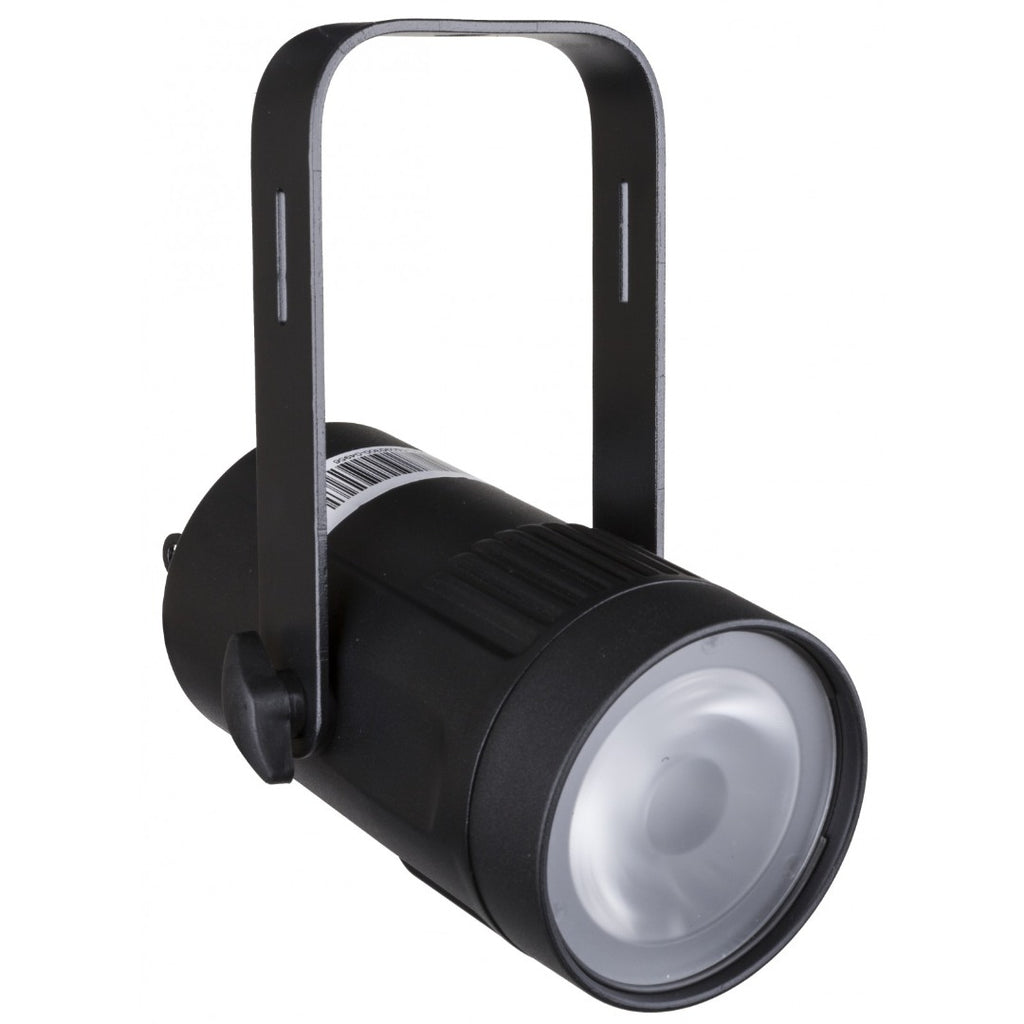

• This compact, stylish 15W RGBW single beam projector is equipped with a very narrow 4° lens making it a very powerful tool for all kinds of applications: perfect for all kinds of effects on stage but also for simply illuminating mirror balls etc.

• Thanks to the included 10° & 45° filters this beauty can also be used for discotheques, exhibition booths, … (perfect to light up small objects and small tables)

• Six different DMX-modes: from 4 to 7 channels.

• RDM-functionality for easy remote setup: DMX addressing, channel mode, …

• The OLED-display assures easy navigation in the different setup menus.

• TV-Studio ready: no cooling fans and flicker free 1200Hz LED refresh rate.

• Selectable lamp behavior: halogen lamp (slow) or led (fast)

• Four dimmer curves: linear, square, inverse square, S-curve

• In case of DMX failure you can choose between blackout and freeze mode.

• Lock function to avoid unwanted altering of the settings.

• White balance adjustment to perfectly match the colors of several projectors.

• Default factory settings + user settings can be saved/loaded.

• An IR-Remote is optionally available

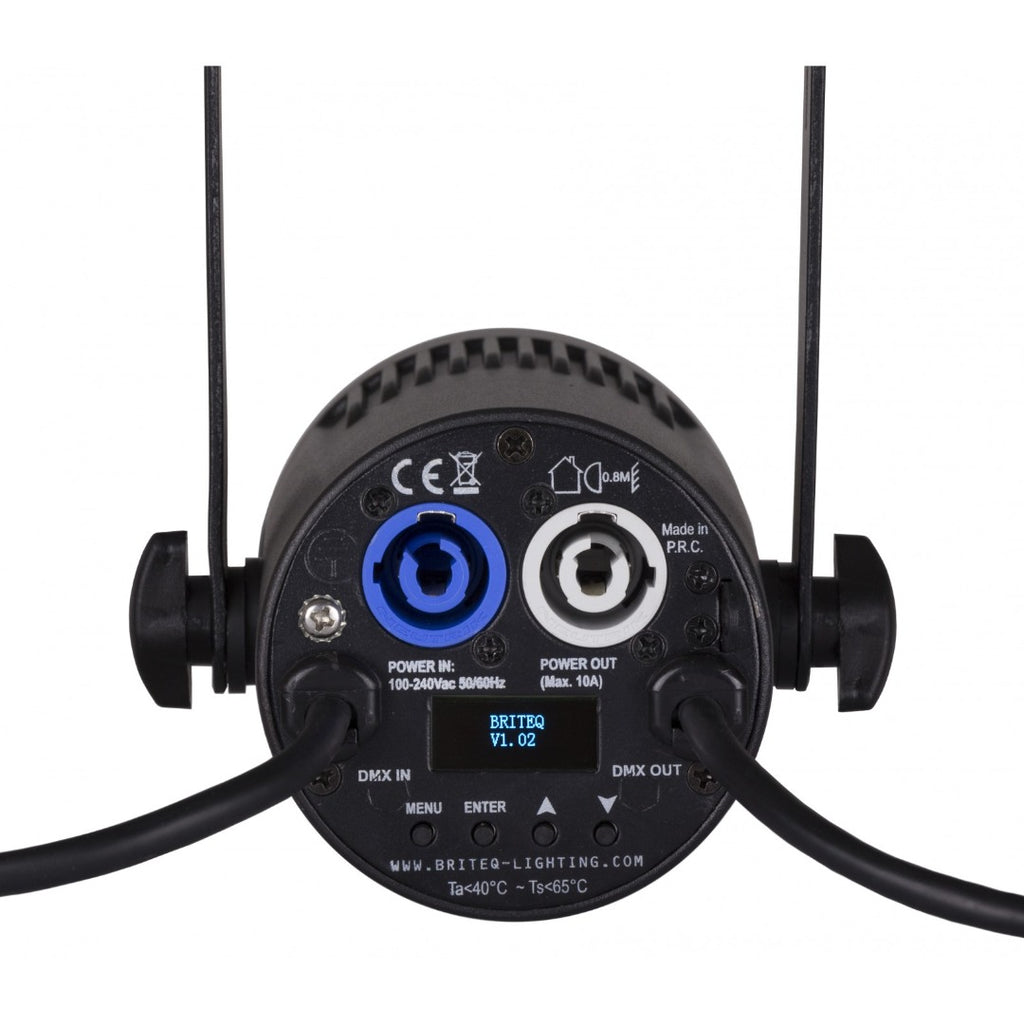

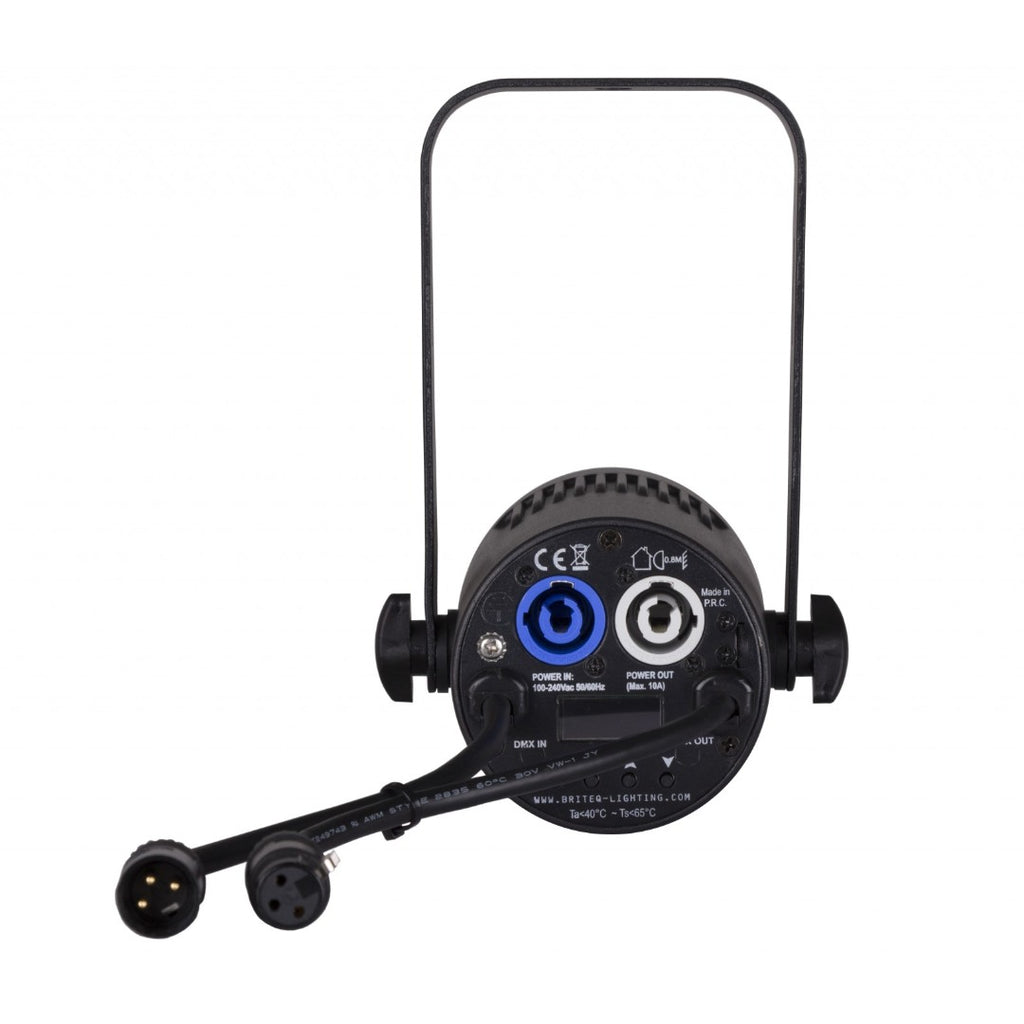

• 3pin DMX in/outputs and Neutrik® PowerCON® in/outputs for easy daisy chaining.

SPECIFICATIONS

• General : Application    Commercial lighting, DJ & Club, Stage & Rental

• General : Dimensions (cm)    17,2 x 19,6 x 12,5 cm

• General : Weight (kg)    1.23

• General : Powerinput    AC 100 - 240V, 50/60Hz

• General : Energy Label    No

• General : Power consumption W    15

• General : Color    black

• General : Display    No

• General : Fixation    M10

• General : IP rating    indoor

• Control : manual    Yes

• Control : Master/Slave    Yes

• Control : DMX M/S    No

• Control : Standalone    automatic, sound, fixed

• Control : Type included remote    -

• Control : optional remote    IR-2

• Control : programmable    No

• Control : upgradable software    Yes

• Control : maximum DMX channels    7

• Light : lamp socket    none

• Light : Lux    1820 Lux at 5m (beam angle 4°)

• Light : lumen    275

• Light : lamp    LED

• Light : min. color temperature (K)    -

• Light : max. color temperature (K)    -

• Light : CRI    -

• Light : colors    Red, Green, Blue, White, RGBW

• Light : mix colors    Yes

• Light : fixed gobos    -

• Light : rotating gobos    -

• Light : focus    None

• Light : zoom    Manual

• Light : iris    No

• Light : prism ( # facets + rotating y/n )    -

• Light : min. beam angle (°)    4

• Light : max. beam angle (°)    45

• Connections : input    3 pin XLR, powercon, rdm

• Connections : output    3 pin XLR, powercon

• Connections : XLR 3 pin    Yes

• Connections : XLR 5 pin    No

• Connections : Power Conn.    Yes

• Connections : midi    No

• Connections : usb    No

• Connections : wifi    No

• Connections : bluetooth    No

• Connections : artnet    No

• Connections : rdm    Yes
