BT-THEATRE 100EC Mk2

Description

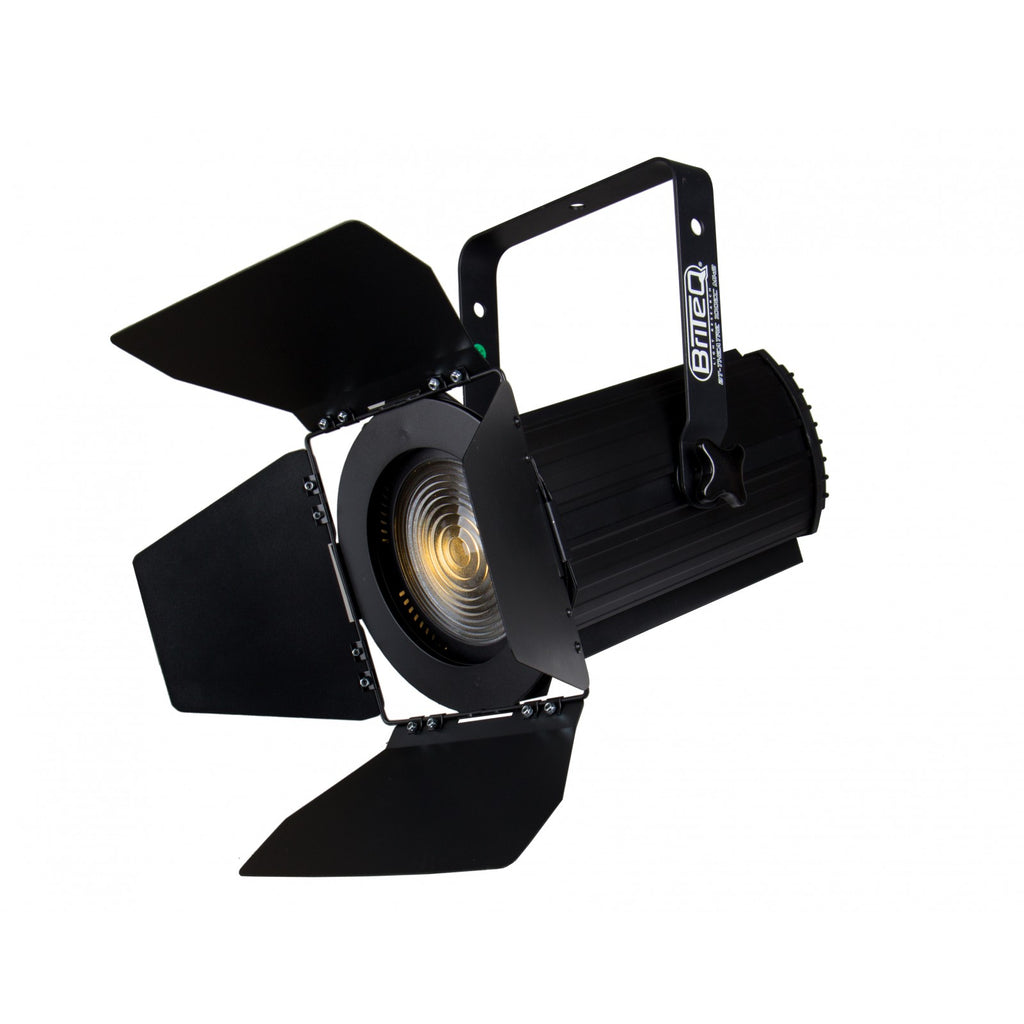

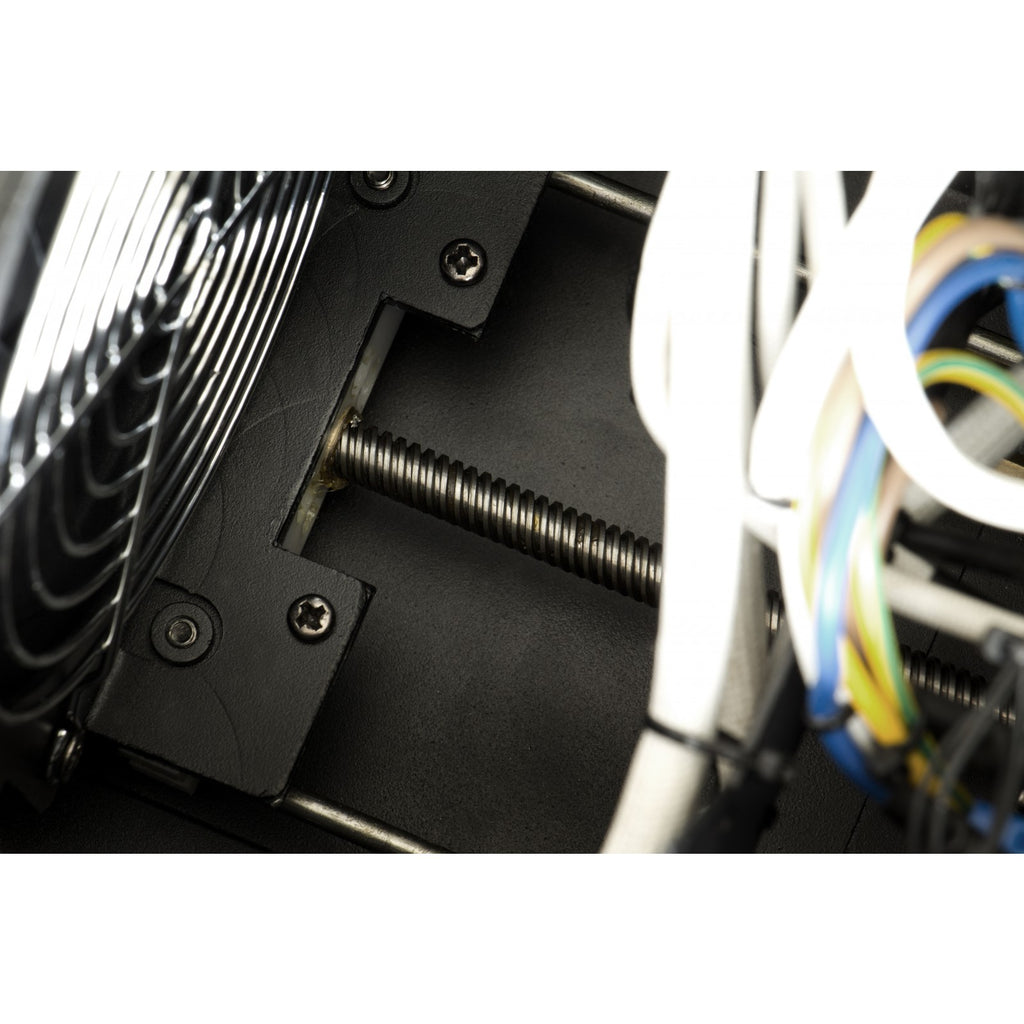

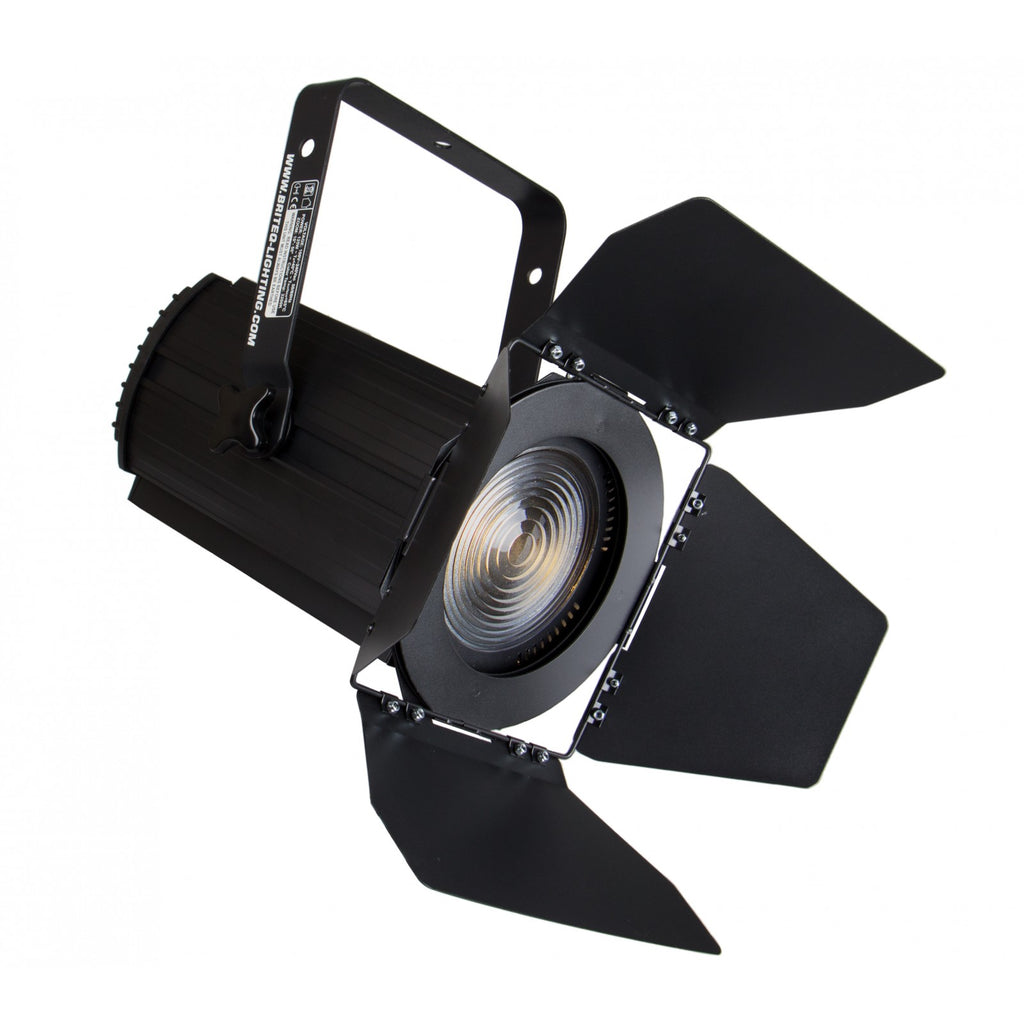

• Cost effective LED theater spot with manual 10° ~ 50° zoom.

• Not only for use in theatres but also perfect for showrooms, shops, exhibition booths, rental, …

• The powerful 100W white COB makes it a perfect replacement for a traditional 1000W halogen theater spot: max 7800 lux @2m (beam angle: 10°)

• Color frame for use of color filters and barn doors included

• No more heavy and expensive dimmer packs needed!

• Color temperature 3200K with high CRI-factor: 85 for natural colors

• LCD-display to select different working modes:

• Standalone (master) Mode : set dimmer + strobe (if needed)

• Master/slave mode: connect several projectors together, the first projector controls the others.

• DMX-controlled, 1CH: dimmer

• DMX-controlled, 2CH: dimmer, strobe

• Selectable lamp behavior: halogen lamp (slow) or led (fast)

• Four dimmer curves: linear, square, inverse square, S-curve

• In case of DMX failure you can choose between blackout and freeze mode.

• Partly extruded black anodized aluminium housing with strong bracket

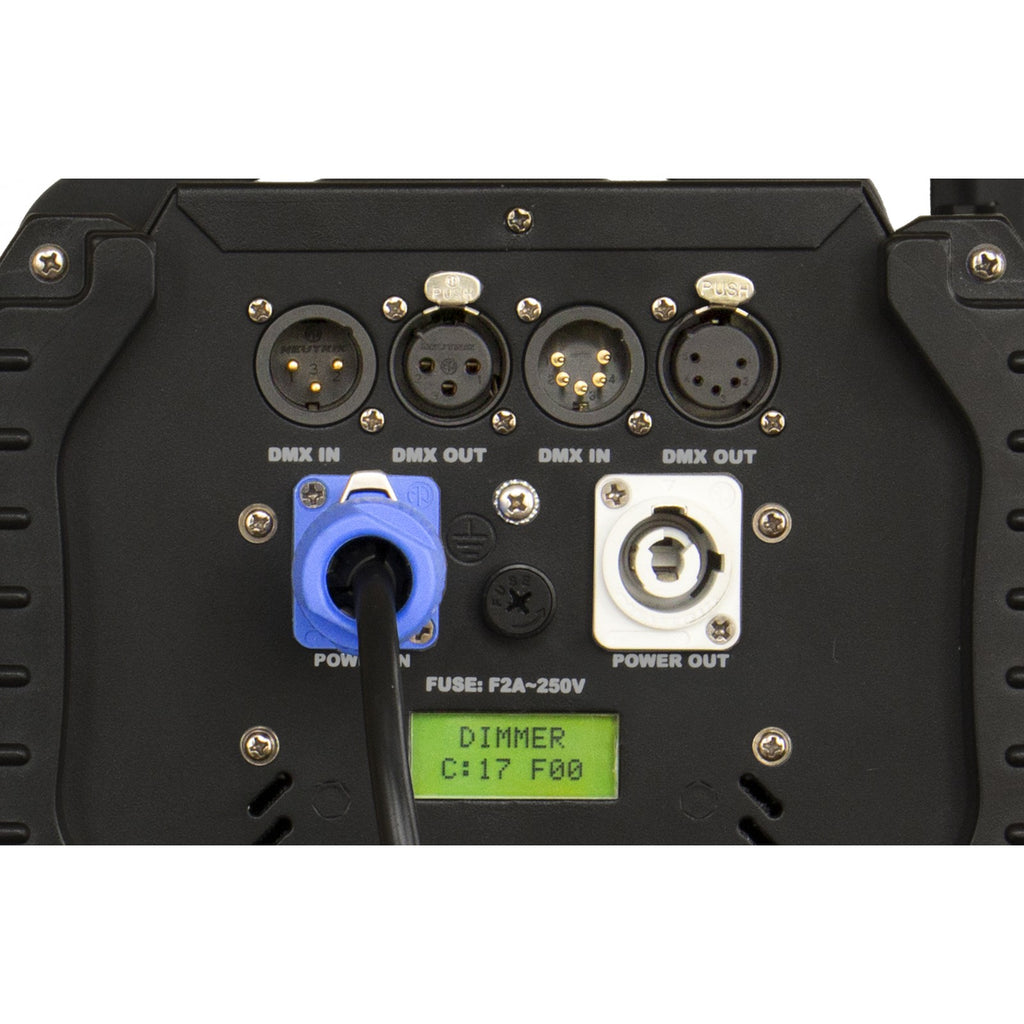

• Neutrik PowerCon in/outputs: easy daisy chaining of several units.

• Both 3pin & 5pin DMX in/outputs for maximum compatibility

• Forced very low noise fan cooling (31dB @ 1m)


Technical Information

• Mains Input:  AC 110V - 240V, 50/60Hz

• Power consumption:  125 Watt max.

• Fuse:  250V T2A (20mm glass)

• DMX connections:  3pin + 5pin XLR male / female

• DMX channels used:  1+2 channels

• Lamp:  100W warm white COB 3200K,

• CRI = 85

• luminous flux = 6800lm

• LED Refresh rate:  1200 Hz

• Fan noise: 31dB @ 1m & max fan speed

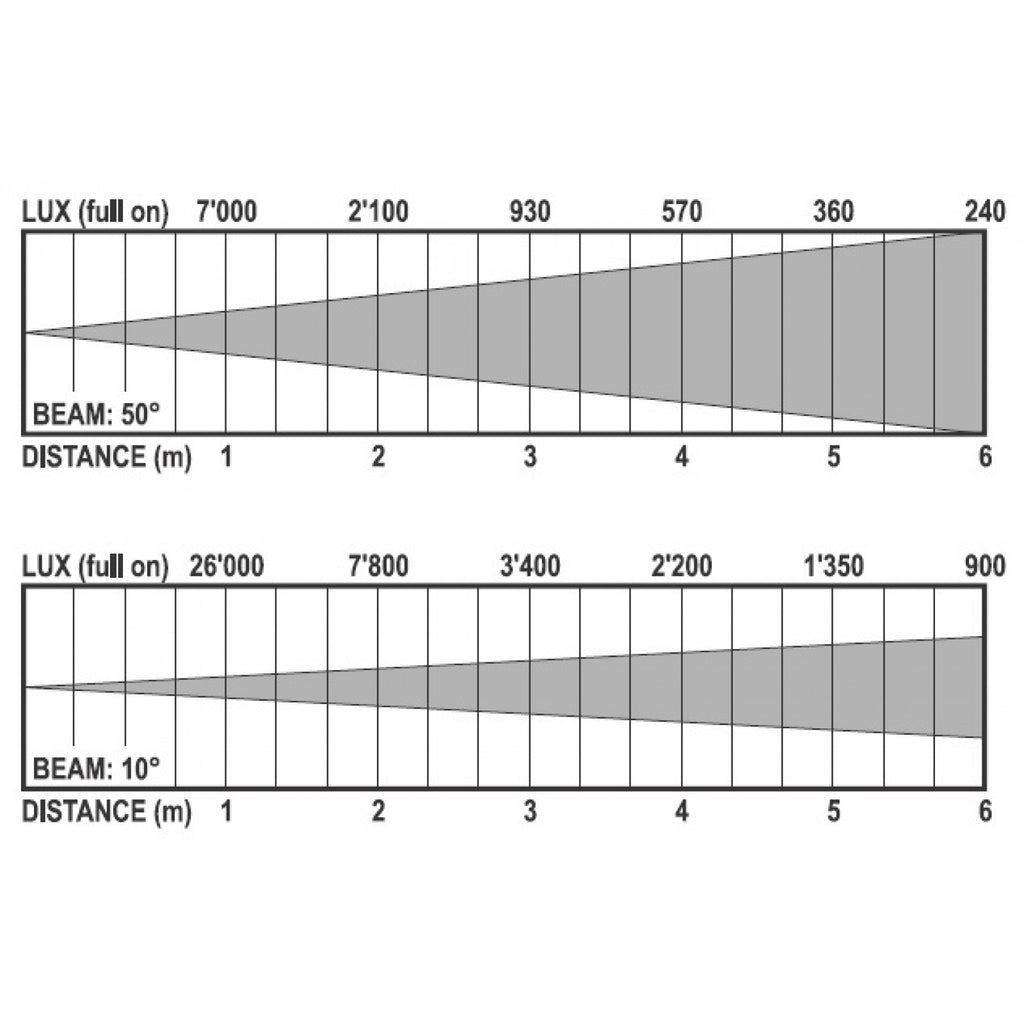

• Beam Angle:  10° – 50°

• Size:  226 x 278 x 305 mm (without bracket)

• Weight:  6,5 kg
