BTI-BeamBar18 Briteq LED Pixel Mapping Bar Outdoor

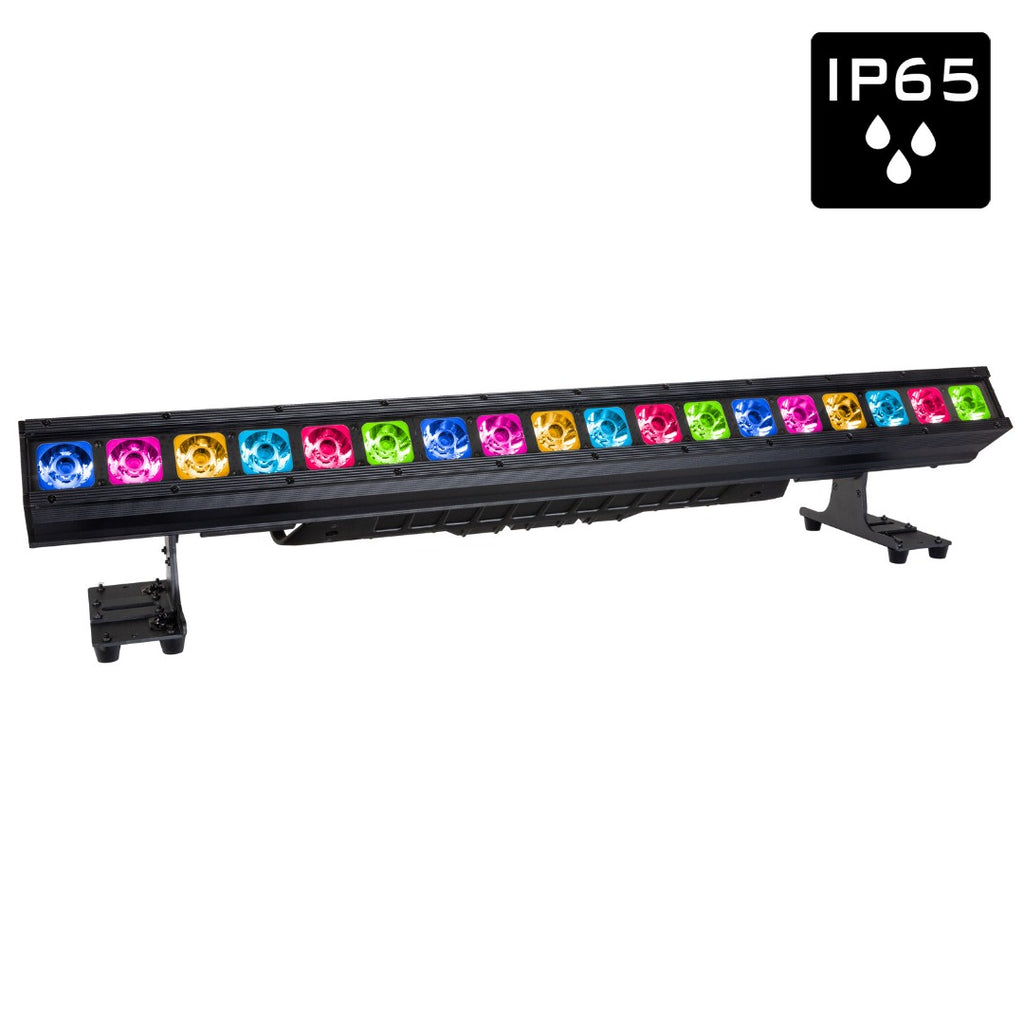

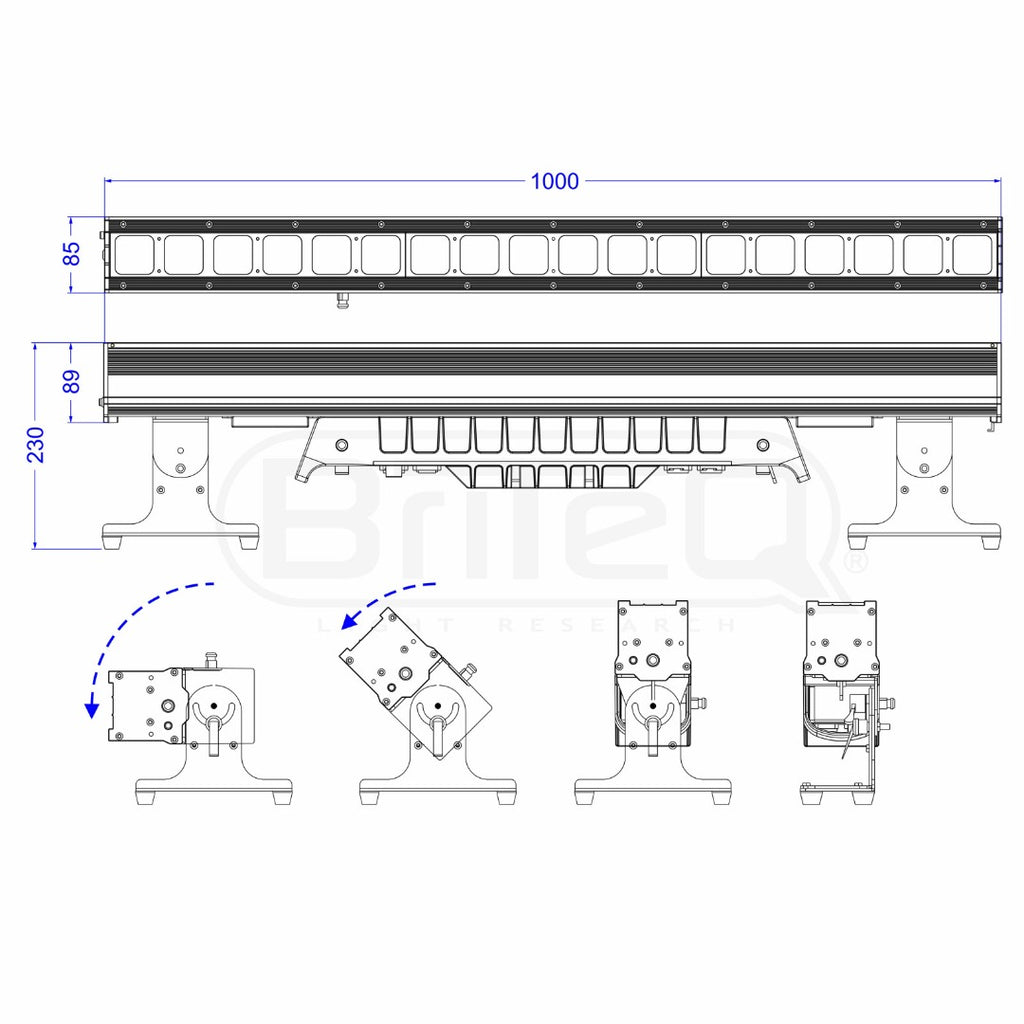

BTI-BEAMBAR18 is a very versatile 1m long outdoor LED Pixel mapping bar, excellent for many rental jobs, TV-studios, concert stages, discotheques and many more.

Equipped with 18 extremely effective 6° narrow lenses, in combination with powerful 25W RGBL LEDs.

IP65 protection for outdoor applications.

The optional magnetic frost filter transforms the fixture into a nice wash light.

Full pixel control through an intuitive effect engine or through DMX, Art-Net or sACN.

11, 20, 24, 76 or 96 DMX channels + RDM-functionality for easy remote setup.

Smooth 16bit dimming with adjustable speed and 3 different curves.

Build-in CCT presets from 1700K to 8000K.

Led refresh rate selectable between 1200Hz and 25000Hz.

Quick-lock system to easily mount the projectors horizontally or vertically together.

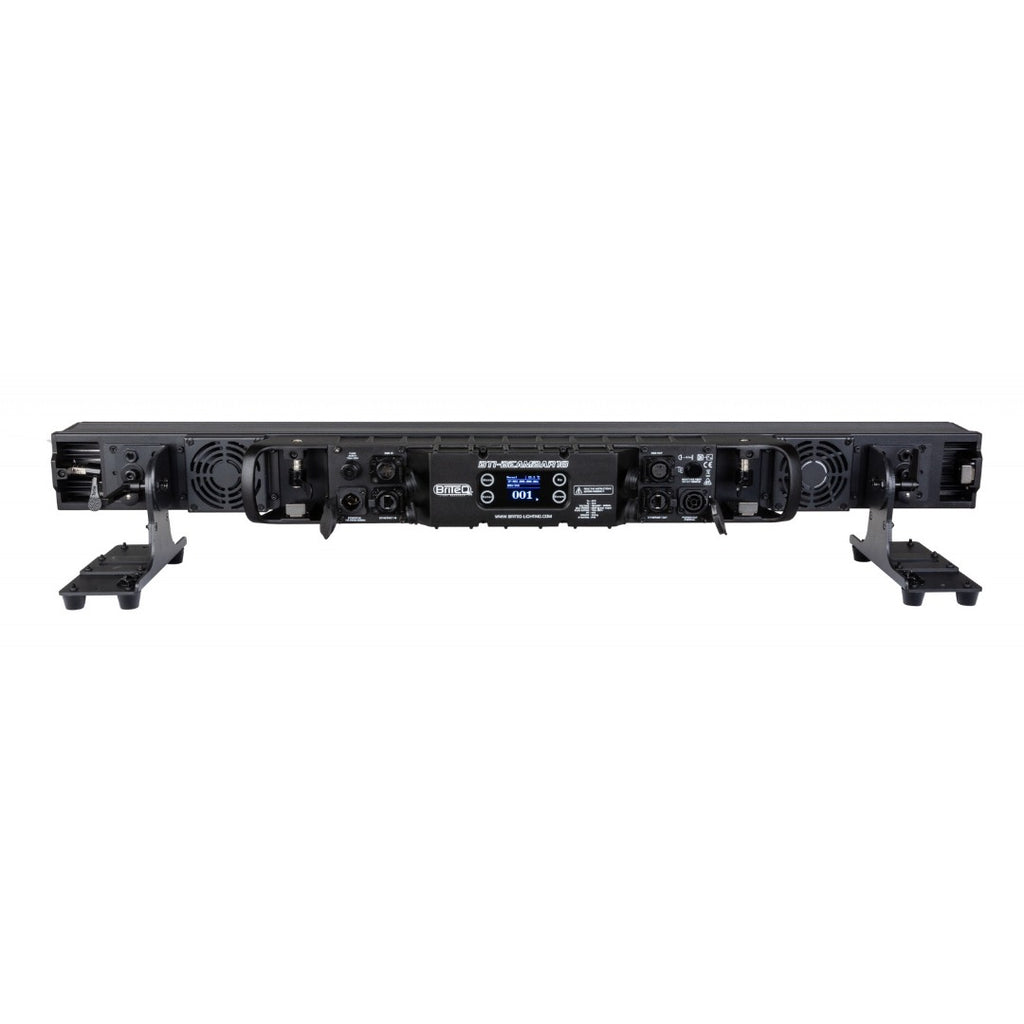

OLED display with touch buttons for easy navigation.

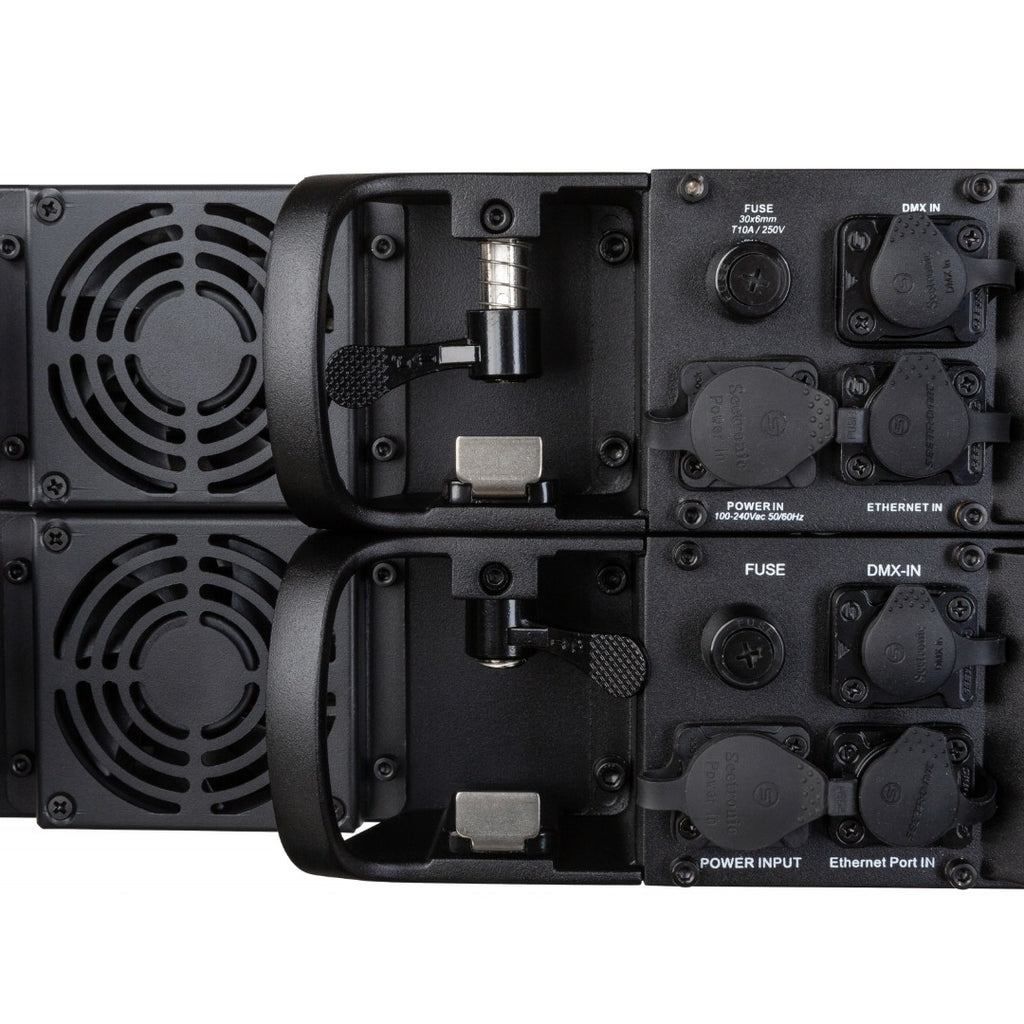

Seetronic IP65 5pin XLR connectors, can be converted to 3pin XLR with our BT-XLR5TO3 kit.

Seetronic IP65 RJ45 connectors for Art-Net and sACN connectivity.

Build in Art-Net to DMX conversion.

Seetronic IP65 TRUE1 compatible power in/outputs.

Software updates through standard RJ45 cable.

Strong tilt brackets with (included) omega brackets for fast installation.
