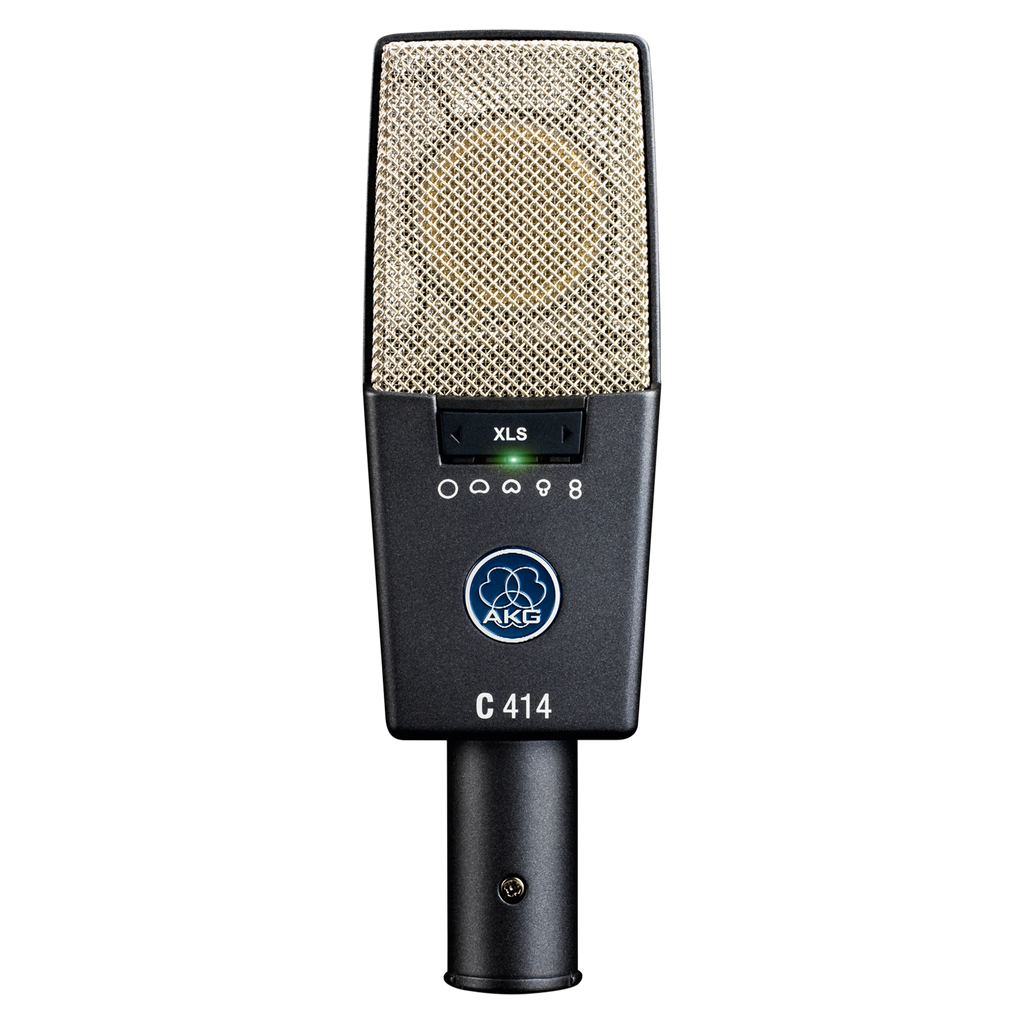

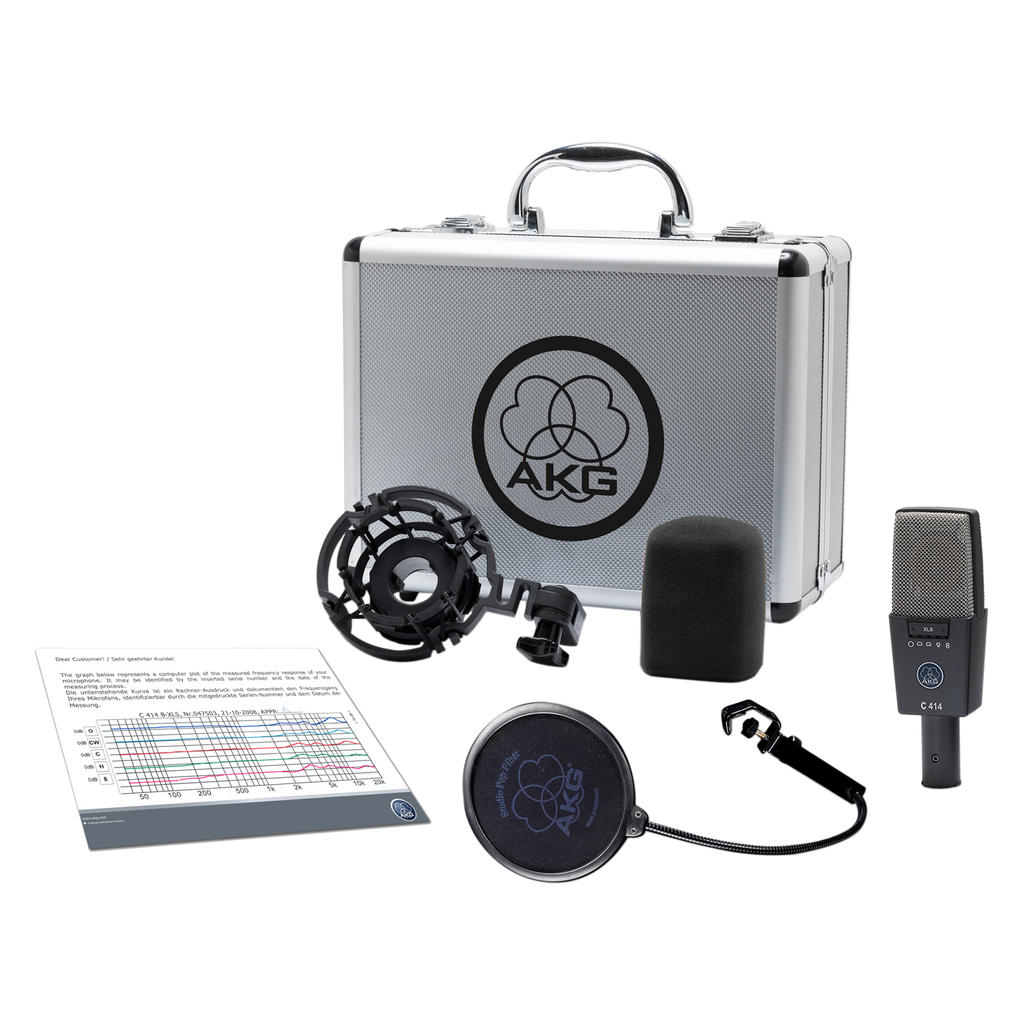

C414 XLS/ST AKG - large diaphragm microphone stereo set

A legend since 1971

The C414 XLS multipattern condenser microphone offers a choice of nine polar patterns for the perfect sonic capture for every application. A peak hold LED displays even the shortest overload peaks. For live sound applications and permanent installations, all controls can easily be disabled for trouble-free use.

The C414 XLS maintains the sonic character of the legendary C414 B-ULS, the most popular AKG C414 version since 1971. Engineered for highest linearity and neutral sound, it has been the most versatile large-diaphragm microphone for decades.

General Specifications:

• Audio frequency bandwidth:20 - 20000 Hz
• Equivalent noise level:6 dB-A
• Sensitivity:23 mV/Pa
• Signal to Noise:88 dB-A
• Preattenuation Pad:-6; -12; -18 dB
• Bass cut filter:160; 80; 40 Hz
• Electrical impedance:200 Ohms
• Recommended load impedance:2200 Ohms
• Polar Patterns:Cardioid, Figure of eight, Hypercardioid, Omnidirectional, and Wide Cardioid

Dimensions:

• Length:38 mm
• Width:50 mm
• Height:160 mm
• Net Weight:300 g

Design:

• Finishdark gray/silver

Audio Output:

• TypeBalanced XLR
• GenderMale
• Contacts3-pin

Powering Interface:

• Voltage44 to 52 V
• Current4.5 mA

Application:

• Pro StudioYes

Instrument:

• VocalsYes
• Piano / StringsYes
• Horns / Woodwinds
