CALI660II/W Audac Ceiling Speaker (White)
CALI660II/W Audac Safelatch 2-way 6.5" Ceiling Speaker with TwistFix Grill (White)

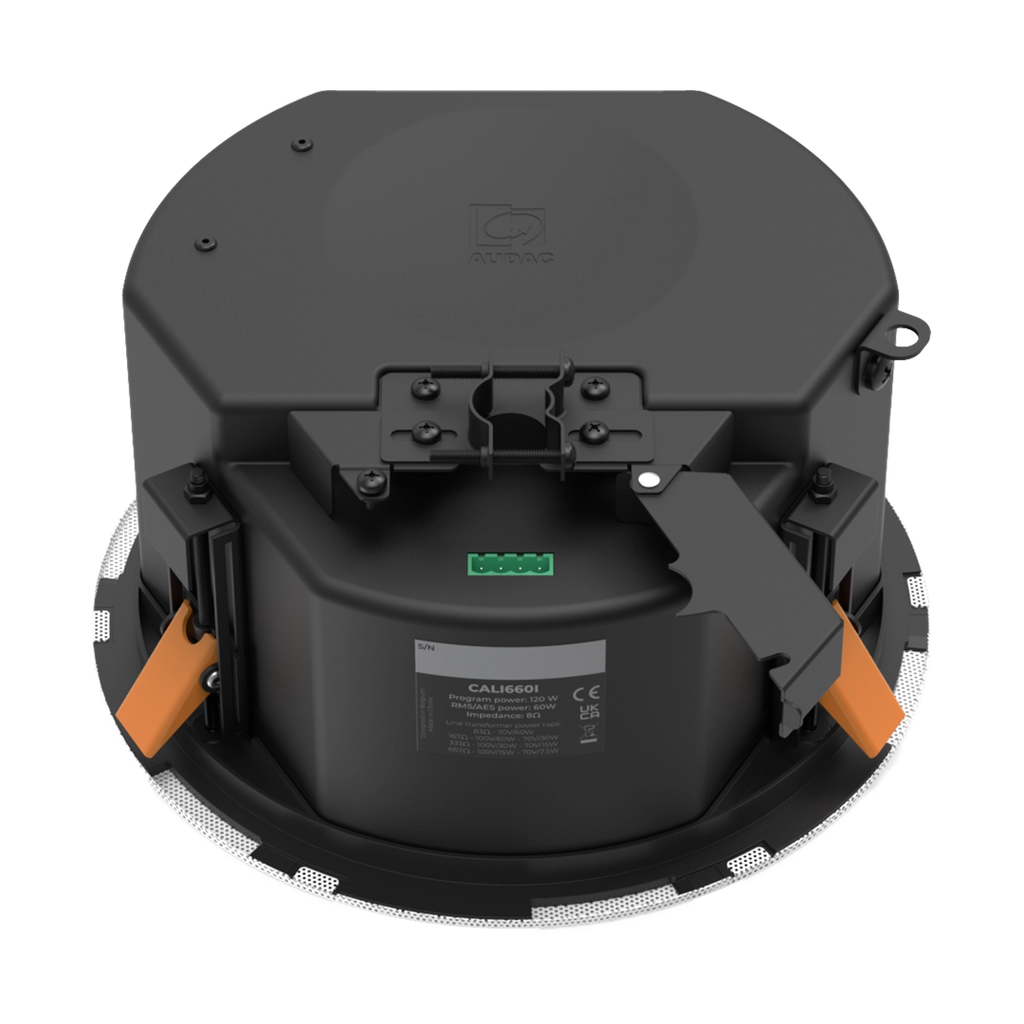

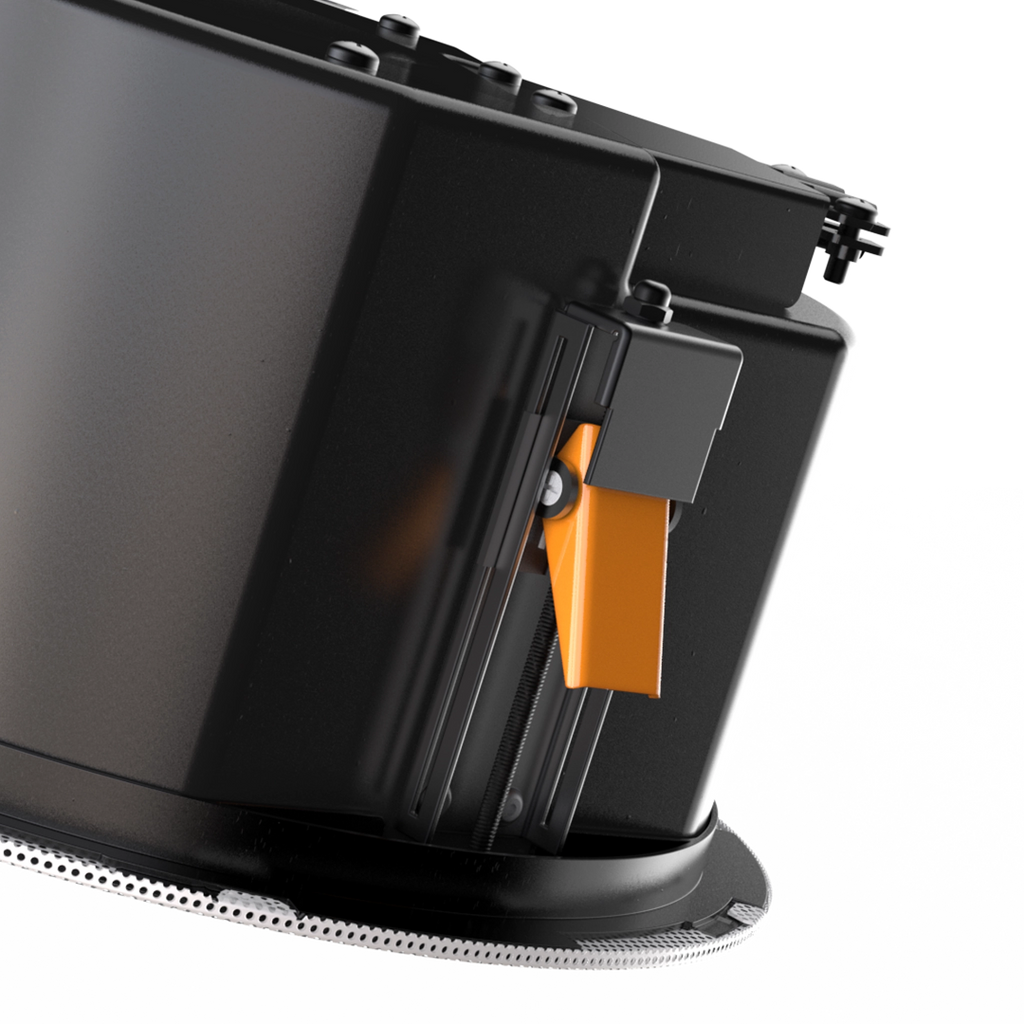

- Secure SafeLatch™ system
- Excellent off-axis performance (up to 120°)

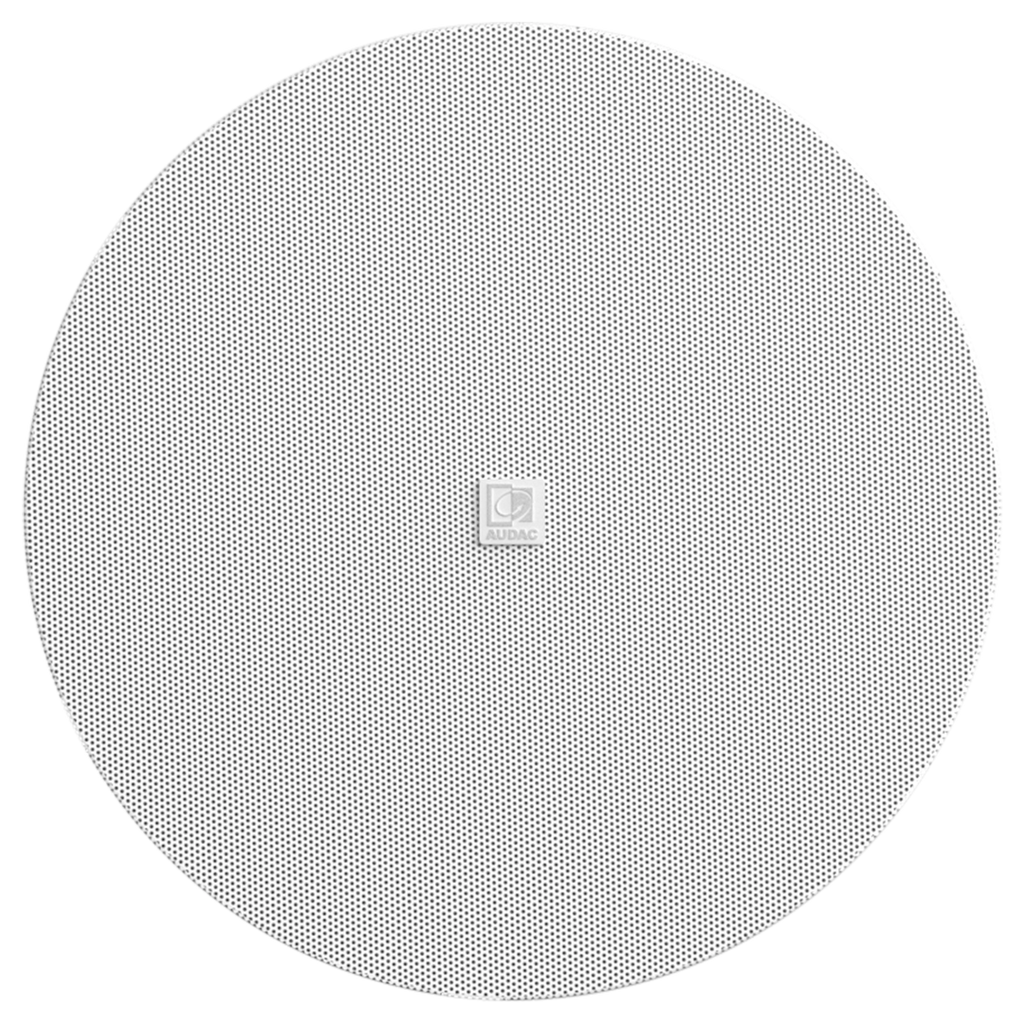

- Unique TwistFix™ grill design
- Borderless grill design
- Rotary switch for 16W, 32W, 64W and an 8 Ohm tappings
- Terminal block connection
- Shallow built-in depth (132 mm)
- Mu...
Delivery
S2Store Genk (BE)
Plus- en minpunten
Omschrijving
CALI660II/W Audac Ceiling Speaker (White)
CALI660II/W Audac Safelatch 2-way 6.5" Ceiling Speaker with TwistFix Grill (White)
- Secure SafeLatch™ system
- Excellent off-axis performance (up to 120°)
- Unique TwistFix™ grill design
- Borderless grill design
- Rotary switch for 16W, 32W, 64W and an 8 Ohm tappings
- Terminal block connection
- Shallow built-in depth (132 mm)
- Multi-tapping 70V / 100V line transformer

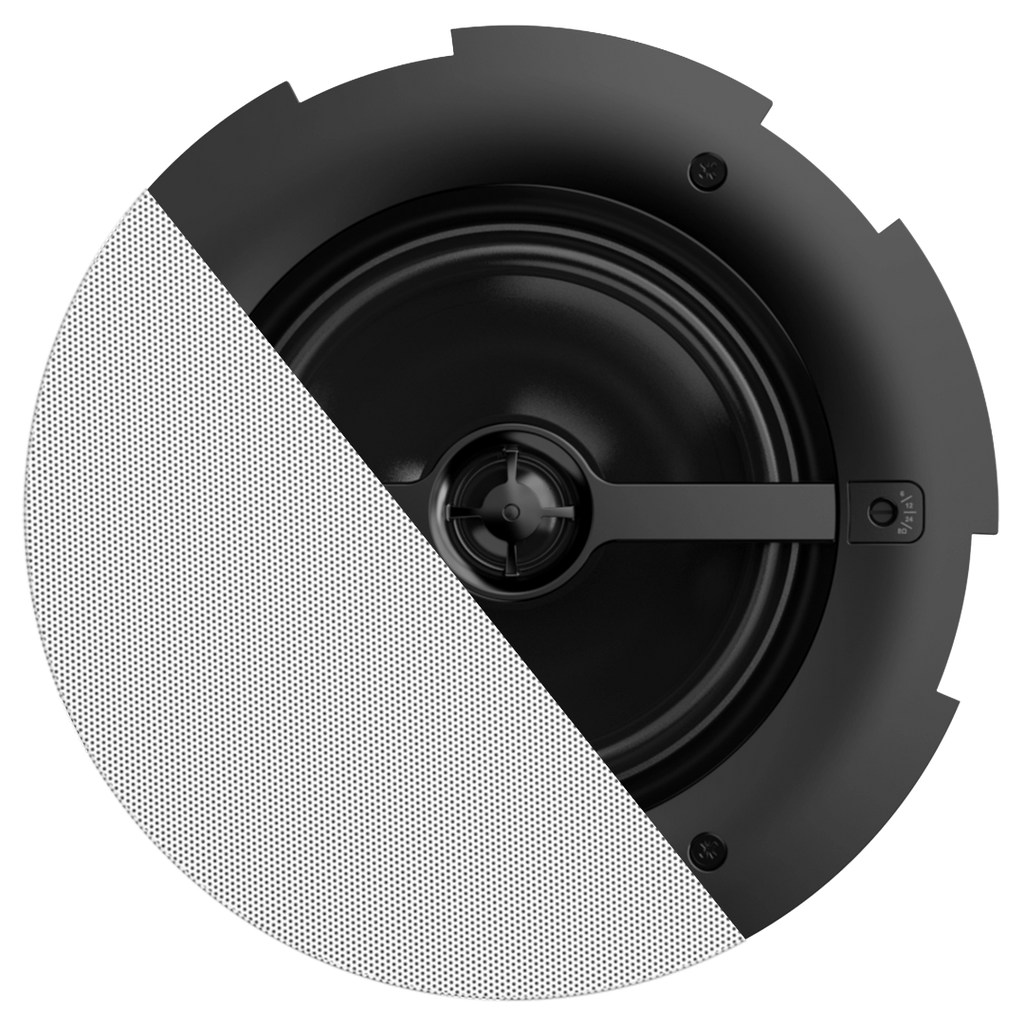

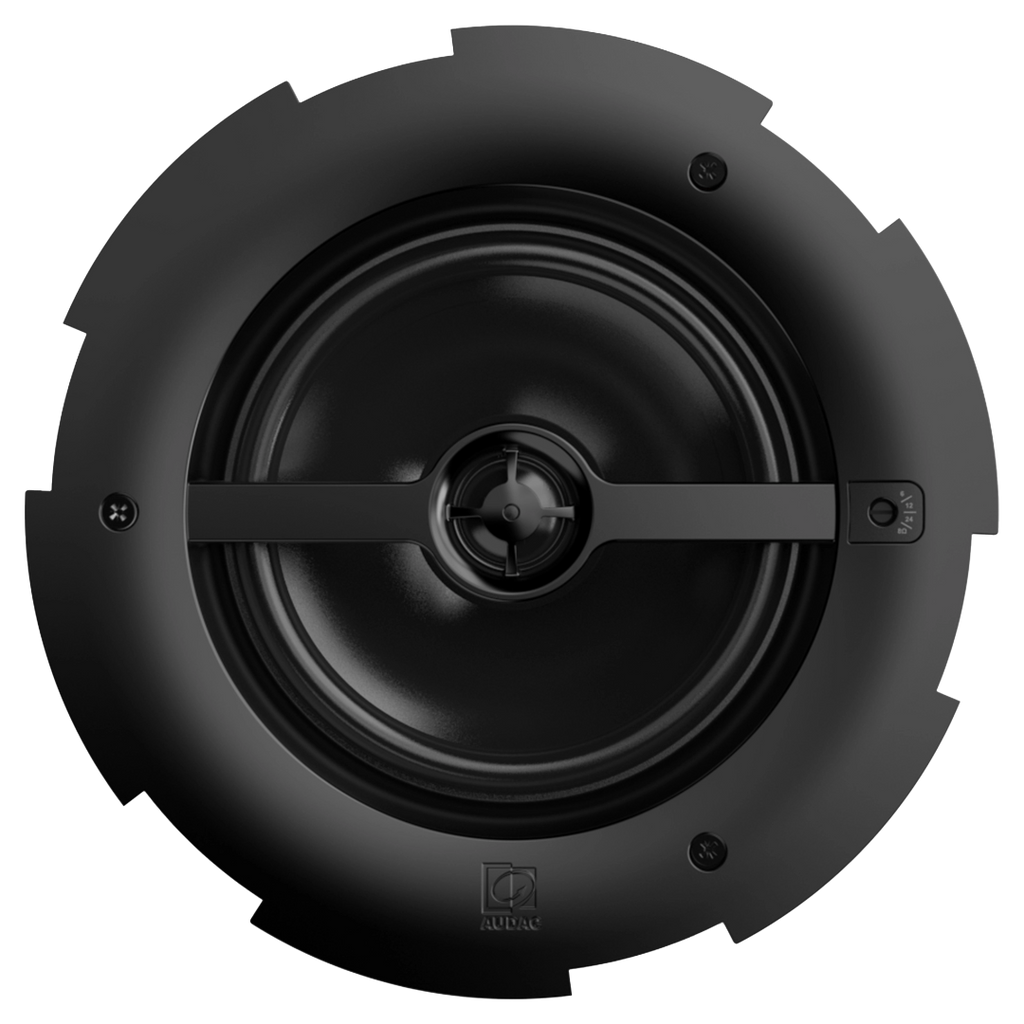

The CALI660 is a 2-way ceiling speaker with rear dome, constructed using a 6.5” cone driver, combined with an coaxially mounted 1” soft dome tweeter which is fitted with a phase plug for excellent off axis performance up to 120°.
The 2-way construction combination with metal rear-dome guarantees premium performance for demanding applications. A continuous power handling of 60 Watt (RMS) and maximum power handling of 120 watt is achieved, while fitted with a rotary switch for tapping of the 70/100V line transformer with tappings for 60W, 30W, 15W and an 8 Ohm bypass connection.
What is new with CALI660II?
An enhanced weatherproof and humidity-proof coating on the speaker cone, making them even more durable for challenging open-air environments. When combined with the GLI optional grills, these updated CALI models now receive our official WeatherTreated outdoor rating, giving you full confidence in any installation.
Korte specificaties
| Housing | |
|---|---|
| Dimensions | 242 x 138 mm (cut-out 220mm / inbouwdiepte 132 mm) |
| Weight | 3.42 kg |
| Sound | |
|---|---|
| Frequency response | 90 Hz - 20 kHz (± 3 dB) |
| Frequency range | 70 Hz - 20 kHz (-10 dB) |
| Sensitivity | 90 dB (1 W/1 m) |
| Beam angle | 120° |
| Transformer tapping | 1 83 Ω - 100 V / Not used - 70 V / 60 W 2 167 Ω - 100 V / 60 W - 70 V / 30 W 3 333 Ω - 100 V / 30 W - 70 V / 15 W 4 667 Ω - 100 V / 15 W - 70 V / 7.5 W |
| Power | |
|---|---|
| Max SPL sound pressure level | 108 dB |
| Peak power | 240 W |
| Cable | |
|---|---|
| Operating temperature | -20 °C ~ 60 °C |
| Connectors | Terminal block connector met link-through |
| Features | |
|---|---|
| IP ingress protection rating | IP56 (optionele GLI grill voor langdurig buitengebruik) |
| Speaker type | 2-weg Coaxiaal |
