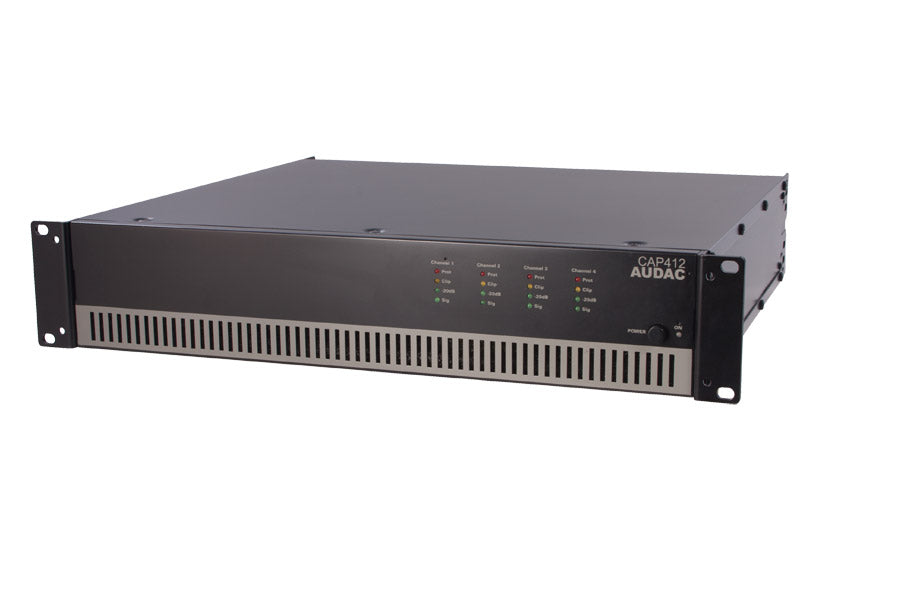

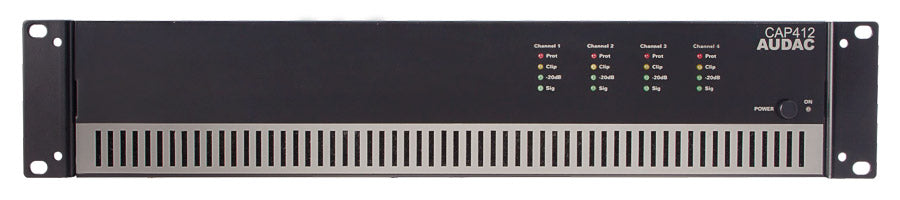

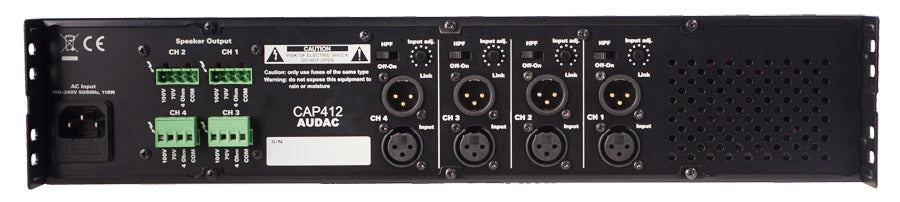

CAP412 AUDAC Quad Channel 100V Power Amplifier

The CAP412 is a professional four channel 100V power amplifier which is capable of providing 120 Watt to each of the four separate output channels. This creates a great flexibility and new possibilities for installed Multi-Zone audio distribution systems. It is designed as a no-nonsense amplifier with only the necessary controls and connections, which creates great simplicity in use and installation. Every output channel contains different power taps to be used in 100 Volt, 70 Volt and even 4 Ohm low impedance applications, and the input signal connections are performed using balanced XLR connectors, allowing link through to other amplifiers. Besides all the desired connection possibilities, the CAP412 also offers a gain control potentiometer and a high-pass filter switch (400Hz) on the back of the unit. A built-in multipurpose protection circuit protects against DC malfunction, short circuit, overheating, overload, and limits the signal when necessary. This all is built into a double rack space, steel 19” housing.

Features

• Four channel 100V Power Amplifier
• 4 x 120 Watt output
• Class-D Technology
• 100V / 70V High Impedance outputs
• 4 Ohm Low Impedance outputs
• High Efficiency
• High pass filter switch

Specifications

• RMS Power: 4 x 120 Watt
• Power Supply: 100~240V AC / 50~60 Hz
• Frequency Response: 50 Hz - 22 kHz
• Dimensions ( W x H x D ): 482 x 88 x 420 mm
• Total Harmonic Distortion + Noise: < 0.3 %
• Weight: 14,8 kg
• Signal Noise: > 100dB
• Output Voltage: 70V / 100V
• Impedance: 4 Ohm
