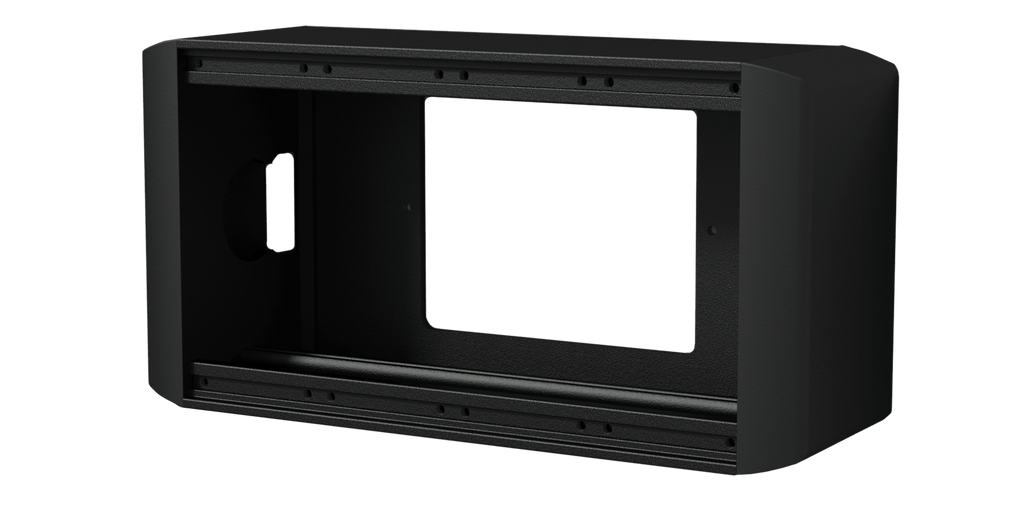

CASY034/B Caymon On-Wall Chassis - 4 Space

The CASY034 is a modular on-wall chassis which can be fitted with 4 modules from the CASY range. The flexible and modular structure ensures a maximum versatility, allowing to adapt the system to each project's specific requirements. Possibilities are ranging from audio, video and data interconnection to power distribution, control panels, power supplies and many more.

The aluminum construction features pre-threaded hole inserts allowing module installation with a maximum of 4 units with a built-in depth up to 60 mm. It can be mounted on any wall or surface, while cable entry is possible through large access holes on the rear side. The sides are constructed out of ABS material with break-out points allowing cable entry through a duct or gland. Modules can be fixed inside the unit using the included M3 screws. The overall construction is finished in a black (RAL9004) structured and scratch resistant powder coating.

Highlights

• Wide variation of compatible modules available
• 60 mm usable depth
• Pre-threaded mounting profile for easy assembly
• Structured and scratch resistant black powder coating
• Aluminum extruded construction with rounded ABS sides
• Stores 4 units of CASY modules
• Flexible system for system integration & connectivity
• Provided cable gland entry
