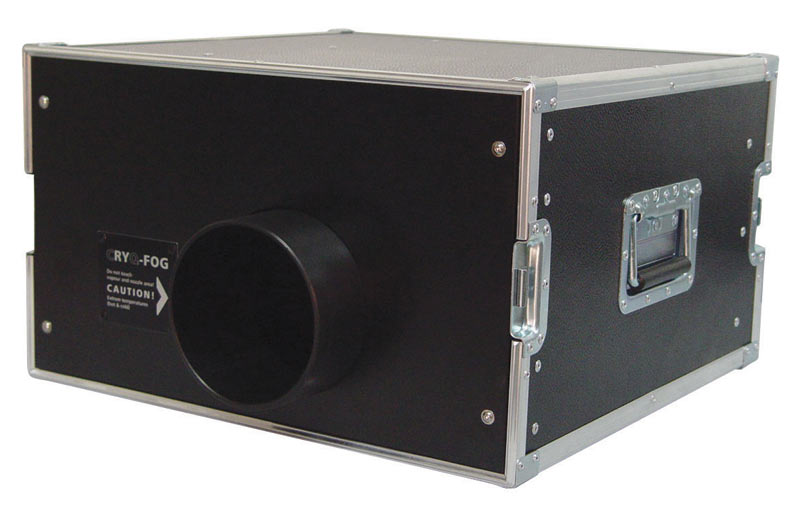

The CRYO-FOG is a powerful low fog machine. A fog generator, a fan and a cooling chamber build into a compact flightcase (67 x 51 x 30 cm) with space next to the fog generator to held a 5ltr can of fluid.

This machine is powerful enough to fill even big stages with low fog within a short time. The liquid CO 2 is delivered from a low pressure tank (20 - 24 Bar), which is connected to the machine via a hose. For more information about our low for generator that can be used with high pressure bottles, see CRYO-FOG High Pressure. The intelligent technology ensures that the fogging process will not start before the cooling chamber has reached the right temperature. As a result, no "warm" fog - which will go upwards - can escape from the machine. The CRYO-FOG benefits from its compact size, the low weight, the powerful output, the low noise and the easy operation.

ADVANTAGES:

• Fog generator, fan and cooling system in a compact case
• DMX as standard, analogue (0 - 10V) and stand-alone-Mode
• In the DMX-Mode the pump, the fan and the CO 2-valve can be adjusted separately
• Can be used as a "normal" fog generator in DMX-Mode
• Low fogging process starts automatically only if the cooling chamber has reached the right temperature
• Easy handling
• Powerful output
• Fogging output adjustable in steps of 1% from 0 - 99%
• Continuous output
• Easy bottle changing with quick-out connectors
• Made in Germany

TECHNICAL INFORMATION:

• Power requirement: 2200 Watt
• Voltage: 230V/50Hz
• Warm up time: approx. 7 min.
• Fluid consumption at max. output: at 50% output, 100 ml/min. 40 ml/min.
• Liquid CO2 consumption at max. output: 2 kg/min.
• Fluid tank capacity: 5 liter
• Fog output: adjustable in 99 steps
• Fogging time: continuous output
• Control: DMX 512, 0 - 10 V analog Stand-alone-Mode
• Temperature control: Microprocessor controlled
• Overheating protection: Heater block/Thermostat Pump/Thermal switch
• Dimensions (L x W x H): 67 x 51 x 30 cm
• Weight without bottle: 28 kg
