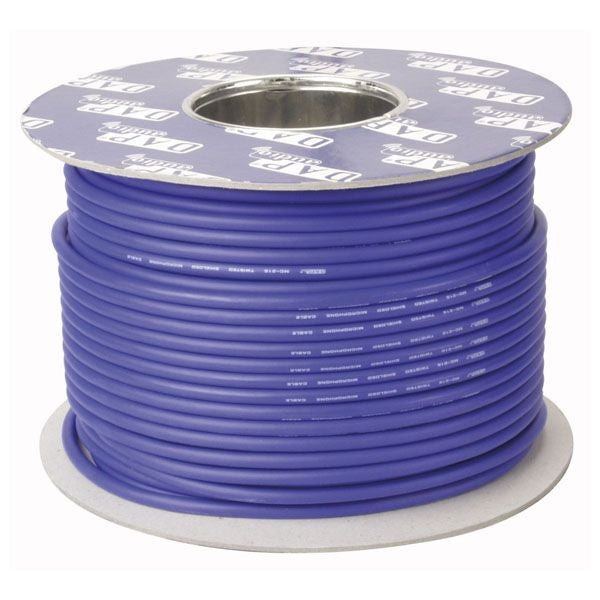

DIG-110 AES-EBU 110 OHM DIGITAL CABLE 100M - DAP-AUDIO (Blue)
Regular price
€135,00
Unit price
per
D9433U - DAP DIG-110 AES-EBU - Blue 110 Ohm Digital Cable, 100 m on spool
- Conductor drains Ø mm OFC 18 x 0,10
- Conductor insulation FPE red+white
- Conductor insulation Ø in mm 1,9
- Filler material paper + cotton yarn
- 1st shield OFC braided 128 x 0,12
Ca. 3-7 werkdagen
Delivery
Available
S2Store Genk (BE)
Available
Plus- en minpunten
Omschrijving
DIG-110 AES-EBU 110 OHM DIGITAL CABLE 100M - DAP-AUDIO (Blue)
D9433U - DAP DIG-110 AES-EBU - Blue 110 Ohm Digital Cable, 100 m on spool
- Conductor drains Ø mm OFC 18 x 0,10
- Conductor insulation FPE red+white
- Conductor insulation Ø in mm 1,9
- Filler material paper + cotton yarn
- 1st shield OFC braided 128 x 0,12
- 2nd shield -
- Outer isolation PVC black+blue
- Outer isolation Ø in mm 6
- Conductor resistance 130 Ohm/Km
- Shield resistance 12.5 Ohm/Km
- Capacity Inner conductor 20 pF/m
- Cap. Inner conduct Shield / Inner conduct. 65 pF/m
- Working temperature -20~60 °C (min. / max.)
- Working Voltage overflash 30V
- Nom Impedance 110 Ohm
Korte specificaties
| Cable | |
|---|---|
| Conductor gauge | OFC 18 x 0,10 |
| Operating voltage overflash | 30V |
| Operating temperature | Min: -20, Max: 60 °C |
| Outer jacket | PVC zwart + blauw 6 mm doorsnede |
| Conductor resistance | 130 Ohm/Km |
| Cable length | 100m |
| Nominal impedance | 110 Ohm |
| Fill material | papier + katoen garen |
