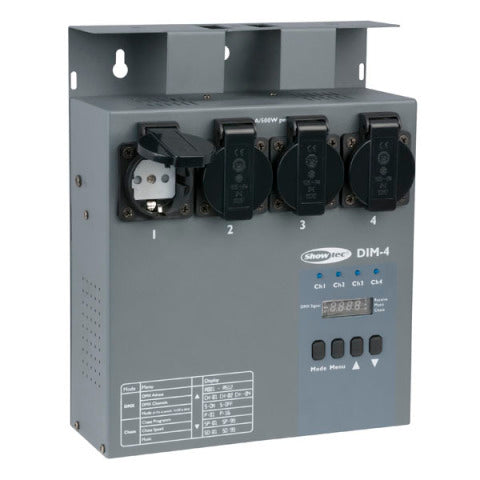

Showtec DIM-4

4 Channel 3A per channel Dimming Pack

The DIM-4 is a compact but powerful dimming pack. It has 4 channels which each can be loaded up to 3A Each. With a total power consumption of 8A this dimming pack can fit any socket. The DIM-4 can be fully controlled by DMX but has as well an built in chaser as well a sound-control function. Furthermore the DIM-4 set can be set in a 1-channel, 2-channel or 4-channel mode.

Features

• Music-controlled

• Schuko Outlets

• DMX-512 4CH. Dimmer pack

• 16 built-in programs

• Stand-alone function

Specifications

• Input voltage: 230V/50Hz

• Channel Output: 3A / CH., Total 8A

• Control: DMX-512, Stand-alone, Music control

• DMX channels: 1,2 or 4

• Mode: Dim or Switch

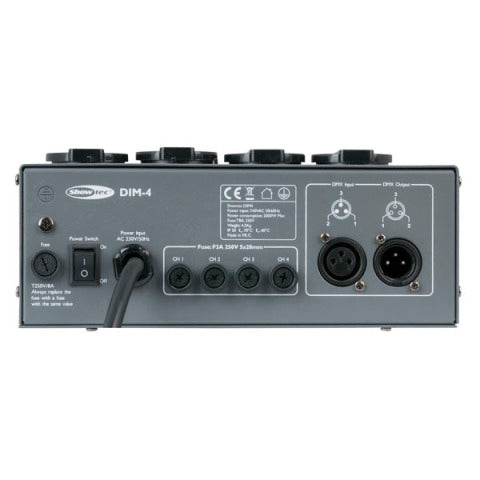

• Data in/out: 3 pole XLR

• Powerconnection: Shuko plug

• Poweroutput: Schuko chassis per channel

• Monitor: Control LED per channel, DMX signal led

• Dimensions: 220 x 82 x 275 mm (LxWxH)

• Weight: 3,5 kg
