DLP-48W Synq Professional digital loudspeaker management processor

4 inputs (DIGITAL AES + analog) and 8 analog outputs with full matrix routing capability

Direct access to 3 programmable default settings

The 4 inputs have:

• 8 Band equalizer (parametric, high shelf, low shelf)
• Delay (adjustable up to 1000ms (= 346m)
• Noisegate
• Phase reversal
• Gain / mute:

All 8 outputs have

• Flexible source selection
• Crossover (Linkwitz/Riley, Bessel, Butterworth)
• 6-band equalizer (parametric, high shelf, low shelf)
• Delay (adjustable up to 1000ms [= 346m])
• Limiter
• Phase reversal
• Gain / mute

30 different speaker settings can be stored in memory

If necessary, the unit can be locked via a password

Simple parameter setting via PC:

• Via USB: simple setting but cable length limited to 5m
• Via LAN: long-distance operation for up to 250 units.
• Via WiFi: wireless operation

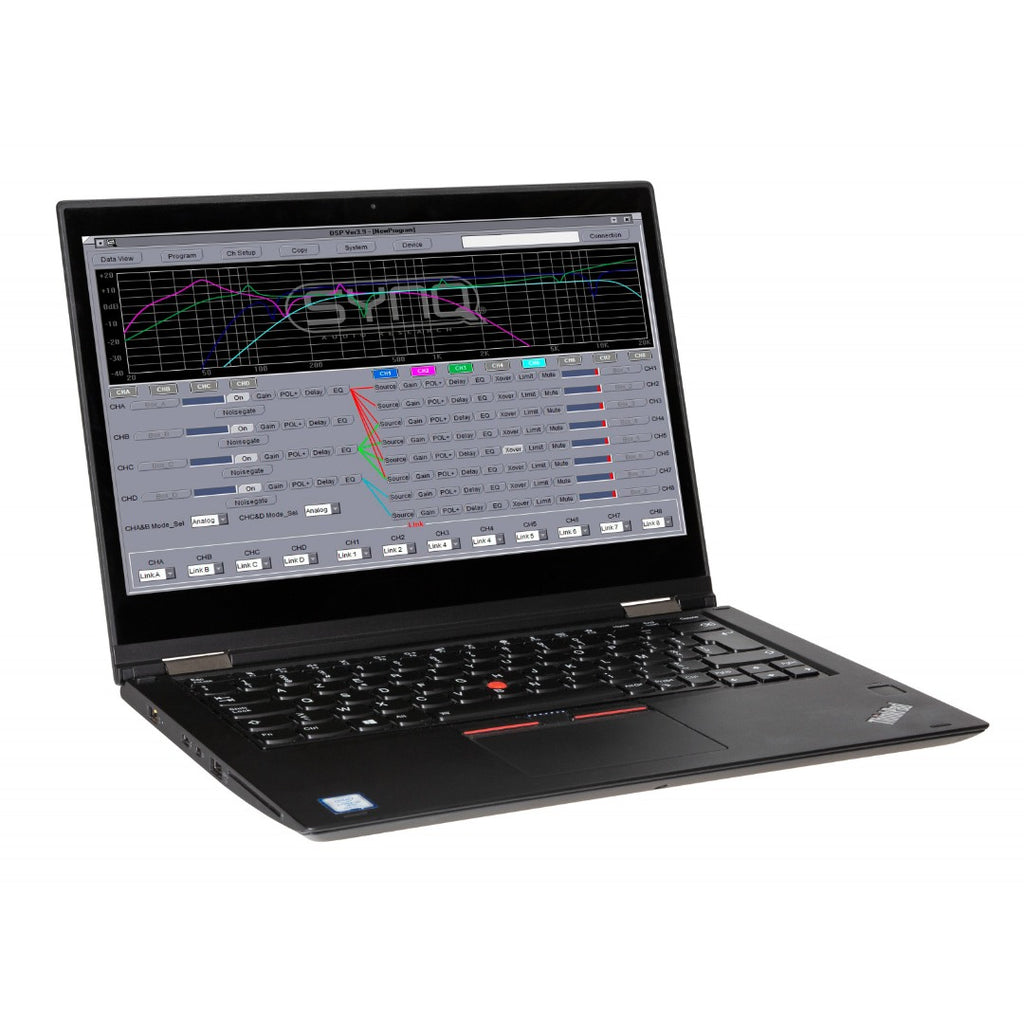

Complete Windows® software included with visually attractive and easy setup options.

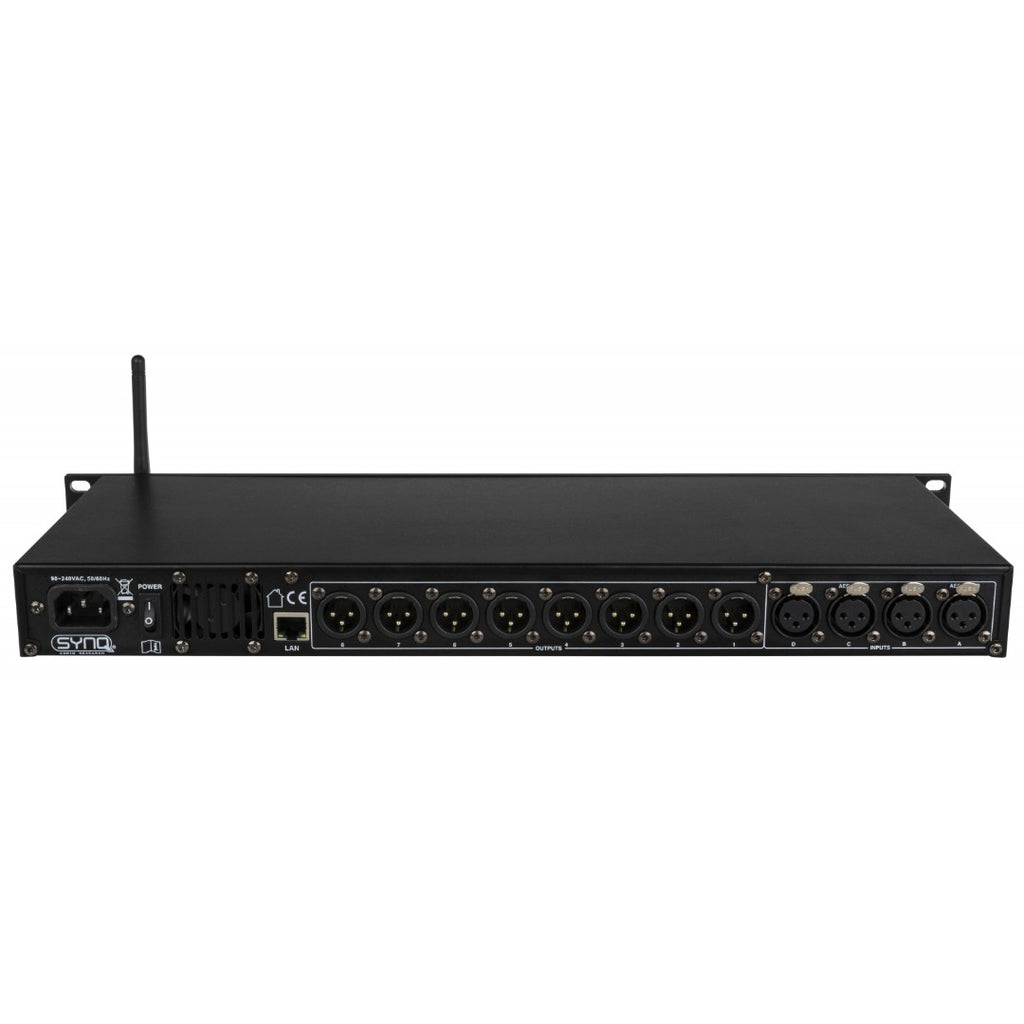

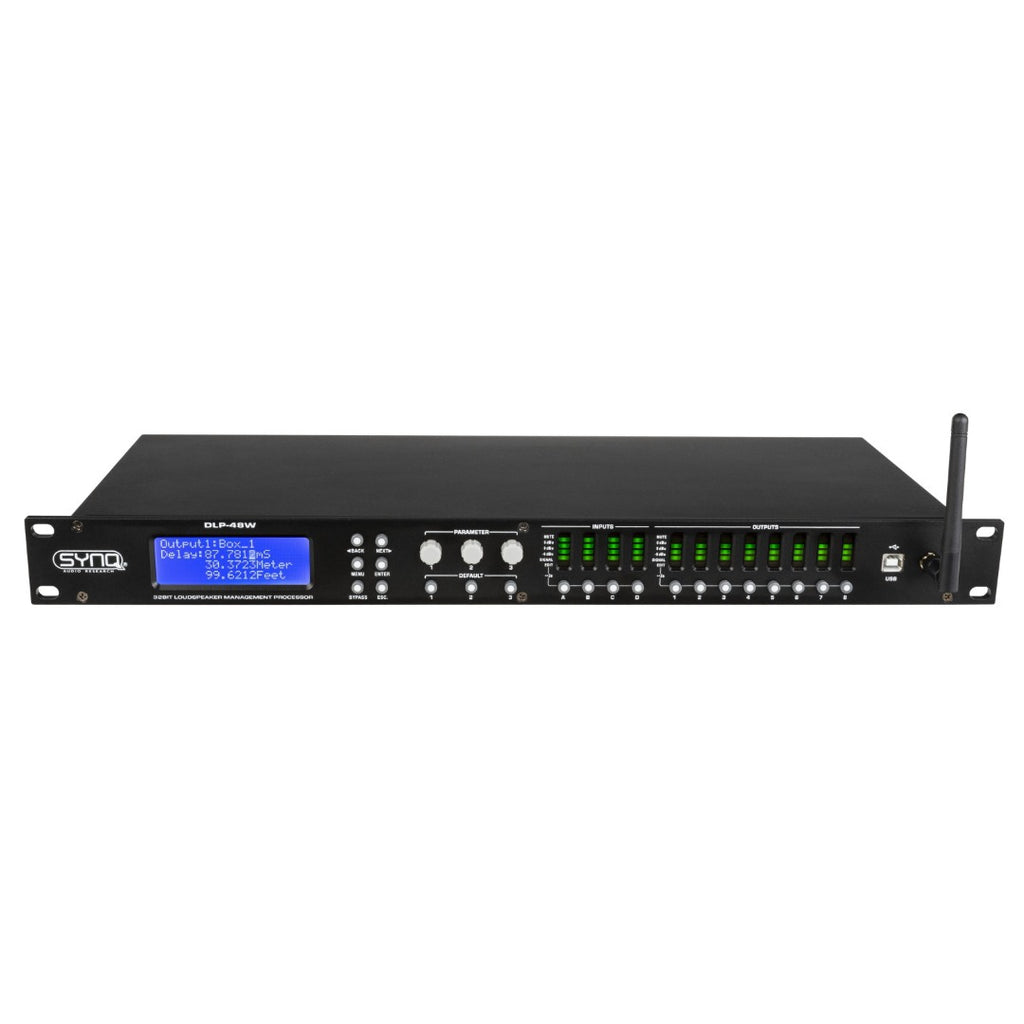

Clear LCD display. Balanced XLR inputs/outputs.
