DM7 Compact Yamaha Digital Mixing Console
DM7 Compact Yamaha Digital Mixing Console

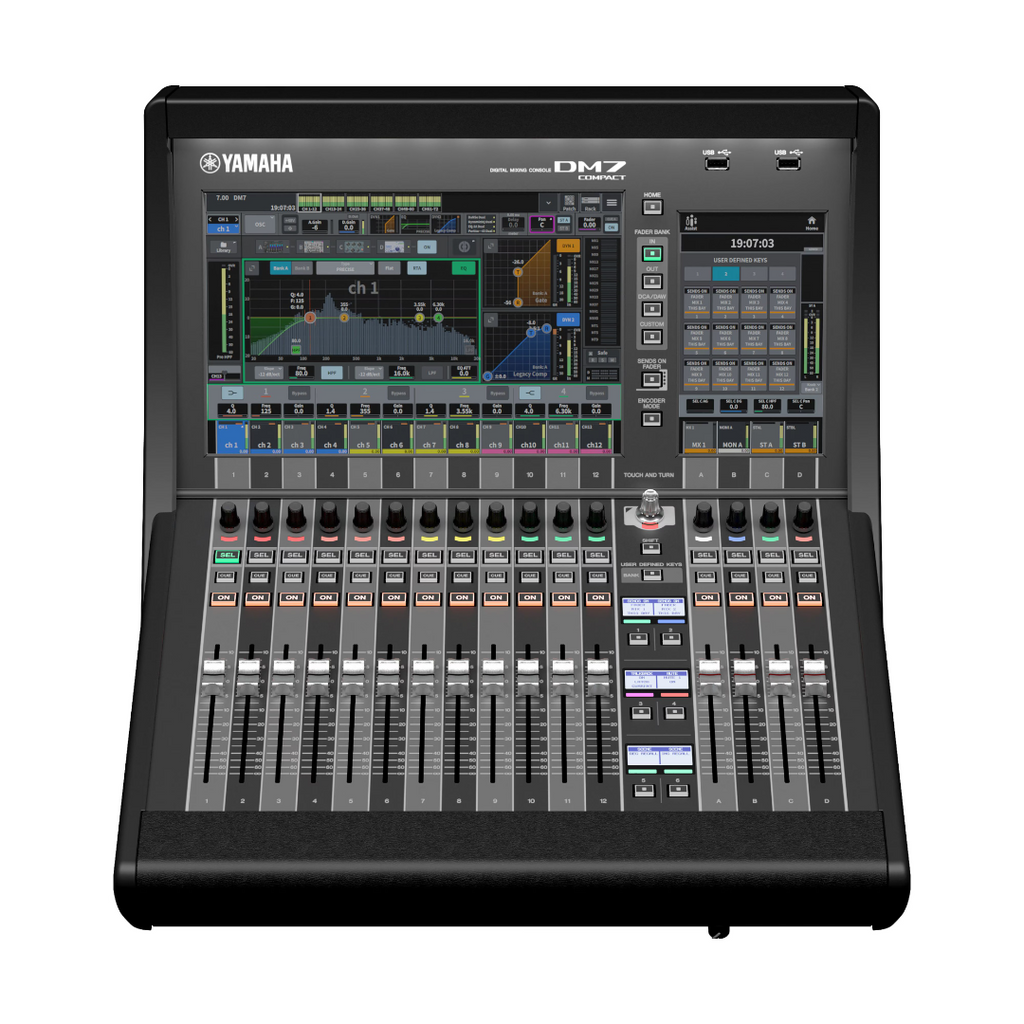

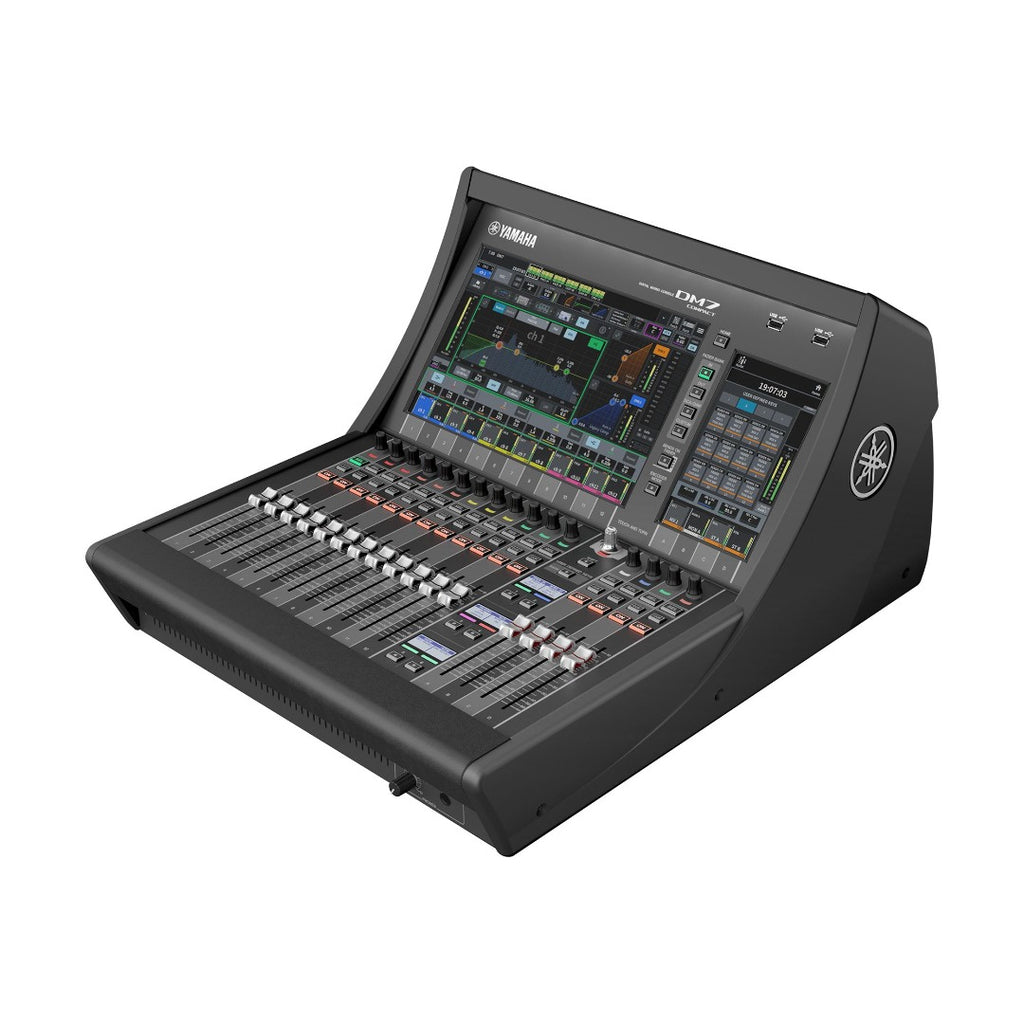

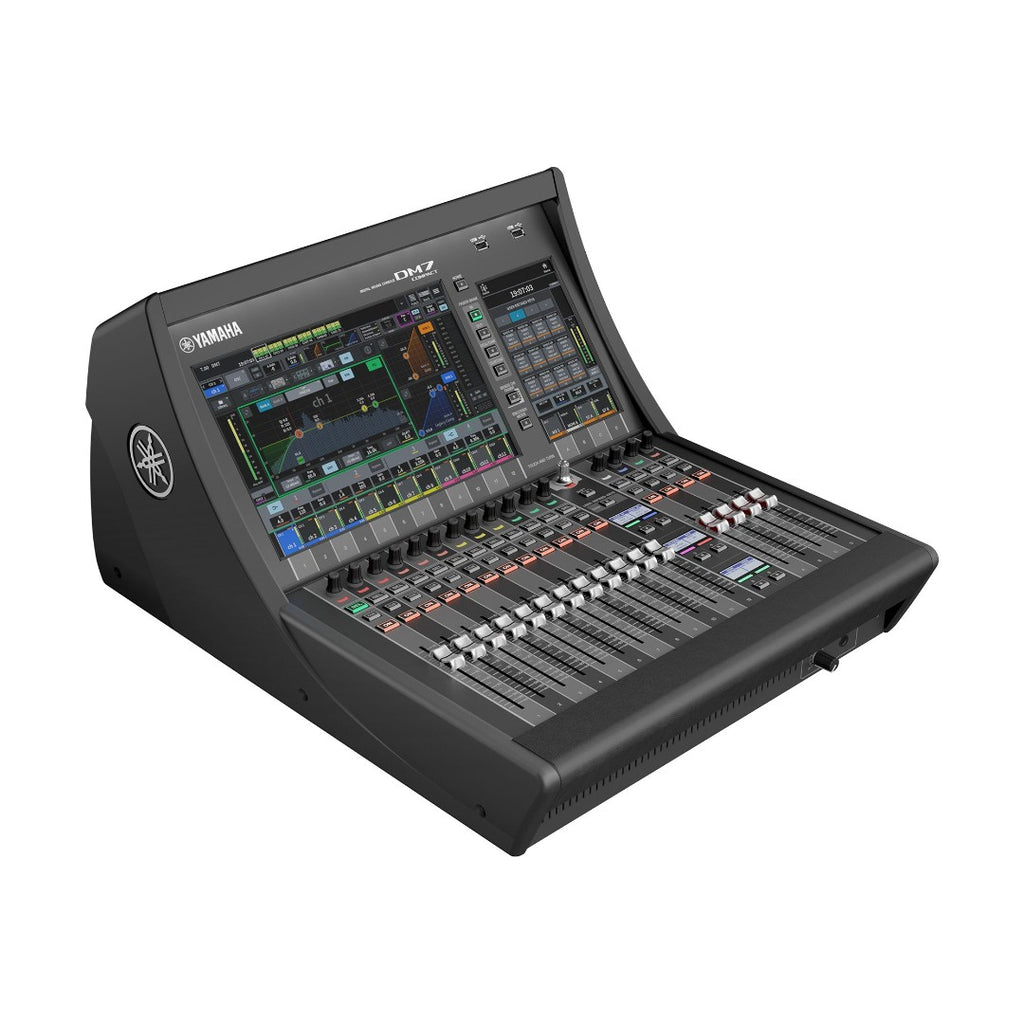

The DM7 Compact is a Dante-equipped versatile digital mixing console with unparalleled sound quality, ease of operation, and high reliability that make it perfect for a wide range of applications. The DM7 Compact is configured with 12 + 4 faders and a 1 x 12” + 1 x 7” multi-touch screen, and a rack-mountable with an optional RK1 rack mount kit.
- Input mixing channels: 72 mono
- Buses: 48 Mix + 12 Matrix + 2 Stereo
- Display: 12.1" multi-touch screen x 1, 7" multitouch screen x 1
- Faders: 16 (12 + 4)

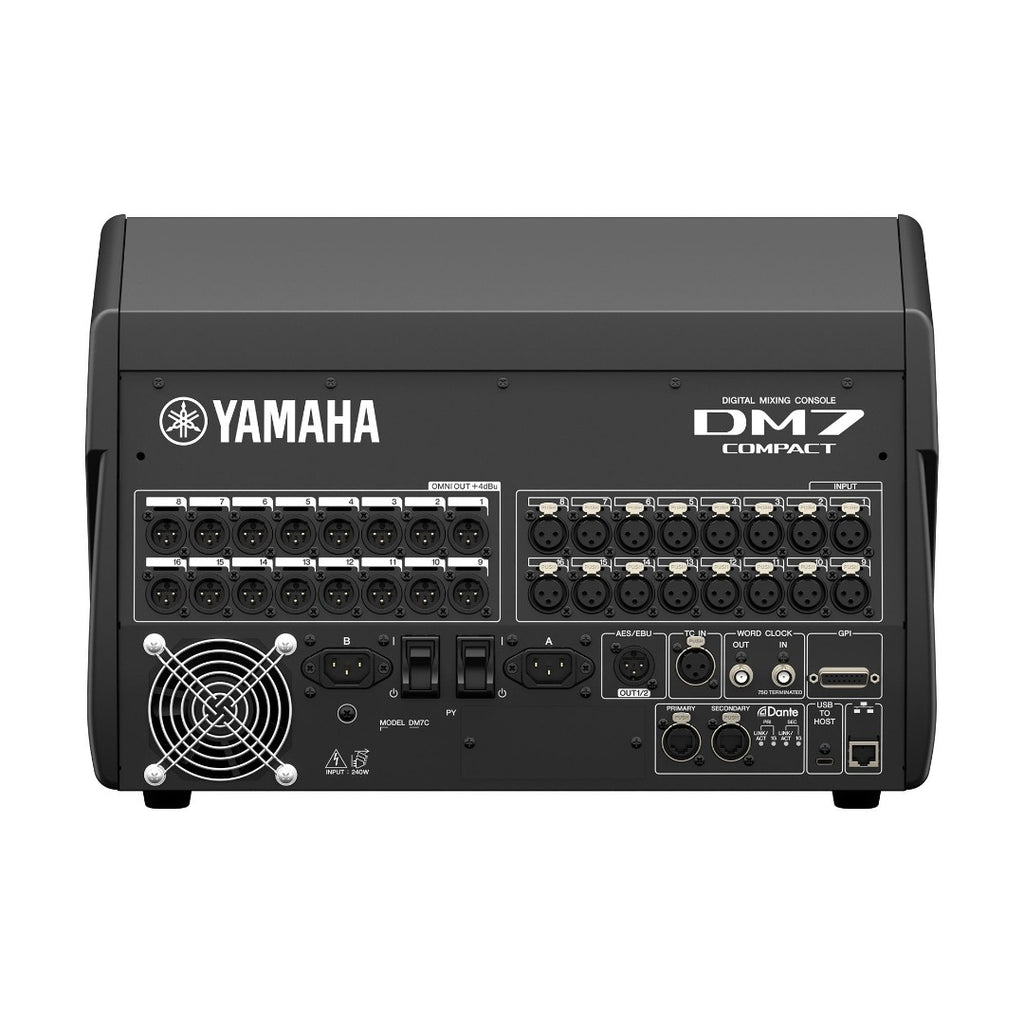

- Analog I/O: 16 inputs / 16 outputs
- Dante: 144 in / 144 out
- AES/EBU: 1 out
- Slot: PY Slot x 1
- USB Audio Interface: 18 in / 18 out
- Power supply: Redundant power supply built-in
Korte specificaties
| Housing | |
|---|---|
| Dimensions | 468 x 324 x 564 mm |
| Weight | 16.5 kg |
| Power supply | |
|---|---|
| Consumption | 240 W |
| Audio I/O | |
|---|---|
| Channels | Analog I/O: 16 inputs / 16 outputs |
| USB connection | |
|---|---|
| Number of input channels | 18 |
| Number of output channels | 18 |
