DMX MERGE SHOWTEC LICHTTAFEL.
Regular price
€135,00
Unit price
per
The Showtec DMX Merge allows you to combine two DMX controllers to one DMX line or to use a second desk as back-up desk.
The unit has 3 modes:
- HTP (High Take Precedence) In this case you can use two similar desks with the same addressing on one l...
Ca. 3-7 werkdagen
Delivery
Available
S2Store Genk (BE)
Available
Plus- en minpunten
Omschrijving
DMX MERGE SHOWTEC LICHTTAFEL.
The Showtec DMX Merge allows you to combine two DMX controllers to one DMX line or to use a second desk as back-up desk.
The unit has 3 modes:
- HTP (High Take Precedence) In this case you can use two similar desks with the same addressing on one line. The DMX channel with the highest value has priority.
- Back-up mode. The unit is connected to two DMX desks. Channel A has priority. Once channel A fails or has no DMX channel B takes over the show.
- Merge mode. Two desks can be merged on one line. E.g. you can run a scene setter and DMX operator on one line. The Scene Setter will operate on channel 1-96 and the DMX Operator will have the channels 97 and higher. These positions can be freely addressed by the dip-switches.
SPECIFICATIONS:
- Voltage: 230V
- Power Requirement: DC 9V, 300 mA Min. (AC/DC adapter included)
- DMX Input: two 3-pin XLR male sockets on the front panel

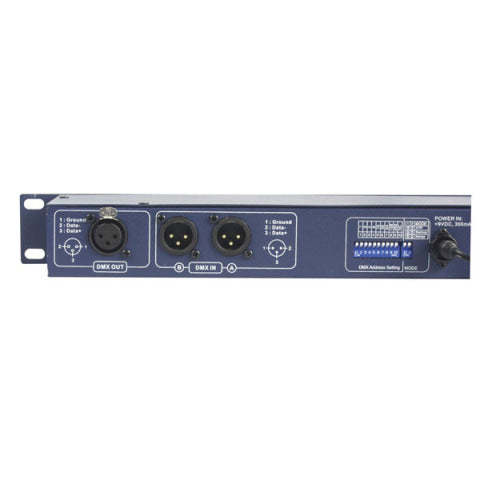

- Extra: two 3-pin XLR male sockets on the rear panel
- DMX output: two 3-pin XLR female sockets on the front panel
- Extra one 3-pin XLR female sockets on the rear panel
- Dimensions: 483 x 73 x 45 mm (LxWxH)
- Weight: 1,15 kg
