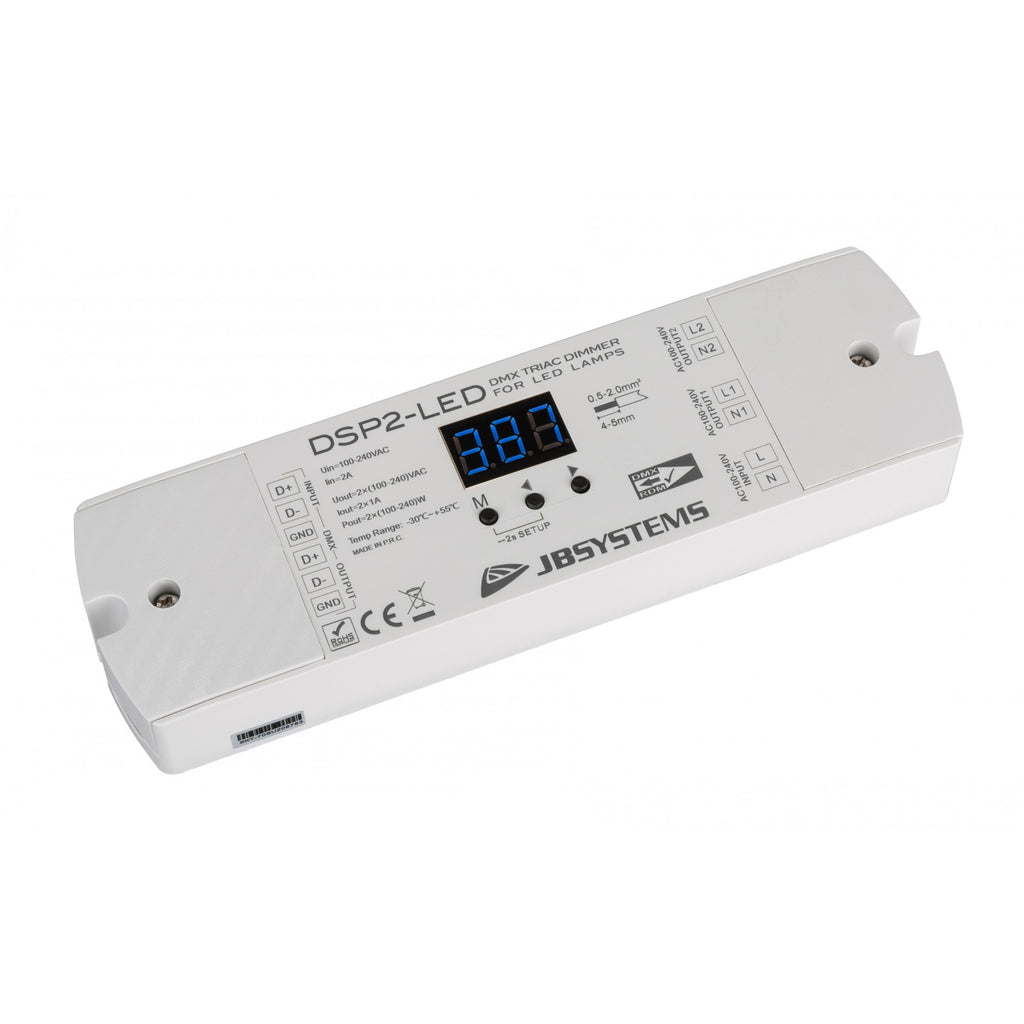

DSP2-LED MOSFET DIMMER JB SYSTEMS - 2 channel

• This 2 channel mosfet dimmer works perfectly with small loads like dimmable LED-lamps & small halogen lamps.
• Excellent dimming of 100-240Vac dimmable LED lamps and LED-drivers with loads down to only 2watt!

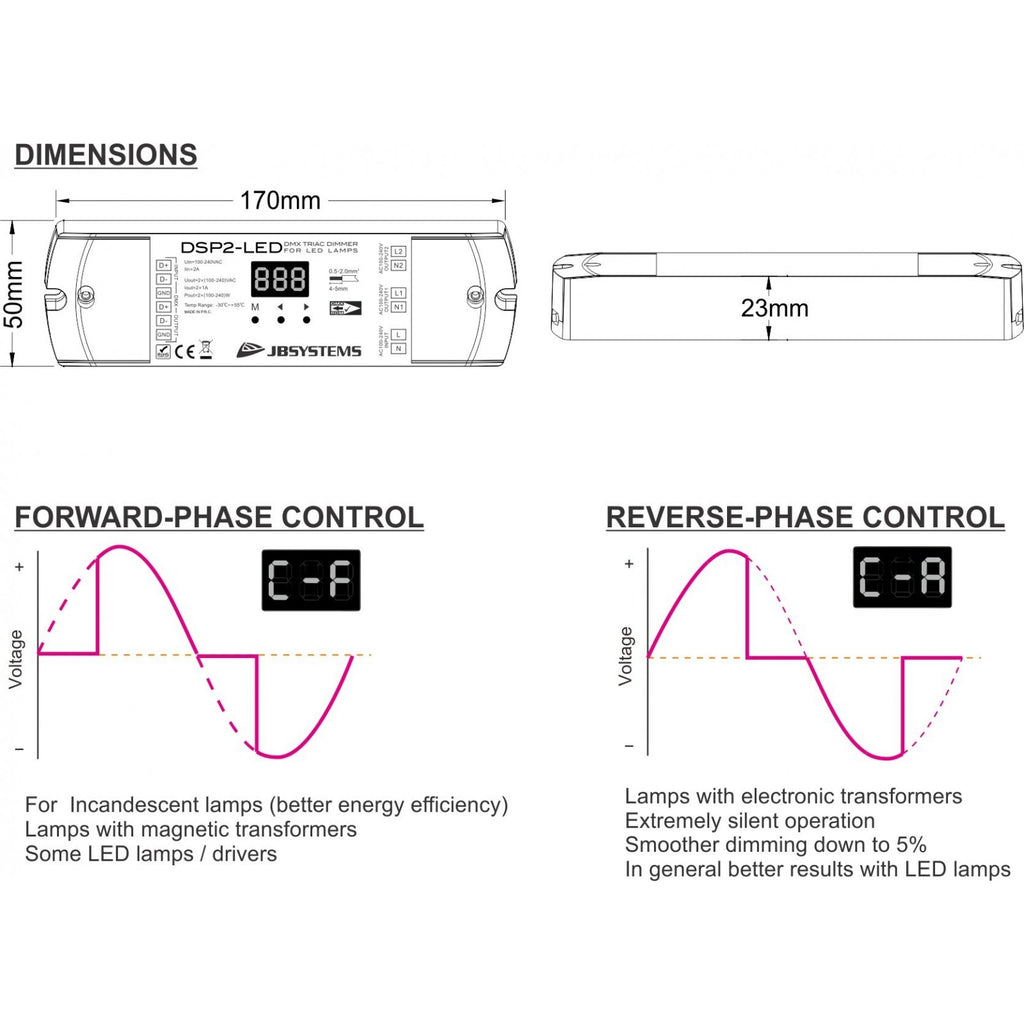

• Forward- / Reverse-phase control dimmer for a wide lamp compatibility!
• The minimum dimmer brightness from 1% to 40% can be programmed to avoid flicker.
• Different operating modes:
  • DMX-control: 1 or 2 DMX-channels with possibility for remote RDM-addressing
  • Stand-alone dimmer: with up to 8 dimmer presets, no DMX needed.
  • Stand-alone dynamic: 4 different modes with brightness and speed setting

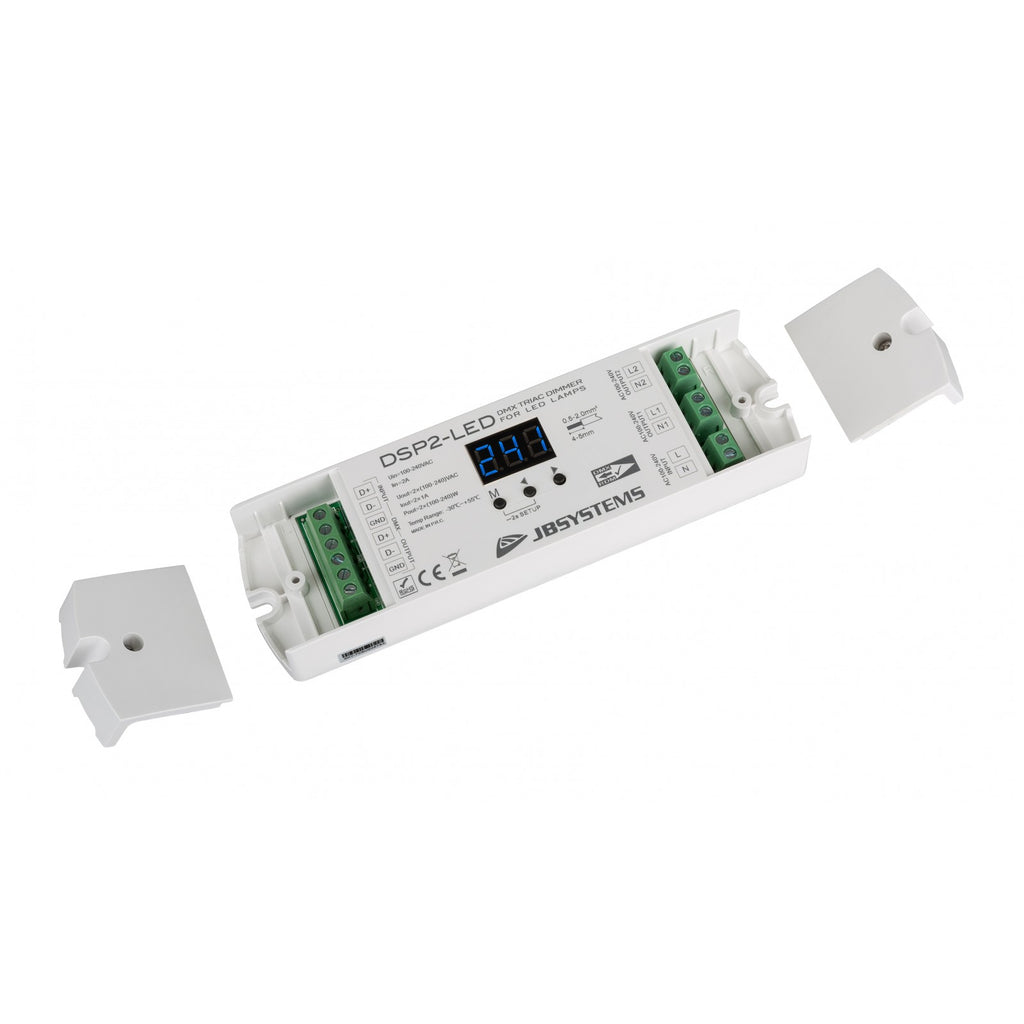

• Small dimensions for easy “blind” installation in cabinets or in false ceilings!
• Maximum output: 2x 1A (2x 240W / 240Vac or 2x 120W / 120Vac)
• Remark: only to be used with dimmable LED lamps, non-dimmable LED lamps can cause technical failure.
