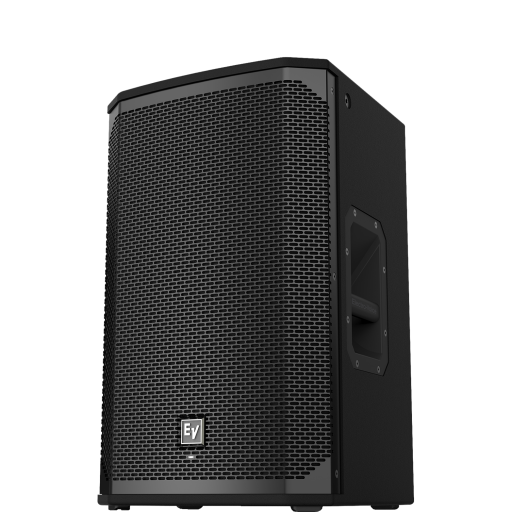

EKX-12 Electro-Voice Passive Speaker
EKX-12 Electro-Voice Passive Speaker
EKX-12: 1400 W (peak), 131 dB peak SPL using highly sensitive transducers designed and developed by EV. EV-patented Signal Synchronized Transducers (SST) waveguide design ensures accurate and consistent coverage. Lightweight, compact 15 mm wood housing with internal reinforcements and durable EVCoat finish. Eight M10 threaded mounting po...
Delivery
S2Store Genk (BE)
Combination deal
EKX-12 + COVER
- 1x EKX-12 Electro-Voice Passive Speaker€684,00

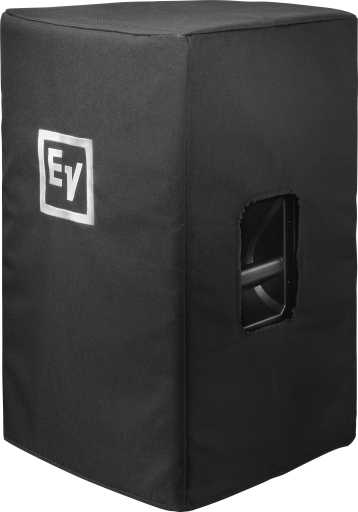

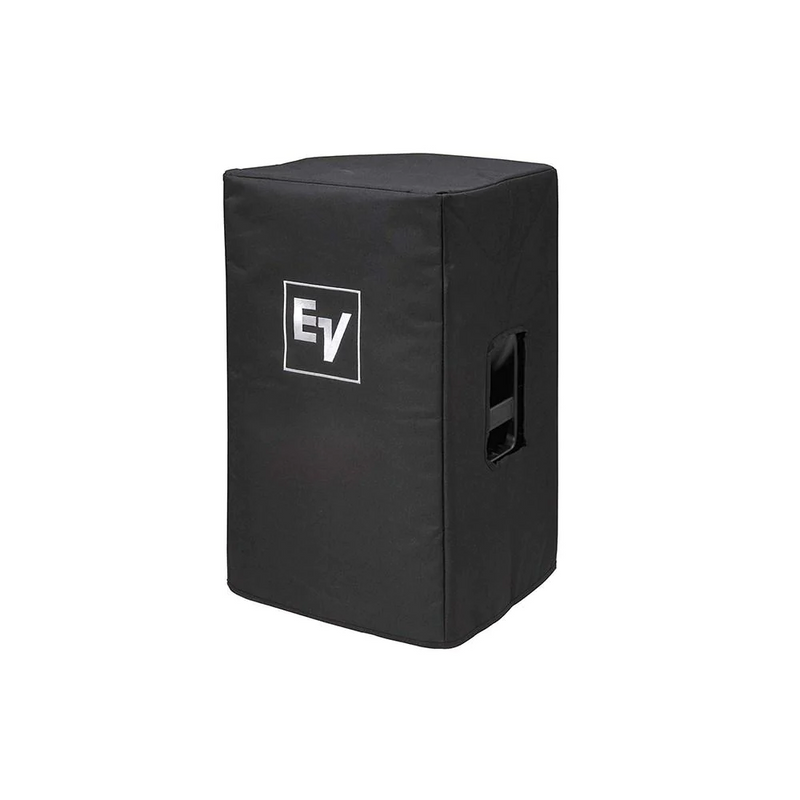

- 1x EKX-12-CVR Electro-Voice Cover EKX-12 and EKX-12P€78,00
Plus- en minpunten
Omschrijving
EKX-12 Electro-Voice Passive Speaker
EKX-12 Electro-Voice Passive Speaker

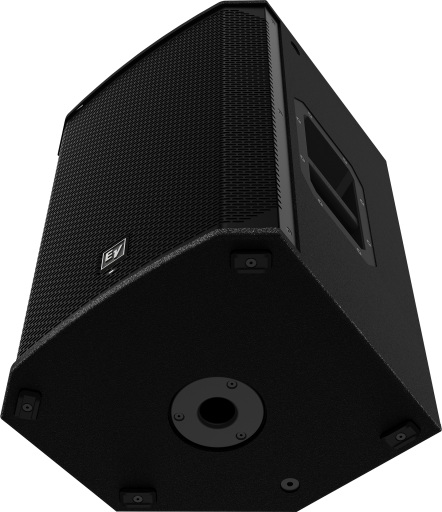

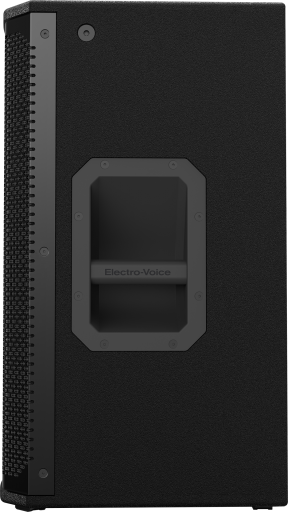

EKX-12: 1400 W (peak), 131 dB peak SPL using highly sensitive transducers designed and developed by EV. EV-patented Signal Synchronized Transducers (SST) waveguide design ensures accurate and consistent coverage. Lightweight, compact 15 mm wood housing with internal reinforcements and durable EVCoat finish. Eight M10 threaded mounting points, aluminum pole mounts and all-metal handles. 90˚ x 60˚ pattern for best coverage on medium-sized stages. 40˚ monitor angle with rubber feet.
Korte specificaties
| Housing | |
|---|---|
| Dimensions | Hoogte: 607mm | Breedte: 375mm | Diepte: 356mm | Gewicht: 17.4kg |
| Color | Zwart |
| Sound | |
|---|---|
| Crossover frequency | 1.6 kHz |
| Frequency response | (-3dB) 82 Hz - 18 kHz (volledige ruimtemeting) |
| HF driver | DH-1M 1-inch titanium compressiedriver |
| Impedance | 8Ω |
| LF driver | EVS-12M 300 mm (12 in) |
| SPL | 131dB |
| Beam angle | 90°H x 50°V |
