ETX-15SP ELECTRO-VOICE Active Subwoofer
ETX-15SP Active Subwoofer ELECTRO-VOICE
Most powerful 15-inch subwoofer in the Electro-voice active lineup. The 15-inch DVX woofer provides maximum punch and a maximum sound pressure of 134db SPL. The ETX-15SP has a built-in 1800W Class-D amplifier with integrated FIR-Drive DSP. Special DSP preset for true cardioid performance across the full bandwidth. Combo masthead (insert an...
Delivery
S2Store Genk (BE)
Combination deal
ETX-12P PA System (Cardioid)
2x
4x
3x
2x- 2x ETX-12P Electro-Voice Active Speaker€2.936,00
- 4x ETX-15SP ELECTRO-VOICE Active Subwoofer€6.608,00
- 3x PXM-12MP Electro-Voice Active floor monitor€2.964,00
- 2x SP2332B GRAVITY Speaker Pole M20 (82-140cm)€46,00
Combination deal
ETX-15SP + COVER
- 1x ETX-15SP ELECTRO-VOICE Active Subwoofer€1.652,00

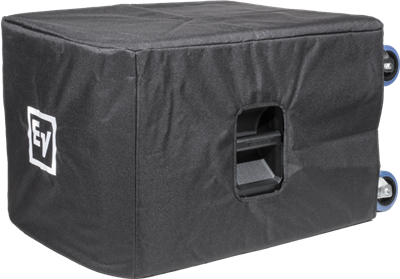

- 1x ETX-15SP-CVR ELECTRO-VOICE Cover for ETX-15SP€98,00
Plus- en minpunten
Omschrijving

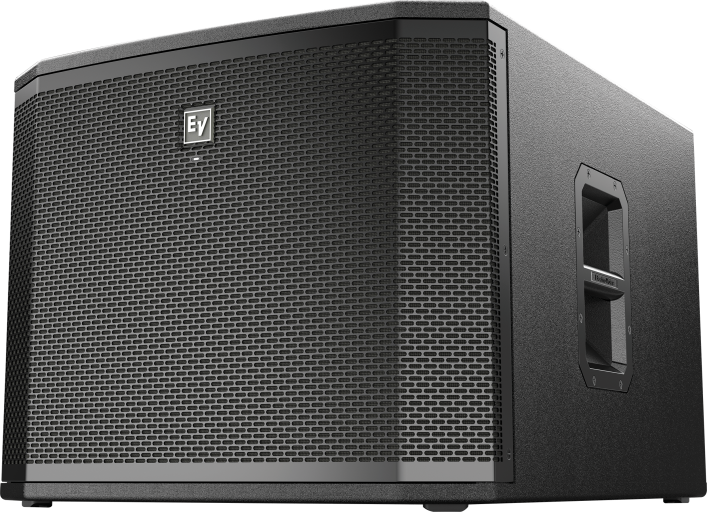

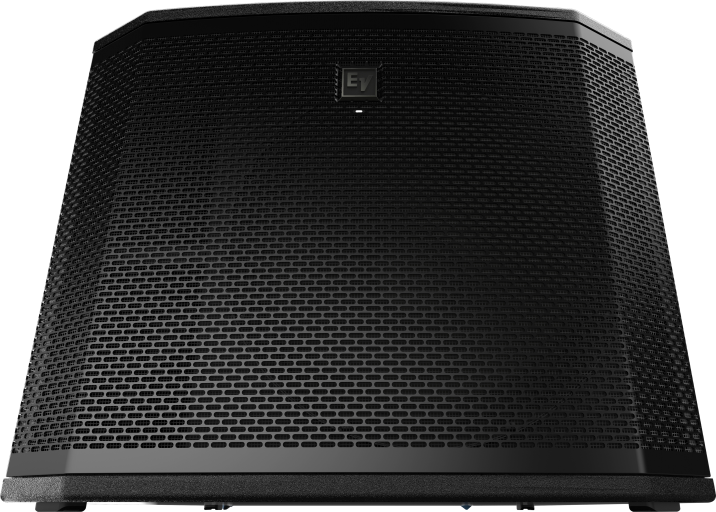

ETX-15SP ELECTRO-VOICE Active Subwoofer
ETX-15SP Active Subwoofer ELECTRO-VOICE
Most powerful 15-inch subwoofer in the Electro-voice active lineup. The 15-inch DVX woofer provides maximum punch and a maximum sound pressure of 134db SPL. The ETX-15SP has a built-in 1800W Class-D amplifier with integrated FIR-Drive DSP. Special DSP preset for true cardioid performance across the full bandwidth. Combo masthead (insert and threaded) for use with the ETX Powered Loudspeaker full range models.
Korte specificaties
| Housing | |
|---|---|
| Dimensions | 471 mm x 576 mm x 825 mm |
| Weight | 41.7 kg |
| Construction material | 18 mm, multiplex met gepatenteerde EVCoat, stalen grille |
| Stand | |
|---|---|
| Stand adapter (top hat) | 35mm en M20 combo |
| Sound | |
|---|---|
| Crossover frequency | Adjustable 80 Hz, 100 Hz, 120 Hz, 150 Hz |
| Frequency response | 37 Hz - 150 Hz (-3 dB) |
| Frequency range | 32 Hz - 180 Hz (-10 dB) |

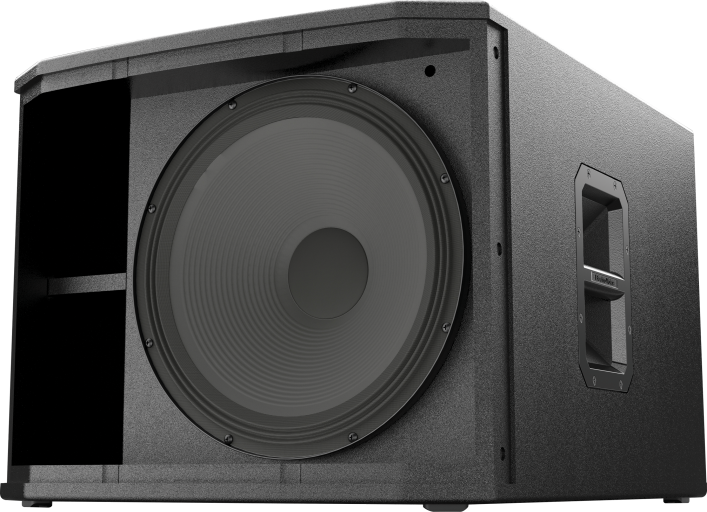

| LF driver | 15-inch DVX woofer (DVX3159A) |
| SPL | 134 dB peak |
| Power | |
|---|---|
| Peak power | 1800 W |
| Amplifier configuration | FIR-Drive DSP |
| Amplifier class | D |
| Power supply | |
|---|---|
| Voltage | 100 - 240 V~, 50 - 60 Hz, 1.6 - 0.8 A |

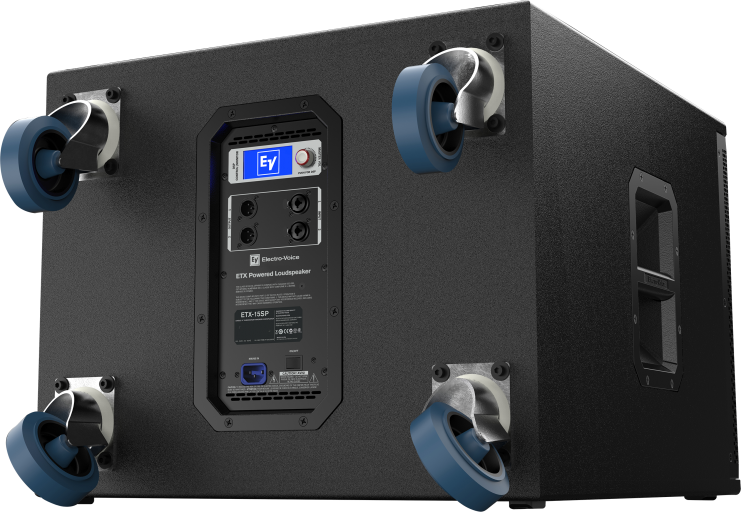

| Audio I/O | |
|---|---|
| Inputs | (2) XLR/TRS Combo Jack |
| Outputs | (2) XLR link Output |
