EVOX JMIX9 W RCF Active Column Speaker with Mixer (White)
EVOX JMIX9 W RCF Active Column Speaker with Mixer (White)
EVOX JMIX9 is a three-way active portable system with an integrated 8-channel stereo digital mixer featuring a color touch display, encoders, Bluetooth® streaming, and full remote control. Combining the clarity and power of the J9 with digital mixing, flexible routing, and wireless management, EVOX JMIX9 delivers professi...
Delivery
S2Store Genk (BE)
Plus- en minpunten
Omschrijving
EVOX JMIX9 W RCF Active Column Speaker with Mixer (White)
EVOX JMIX9 W RCF Active Column Speaker with Mixer (White)

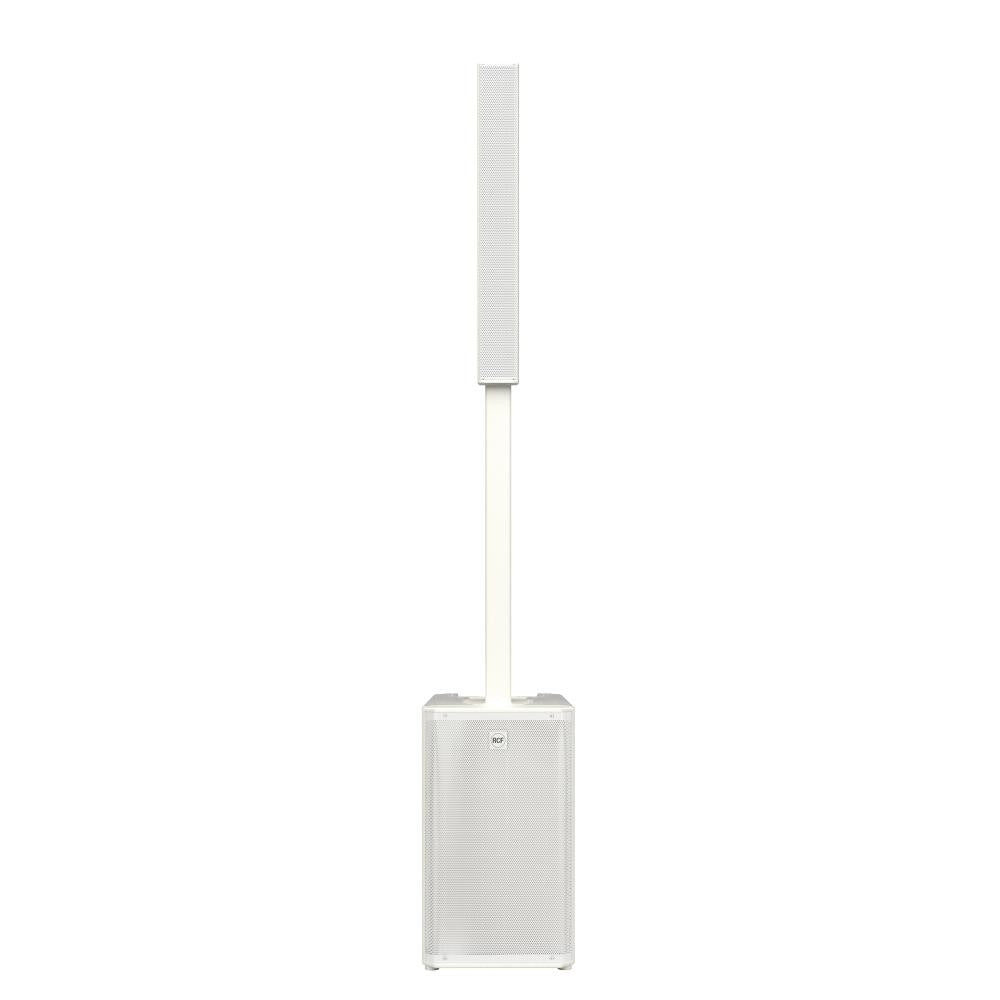

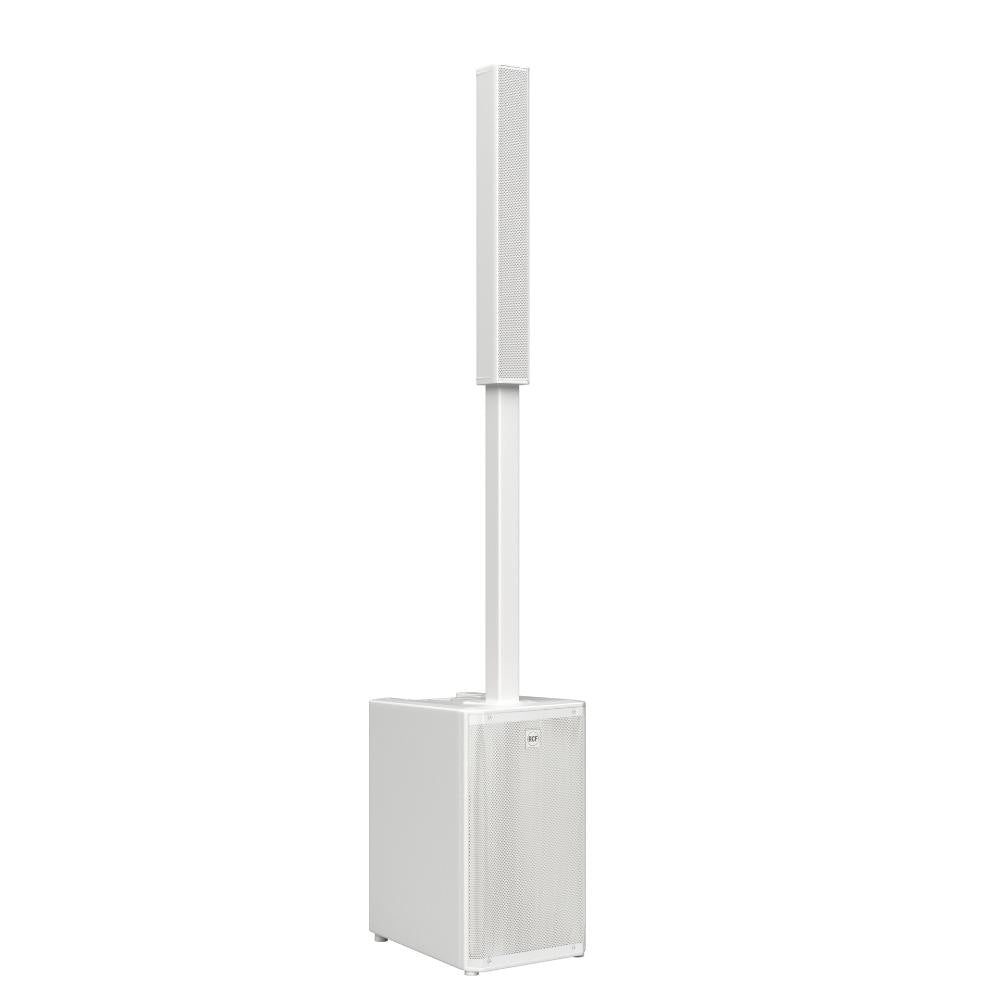

EVOX JMIX9 is a three-way active portable system with an integrated 8-channel stereo digital mixer featuring a color touch display, encoders, Bluetooth® streaming, and full remote control. Combining the clarity and power of the J9 with digital mixing, flexible routing, and wireless management, EVOX JMIX9 delivers professional performance across the entire signal chain. A 1.75” compression driver on a 120° × 40° True Resistive Waveguide delivers wide, uniform coverage, while six 3” transducers and a high-power 12” bass-reflex woofer provide articulate mids and deep, controlled lows. Powered by a 2100 W Class-D amplifier for up to 130 dB Max SPL, the system includes combo inputs, stereo/aux out, EQ, reverb, phantom power, and Bluetooth audio. All functions are accessible from the touch interface or the JMixRemote app.
- 8-Ch True-Stereo Digital Mixer w/ Bluetooth®
- 130 dB Max SPL
- 2100 W Class-D Amplifier - Built-In DSP
- 1.75” Neo Compression Driver - 120° X 40° True Resistive Waveguide
- 6 × 3” Full-Range Neo Transducers
- 12” High-Power Woofer
- Enhanced Coverage And Clarity
- Sleek Composite Cabinet With Aluminum Stand Mount

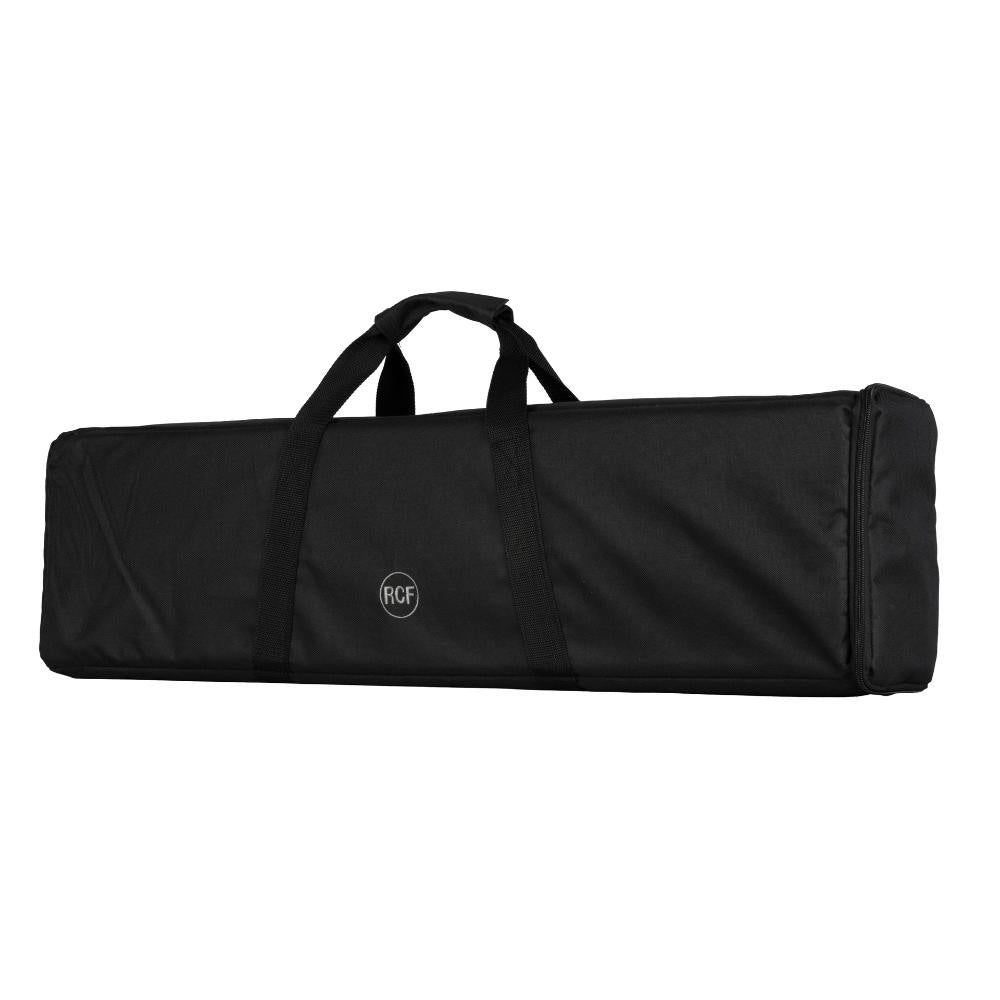

- Top Speaker Padded Carrying Bag Included
Korte specificaties
| Housing | |
|---|---|
| Dimensions | 208 x 35 x 46 cm |
| Weight | 28.8 kg |
| Color | Wit |
| Sound | |
|---|---|
| Crossover frequency | 200 Hz/1800 Hz |
| Frequency response | 40 Hz - 20000 Hz |
| HF driver | 1 x 0.75'' neo, 1.75'' v.c |
| LF driver | 1 x 12'', 2.5'' v.c |
| Mid-range driver | 6 x 3.0'' neo, 1.0'' v.c |
| Beam angle | 120 ° H x 40° V |
| Power | |
|---|---|
| HF power | 700 W Piek |
| LF power | 1400 W Piek |
| Max SPL sound pressure level | 130 dB |

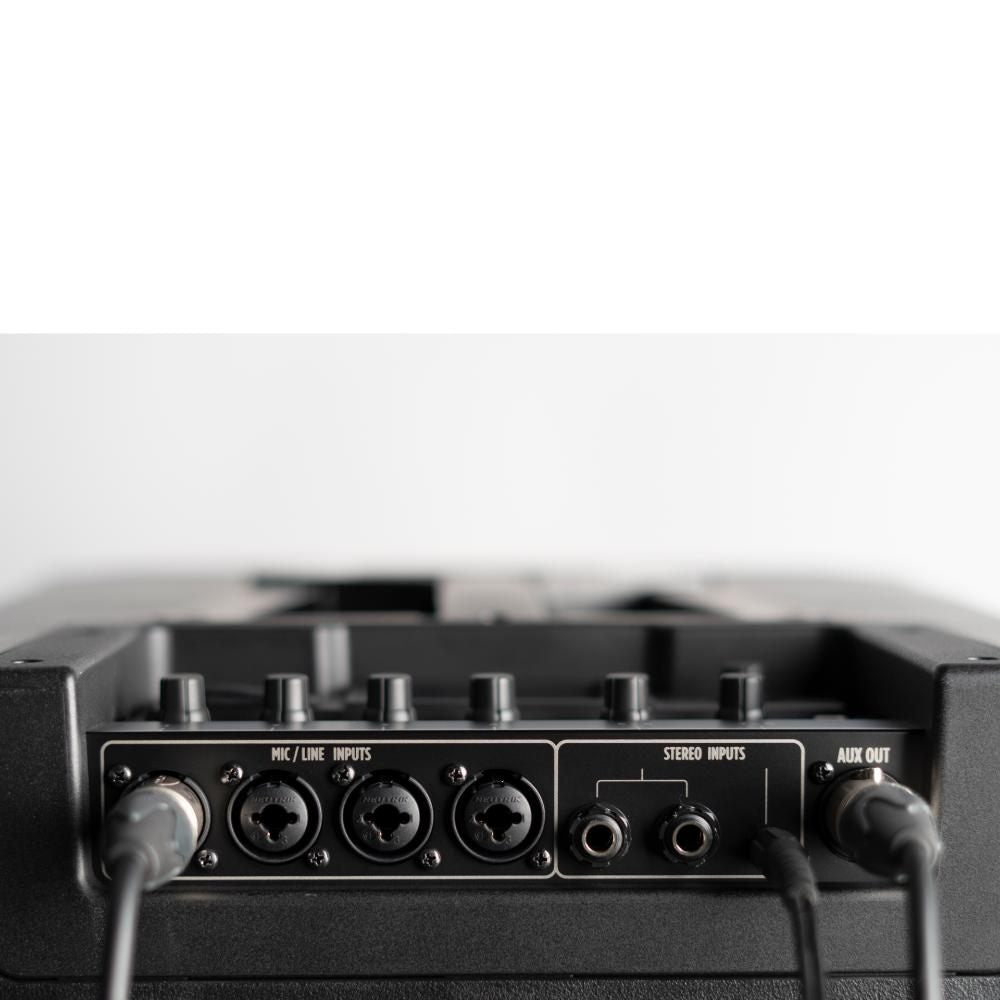

| Audio I/O | |
|---|---|
| Audio inputs | Combo XLR/Jack |
| Audio outputs | XLR |
| Analog inputs | |
|---|---|
| Aux line | 4 Mono |
| Mic | 4 |
