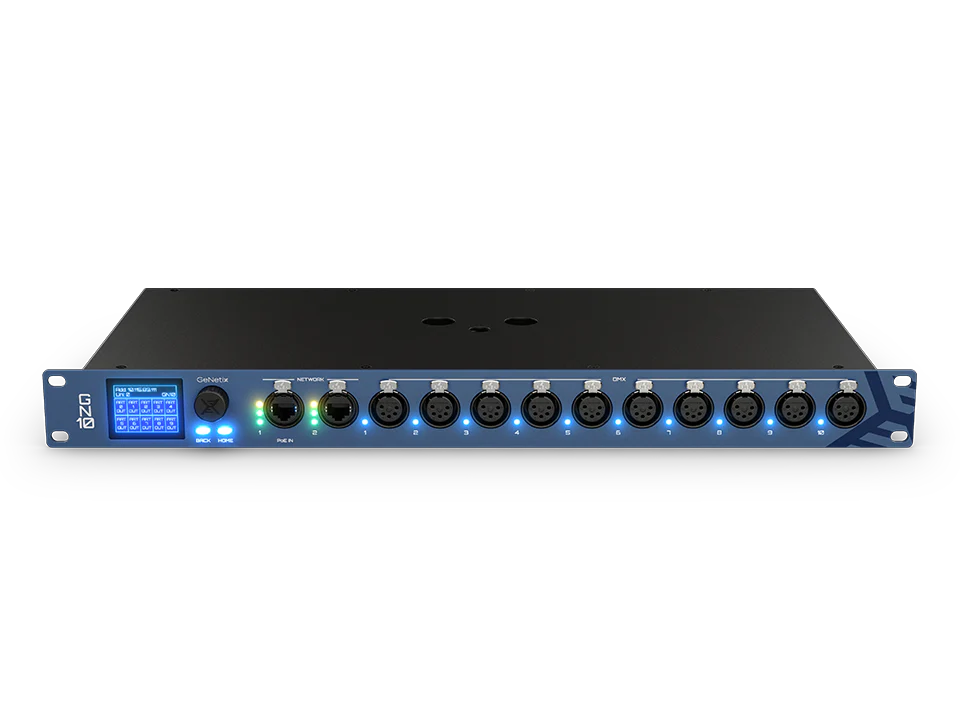

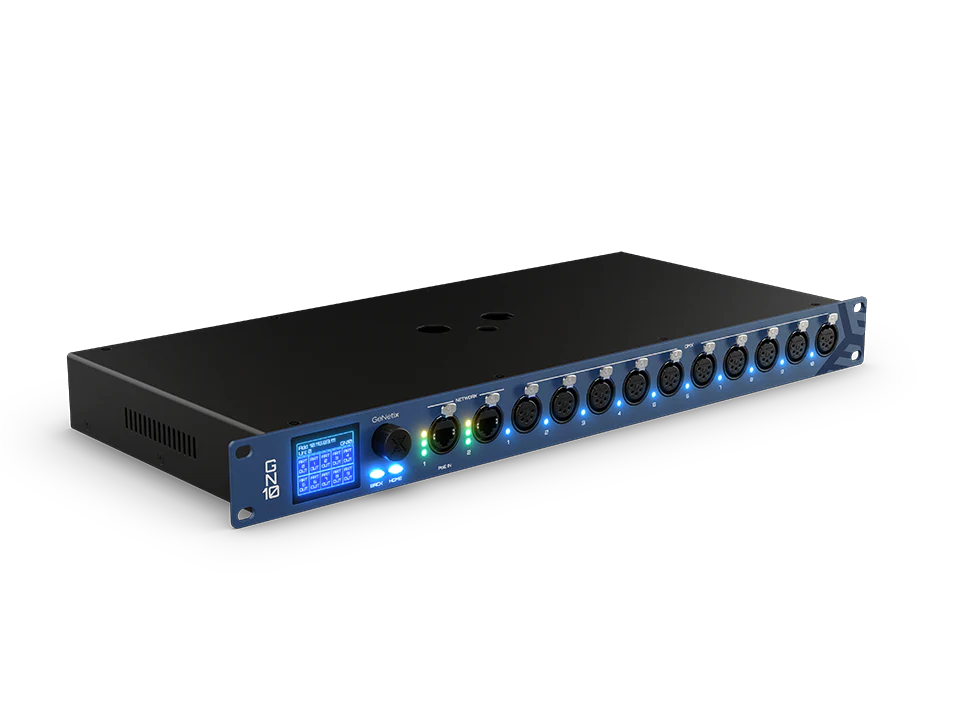

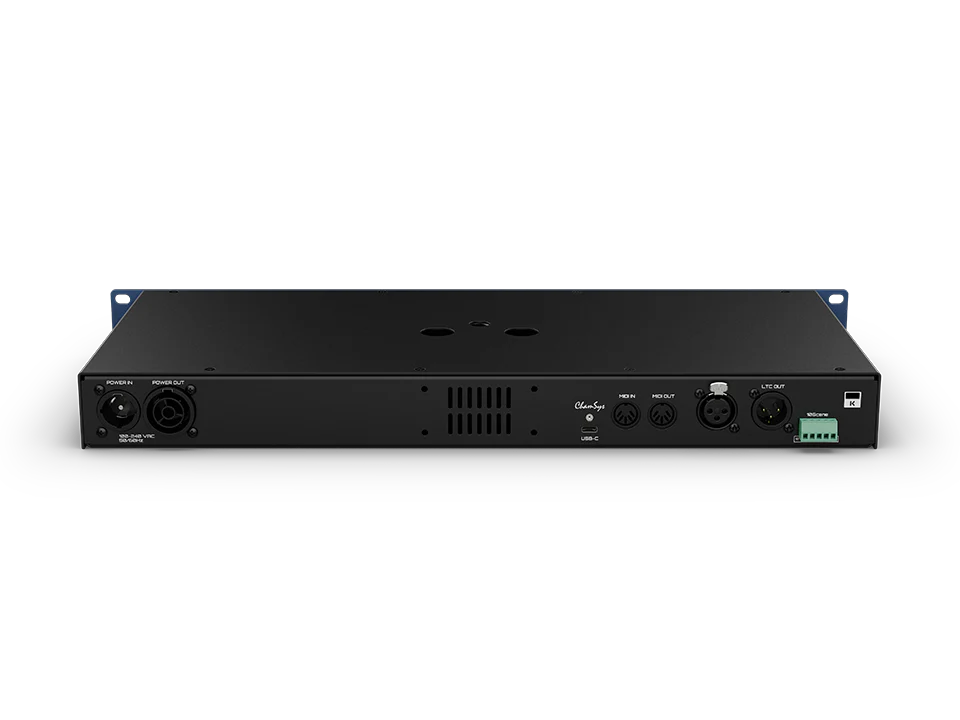

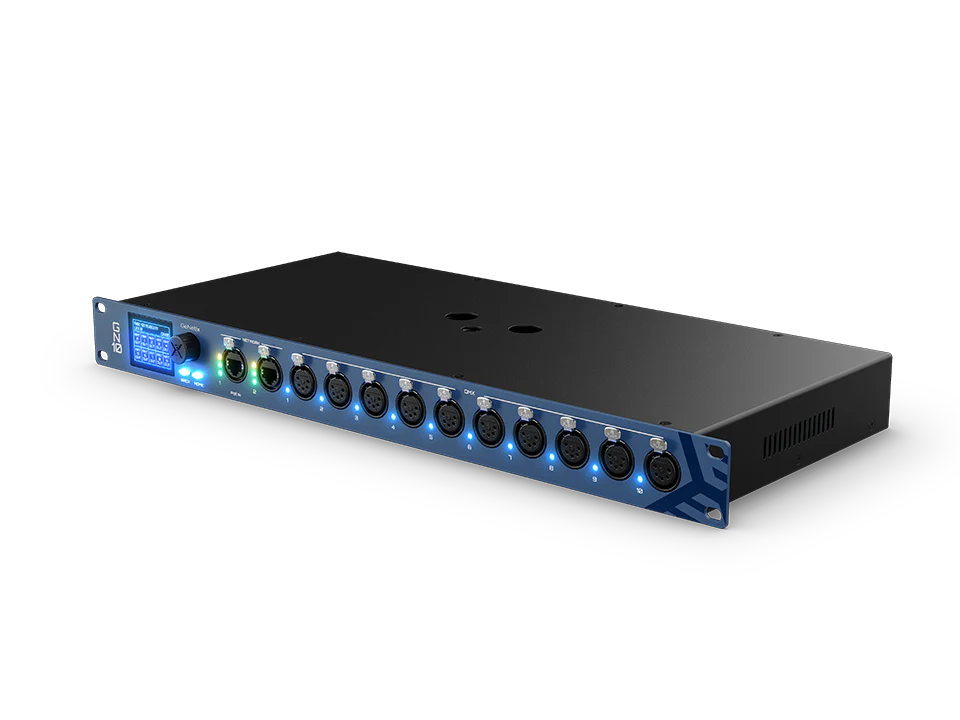

GeNetix GN10 CHAMSYS 10 Port DMX Node

The GeNetix Node 10 is a multifunction node that provides a solution for remote data distribution in a wide range of applications, specifically supporting Timecode, MIDI and 10Scene.
This universal interface supports Art-Net, sACN, RDM and, like all GeNetix nodes, is fully configurable from ChamSys consoles, via the built-in Web server or via the display on the unit. The DMX ports are fully configurable so they can be used as DMX inputs or outputs and DMX timings can be configured. With two network ports, the GeNetix Node 10 can be powered via PoE or mains power via the powerCON TRUE1 line input. This versatile device is at home in many different environments as a standalone interface, rig mounted via the M12 receiver or rack mounted via the rack ears.
The interface's LTC and MIDI ports provide both Timecode and MIDI notes input/output to MagicQ systems over ChamNet, as well as Art-Net timecode compatible with any system that supports it, making the GeNetix Node 10 ideal for applications where the Timecode or MIDI source is away from the console.
When connected to MagicQ PC Systems via USB, the GeNetix Node 10 unlocks MagicQ PC Systems in Full Unlocked Mode, acting not only as a DMX interface, but also as a Timecode, MIDI and 10Scene gateway, making the full power of MagicQ software available to systems running on Linux, Mac or P. When used as an Art-Net/sACN node, the GeNetix Node 10 opens up to 2 MagicQ Instances over Network.
