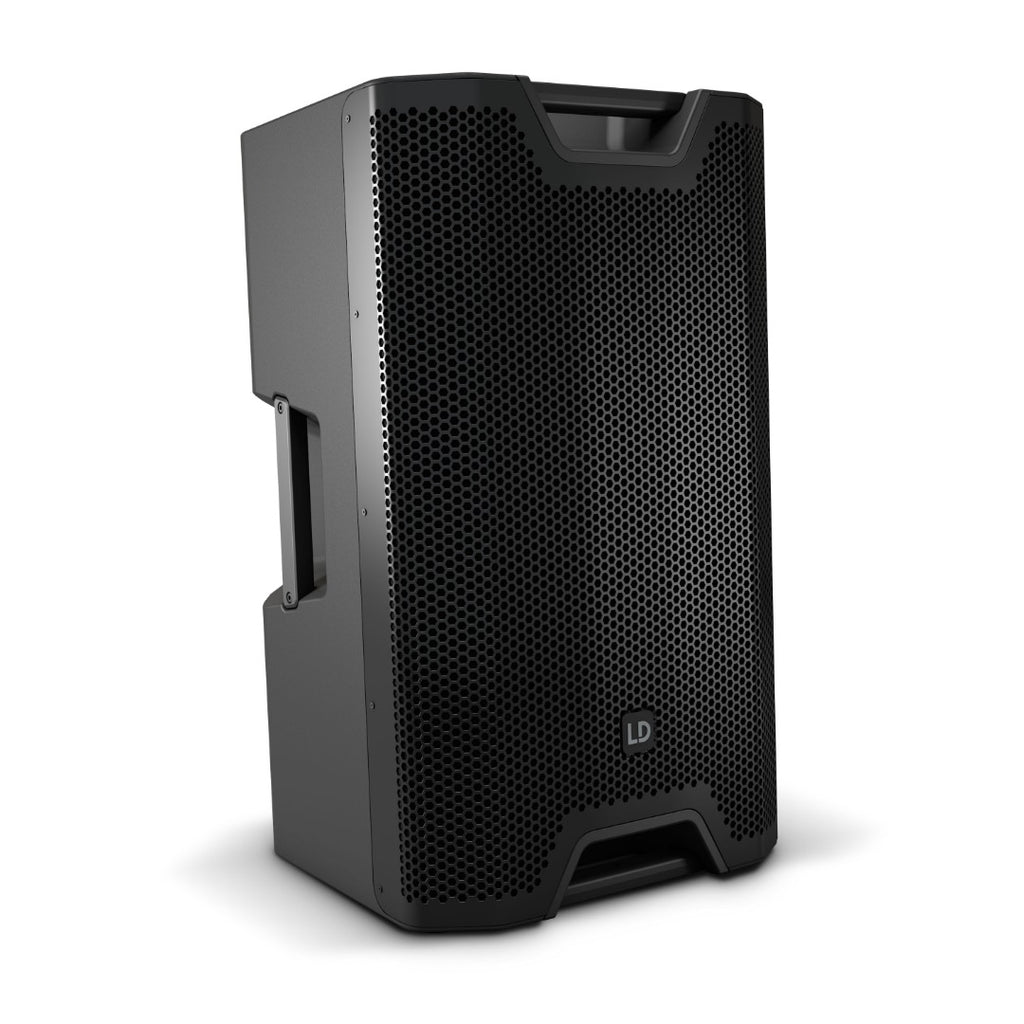

ICOA 15A (BT) LD SYSTEMS 15 inch active fullrange speaker with Buetooth

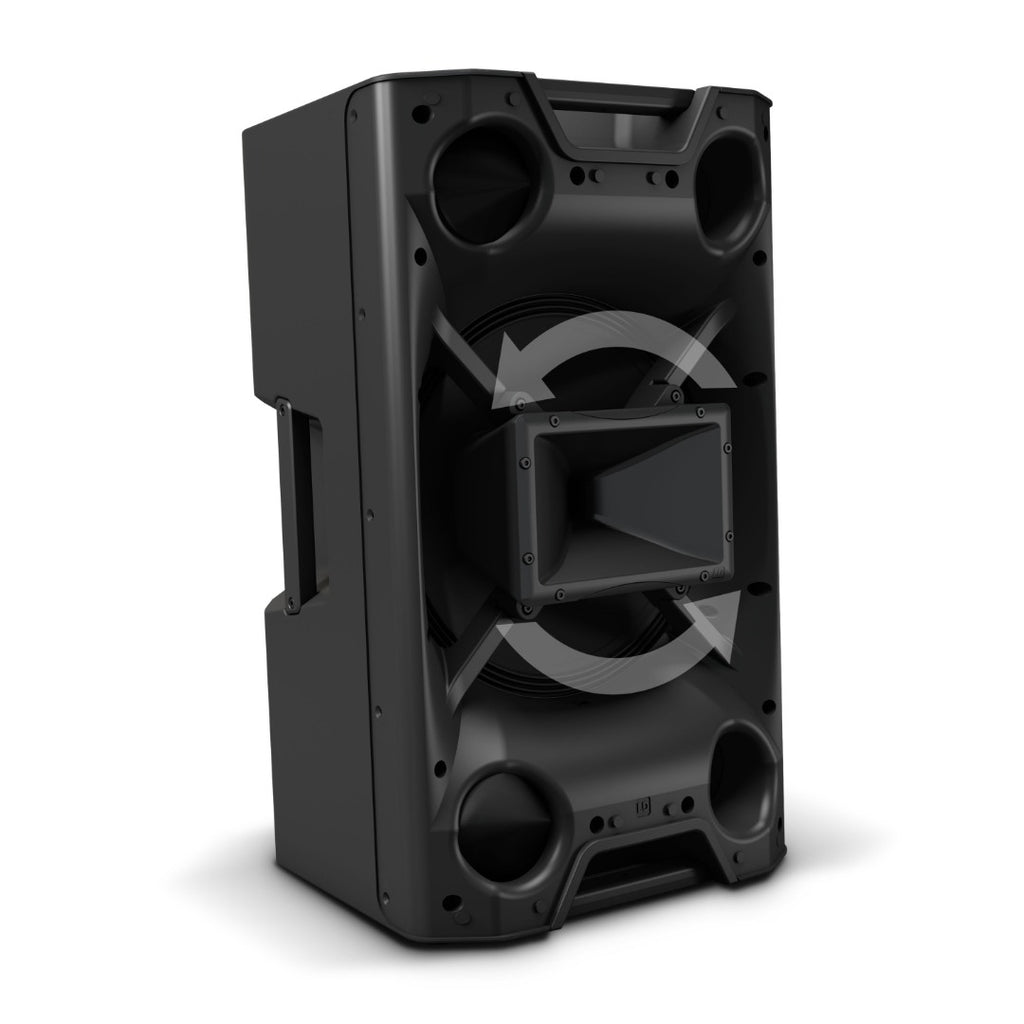

This full-range speaker impresses with its excellent sound, even at low frequencies. The ICOA 15 A BT by LD Systems is a true all-rounder offering unrivalled performance for its class. The coaxial design, rotary BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this aktive 15" speaker exceptionally flexible.

The excellent bass reproduction of the horn-loaded woofer makes the LD ICOA 15 A BT the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Used vertically, the loudspeaker impresses like a satellite; horizontally, it's perfect for suspended systems or as a floor monitor. The efficient class-D power amplifier delivers up to 128 dB. SPL and 1200 W peak performance.

Based on LD Systems' DynX DSP technology, the loudspeaker delivers perfect performance with maximum clarity and power in all conditions. 4 presets, a 3-band EQ and a delay function allow optimum adaptation of the sound to the room conditions. The 2 line/mic input channels with individual gain controls, plus a monomix output, make it possible to connect a variety of signal sources. The BT version offers Bluetooth® streaming and wireless connection of playback devices - ideal for playing content from a phone or tablet.

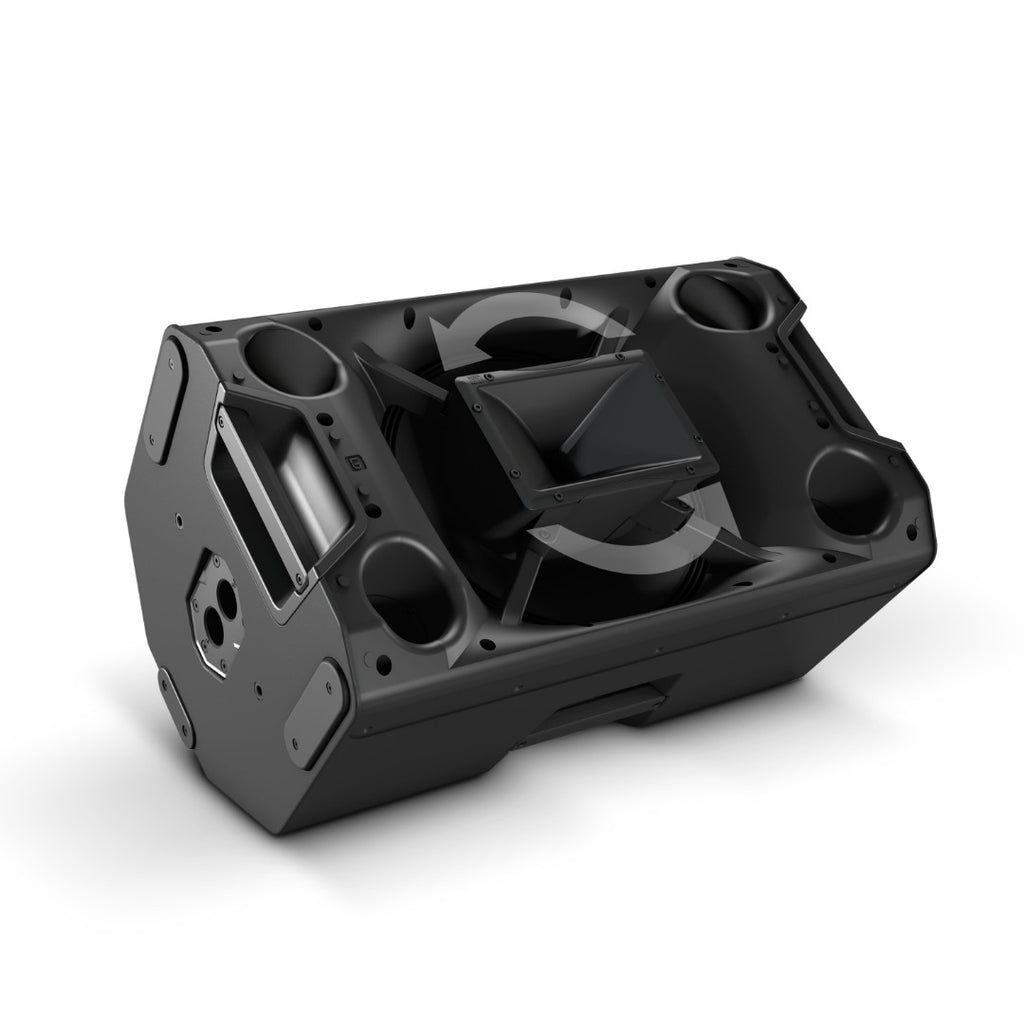

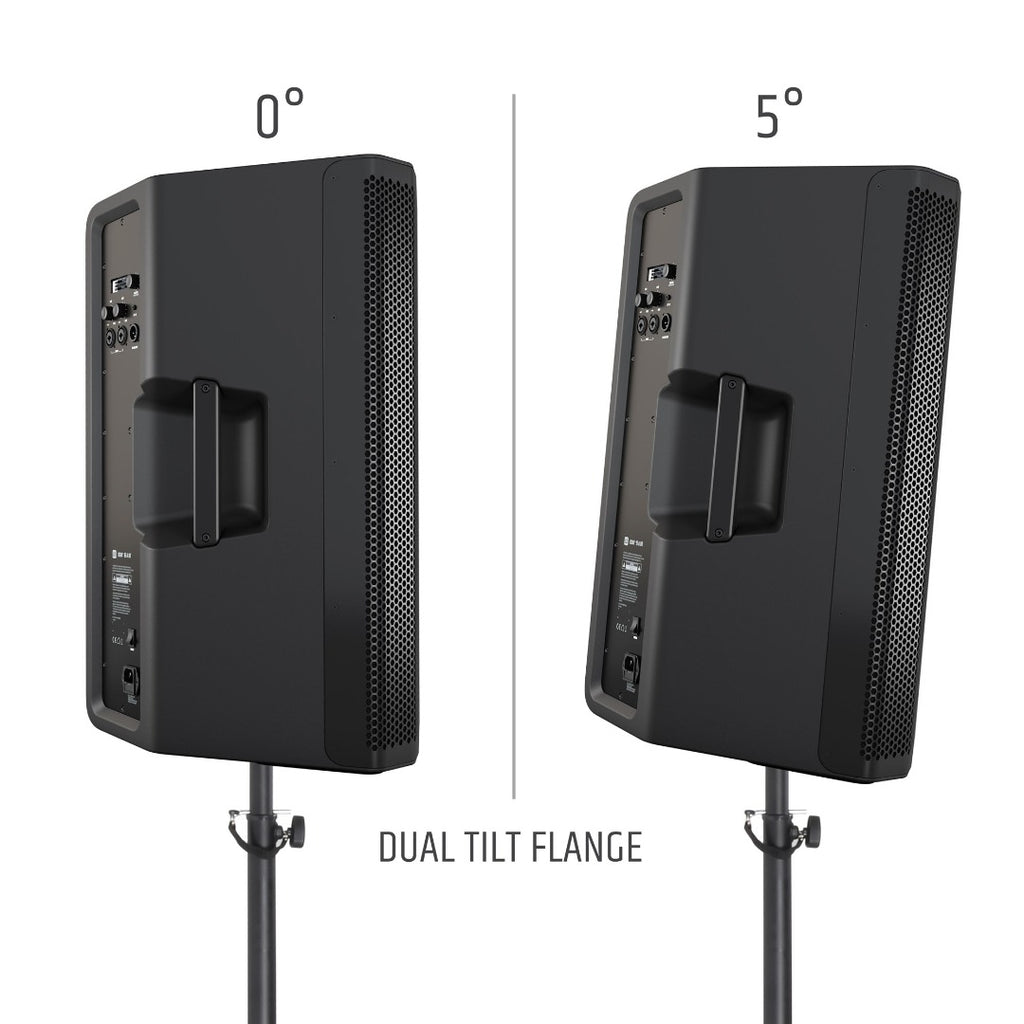

Thanks to the shock-resistant diffuser face and the ideal tilt angle of 55°, the LD ICOA 15 A BT is also ideally suited as a floor monitor. Positioned vertically, the 36 mm double-tilt post mount offers a choice of 0° or 5° tilt angle to optimally adapt the system to the local acoustic environment.

Comprehensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface ensure optimal grip when carrying the speaker.

Specifications:

• Bluetooth 4.0 audio decoder
• Low/mid woofer dimensions 15"
• Woofer size 381 mm
• Woofer magnet Ferrite
• Hoorn BEM optimized CD Hoorn
• HF dimensions 1 "
• HF magnet Ferrite
• HF driver voice coil 1 "
• HF Driver Voice Coil 25.4 mm
• Amplifier class D
• Dispersion (H x V) 90 ° x 50 °
• RMS 300 W
• Peak power 1200 W
• Frequency response 48 - 20000 Hz
• Crossover frequency kHz 2 kHz
• Max. SPL (peak) 128 dB
• Protection circuits Multi-band limiter, over voltage, over-current, thermal overload

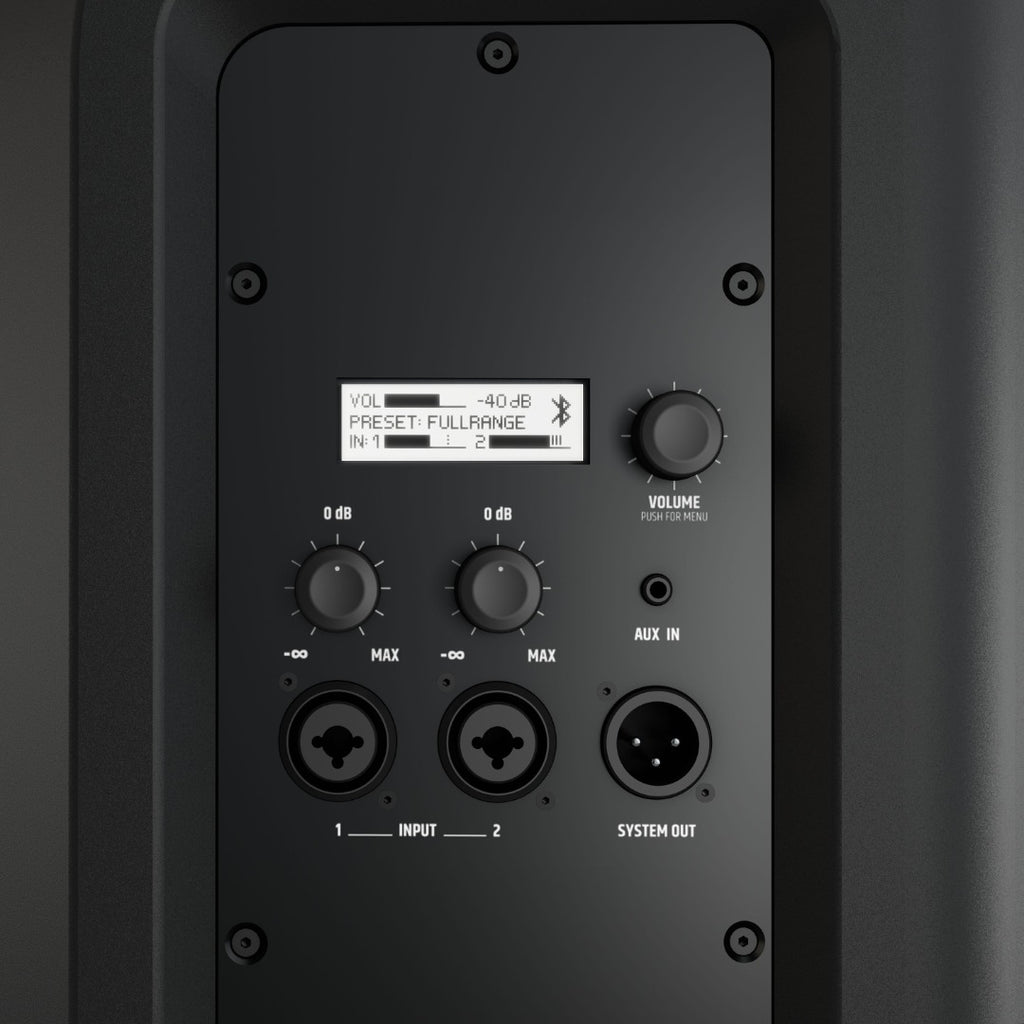

• Controls 2 x gain , On/off switch , Rotary knob/pushbutton
• Indicators LC display
• Mic/line inputs 2
• Mic-/ Line Input Connectors 6,3 mm jack Combination sockets (symmetrical) , XLR
• Line inputs 1
• Line input connectors 3.5 mm TRS
• Line outputs 1
• Line output terminals XLR
• Operating voltage SMPS
• Power consumption 150 W
• Ambient temperature ( operating ) 0 - 40 °C
• Operating voltage 100 V - 240 V AC / 50 - 60 Hz
• Relative humidity < 80 %, non-condensing
• Fuse T4AL 250 V
• Cabinet material Polypropylene
• Cabinet construction Bass Reflex
• Mounting 36mm flange (0°, 5°) , 6 x M10 flight points
• Monitoring angle 55°
• Width 416 mm
• Height 695 mm
• Depth 415 mm
• Bluetooth Features
• Weight 24,3 kg
• Accessories (included) Power cord
