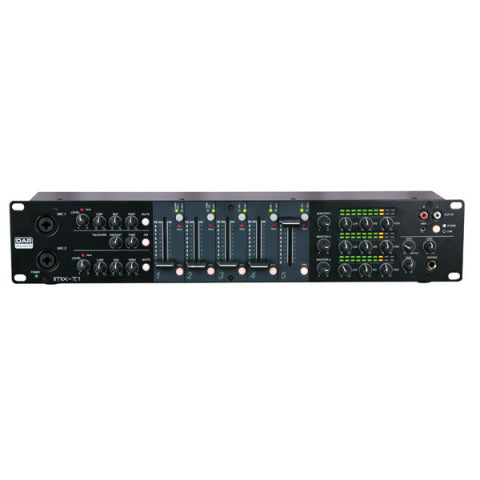

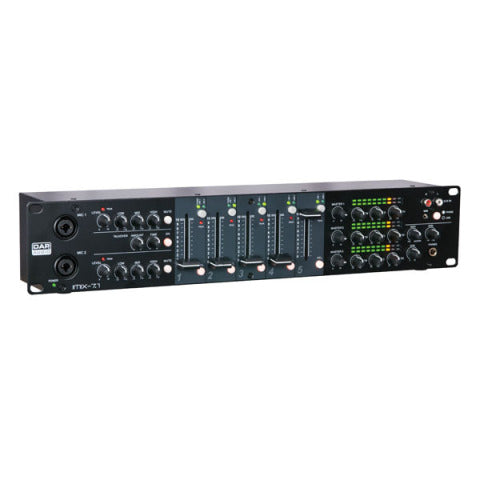

The IMIX-7.1 is a compact installation mixer for many kind of applications. It has a basic design which makes it easy to control. Gain settings are at the backside which prevents wrong use by non-technical users. The 3 balanced master outputs with a low mid and high tone control gives the possibility to set up different sound levels for 3 area's. At the front it has a direct input for 2 microphones, 1 Line source or a Phone/MP3 device with a dedicated impedance switch.

FEATURES:

• Gain settings at backside
• Special front input for phone/mp3 devices
• 3 Balanced master outputs with tone control
• 2 Mic, 11 Line inputs

SPECIFICATIONS:

Input channels:

• 2 x Microphone, combo XLR/Jack
• 11 x Line, RCA
• 2 x Phono, RCA
• 1 x Phone, 3,5mm jack

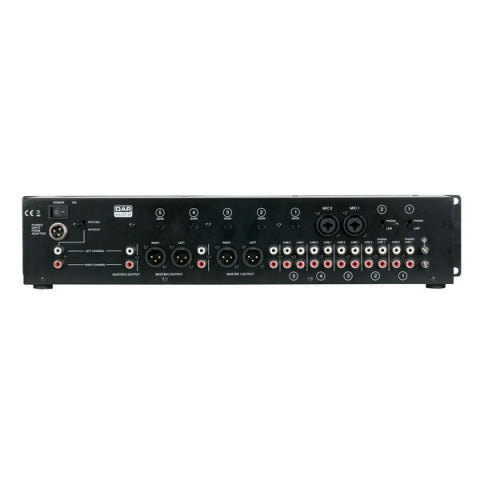

Output channels:

• 2 x Master Balanced, XLR
• 1 x Master output, RCA
• 1 x REC output, RCA
• 1 x Headphones, 6.3mm Jack

Other:

• Master EQ: 80Hz, 1KHz, 12KHz, -12dB / +12dB
• Mic EQ: 80Hz, 1KHz, 12KHz, -12dB / +12dB
• Frequency response: 20Hz - 20Khz
• T.H.D.: <0.05%

Physical:

• Dimensions: 481 x 88 x 95 mm (LxHxD)
• Powersupply: 230V AC, 50Hz
• Powerconsumption: 21Watt
• Weight: 2,8 Kg
