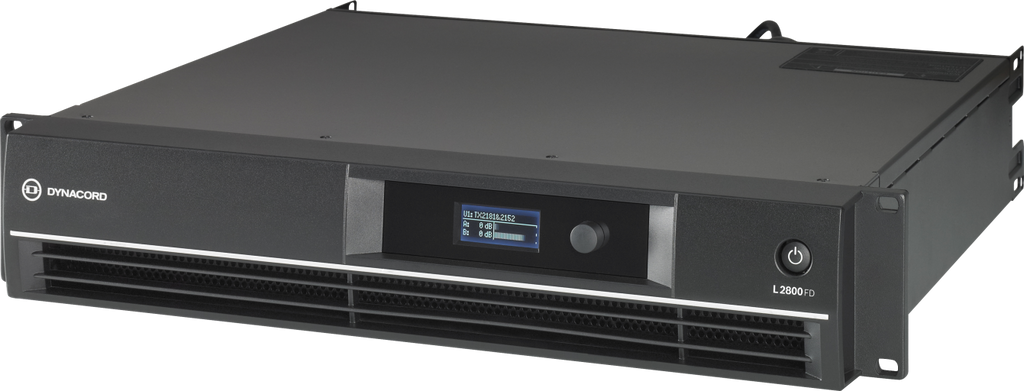

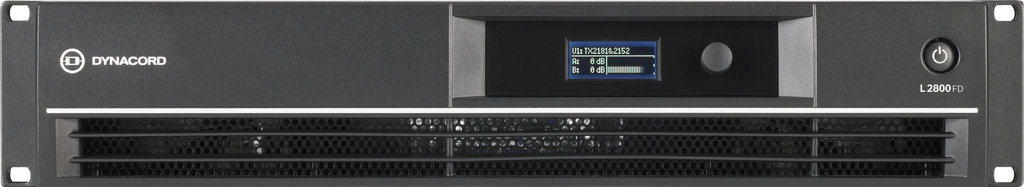

L2800FD Dynacord Amplifier
L2800FD Amplifier Dynacord
The Dynacord L Series are professional two-channel audio amplifiers for live and mobile applications. Integrated digital signal processing provides access to professional speaker processing with FIR Drive technology. L Series amplifiers utilize Class A/B and Class H topologies respectively, providing market-leading acoustic performance and reliabil...
Delivery
S2Store Genk (BE)
Plus- en minpunten
Omschrijving
L2800FD Dynacord Amplifier
L2800FD Amplifier Dynacord
The Dynacord L Series are professional two-channel audio amplifiers for live and mobile applications. Integrated digital signal processing provides access to professional speaker processing with FIR Drive technology. L Series amplifiers utilize Class A/B and Class H topologies respectively, providing market-leading acoustic performance and reliability. Connectivity is optimized for the needs of mobile applications. An LC display on the front panel allows local control and supervision of the amplifier. An intuitive system control software enables fast system setup, flexible system control and comprehensive supervision.
Korte specificaties
| Housing | |
|---|---|
| Dimensions | 483 x 88 x 462.4 mm |
| Weight | 16.2 kg |
| Rack height | 2U |
| Sound | |
|---|---|
| Frequency response | 10 Hz to 21 kHz (±1 dB) |
| THD (total harmonic distortion) | < 0.05% |
| Power | |
|---|---|
| RMS power | 2x 650W @ 8Ω | 2x 130W @ 4Ω | 2x 2200W @ 2Ω |
| Amplifier class | Class AB |
| Power supply | |
|---|---|
| Consumption | max. 700 W bij belasting van 4 Ohm |
