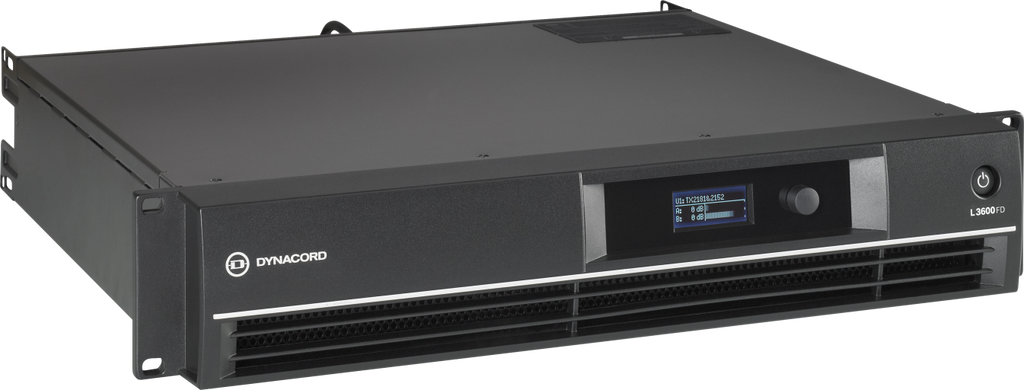

L3600FD Dynacord Amplifier
L3600FD Dynacord Amplifier
Dynacord L Series are professional dual channel audio amplifiers for live and mobile applications. Integrated digital signal procesing provides access to professional speaker processing with FIR Drive technology. L Series amplifiers utilize Class A/B resp. Class H topologies, which provide market leading acoustic performance and reliability. The connec...
Delivery
S2Store Genk (BE)
Plus- en minpunten
Omschrijving
L3600FD Dynacord Amplifier
L3600FD Dynacord Amplifier

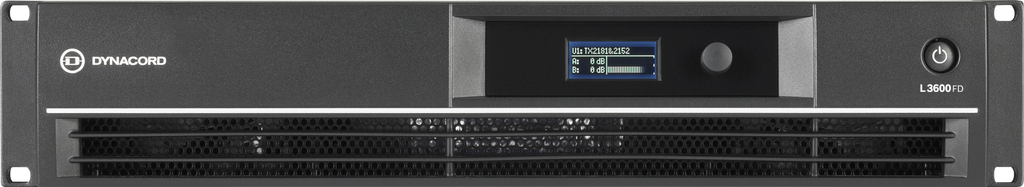

Dynacord L Series are professional dual channel audio amplifiers for live and mobile applications. Integrated digital signal procesing provides access to professional speaker processing with FIR Drive technology. L Series amplifiers utilize Class A/B resp. Class H topologies, which provide market leading acoustic performance and reliability. The connectivity is optimized for the needs of mobile applications. A front panel LC display allows local control and supervision of the amplifier. An intuitive system control software allows fast system setup, flexible system control and comprehensive supervision.
- Professional DSP amplifier for live and mobile application
- Fully integrated professional speaker processing with FIR drive technology
- Market-leading acoustic performance and rock solid reliability
- Intuitive, simplified set-up, control and operation in SONICUE sound system software with firmware 2.0
Korte specificaties
| Housing | |
|---|---|
| Dimensions | 483 x 88 x 462.4 |
| Weight | 18.2 kg |
| Rack height | 2 U |
| Sound | |
|---|---|
| Frequency response | 10 Hz to 21 kHz (±1 dB) |
| THD (total harmonic distortion) | < 0.05% |
| Power | |
|---|---|
| RMS power | 2x 900W @ 8Ω | 2x 1700W @ 4Ω | 2x 3000W @ 2Ω |
| Amplifier class | A/B |
| Power supply | |
|---|---|
| Consumption | max. 850 W bij belasting van 4 Ohm |
