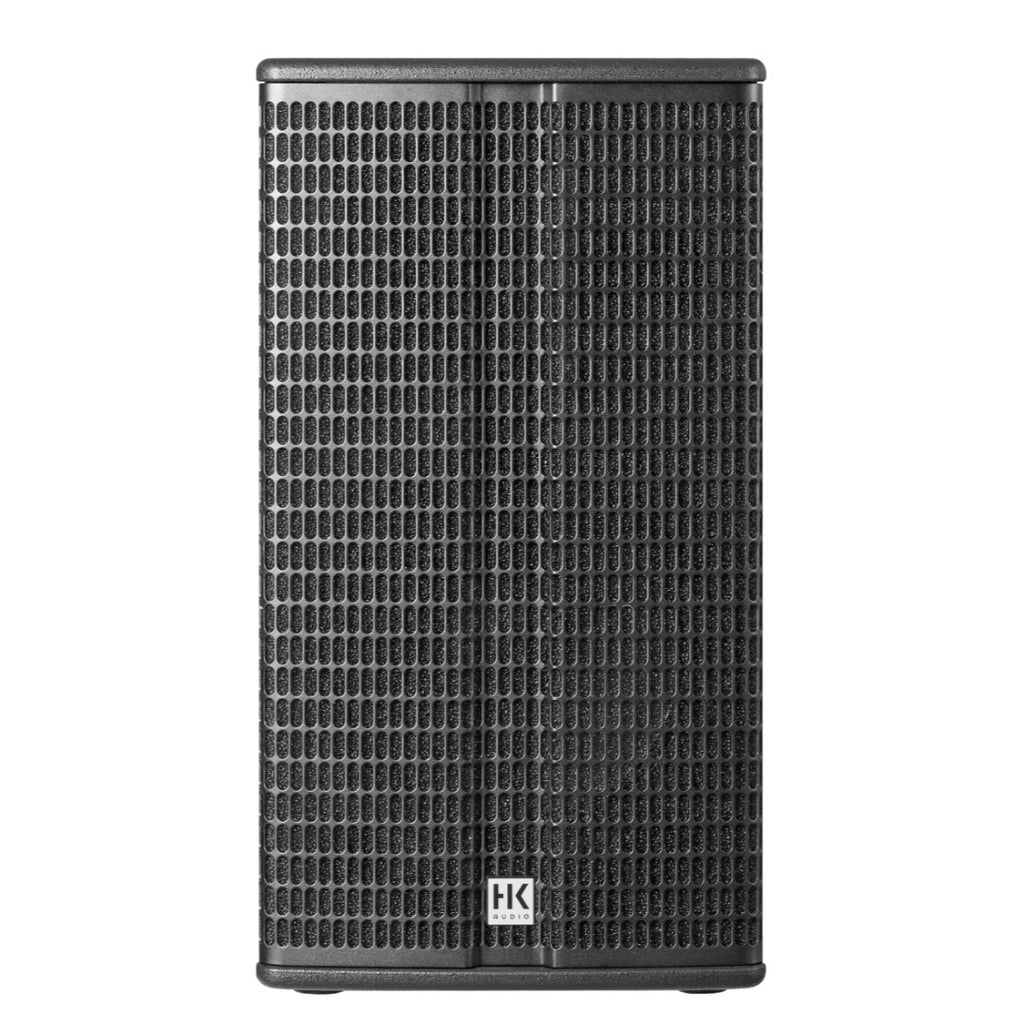

Linear 3 112 FA HK Audio 12-inch Fullrange Speaker
LINEAR 3 112 FA – Active full-range speaker
The active 12″/1″ full-range top is incredibly powerful with its 1,200 watts of power. The four different EQ presets – Bass Boost, Flat (LF), Flat (HMF) and Contour – also make the LINEAR 3 112 FA suitable for a wide range of applications and offer top performance and easy handling in every situation.
Features
- Active, powerful full-range top
- High amplifier output of 1,200 W class D bi-amped
- Balanced, high-resolution sound
- High sound pressure of 135 dB SPL for sound applications with up to 500 people
- Advanced DSP technology for high-end sound results, even without specialist PA knowledge
- “Intelligent Multiband Limiter” ensures consistent sound characteristics at every volume level
- FIR separation for transparent mid-frequencies
- Four different EQ presets for flexible applications
- No fatigue during listening thanks to low distortion factor
- Simple acoustic control of the system, even from the stage
- Accurate PA focus, reducing reflections from walls and ceilings
- Perfect combination options with the LINEAR SUB L SUB 1500 A and L SUB 1800 A subwoofers
Korte specificaties
| Housing | |
|---|---|
| Dimensions | 36 x 66 x 36.7 cm |
| Weight | 21.5 kg |
| Construction material | 16 mm MDF |
| Sound | |
|---|---|
| Crossover frequency | 2.3 kHz FIR X-over with 72 dB/oct. |
| Frequency response | -10 dB 58 Hz – 18 kHz |
| HF driver | 1", 1" voice coil |
| LF driver | 1x 12", 2" voice coil |
| SPL | 126 dB half space (@ 10 % THD) |
| Beam angle | 90° x 55° CD horn |
| Power | |
|---|---|
| Max SPL sound pressure level | 135 dB half space (@ 10 % THD) |
| Peak power | 1200 W |
| RMS power | 600W |
| Amplifier configuration | bi-amp |
| Amplifier class | D |
| Power supply | |
|---|---|
| Power supply | 3 A / 220-240 V (6 A / 100-120 V) |

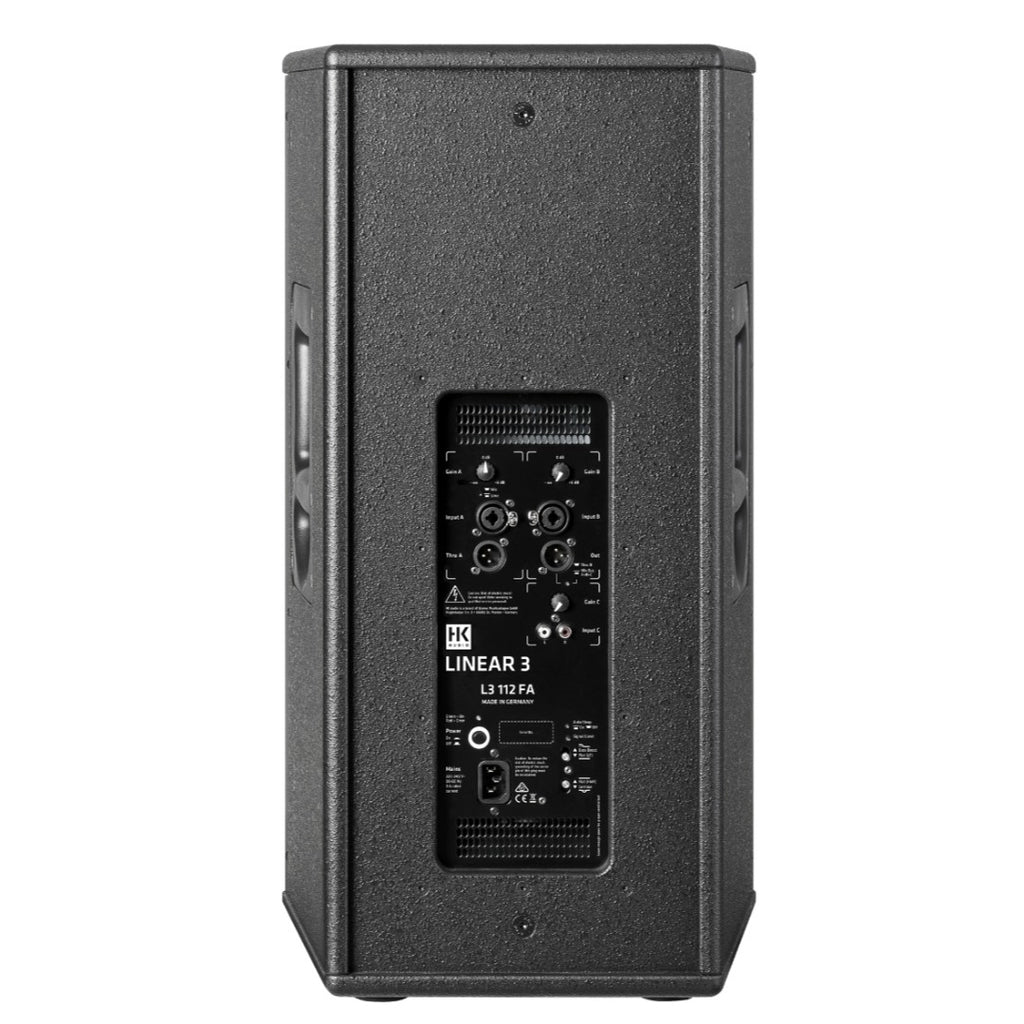

| Audio I/O | |
|---|---|
| Inputs | 2x XLR combo balanced, 1x Stereo RCA |
| Outputs | 2x XLR Thru balanced, 1x XLR Mix Out |
