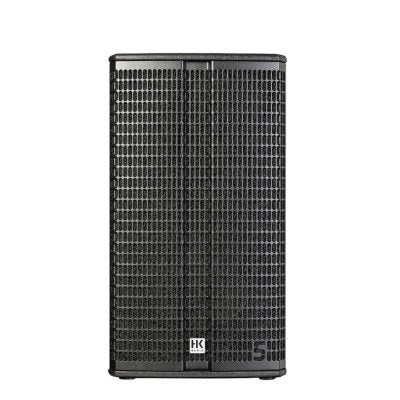

Linear 5 MKII 112 FA HK Audio 12-inch Fullrange Speaker
Linear 5 MKII 112 FA HK Audio 12-inch Fullrange Speaker
The LINEAR 5 MK II FA models are powerful full-range mid/high units with a transparent, full-bodied sound. Thanks to their longer horns, they achieve impressive throw distances. As a stereo system, the FA models provide the necessary additional low end and punch. Thanks to a special filter adapted to the characteristics of the LINEAR 5 MK II subwoofers and selectable via a preset, the LINEAR 5 MK II FA models can be used in no time as system mid/high units with high usable power in different systems. The horn spread facilitates horizontal and vertical clustering. With the optional TB-45N or TB-45NQ tilt brackets on the MultiGrips, the FA models can be easily and safely rigged.
Korte specificaties
| Housing | |
|---|---|
| Dimensions | 37 x 67 x 36.5 cm |
| Weight | 21.9 kg |
| Construction material | multiplex/MDF |
| Sound | |
|---|---|
| Crossover frequency | 1.6 kHz FIR Crossover (72 dB/oct.) |
| Frequency response | +/-3 dB 70 Hz – 12 kHz |
| Frequency range | -10 dB 55 Hz – 19 kHz |
| HF driver | 1", 1.7" voice coil |
| LF driver | 1 x 12", 2.5" voice coil |
| SPL | 128 dB half space (70 Hz – 12 kHz) @ 10 % THD |
| Beam angle | 60° x 40° CD horn, roteerbare hoorn |
| Power | |
|---|---|
| Max SPL sound pressure level | 135 dB half space @ 10 % THD |
| Peak power | 1200 W |
| RMS power | 600 W |
| Amplifier configuration | Bi-amp |
| Amplifier class | D |
| Power supply | |
|---|---|
| Voltage | 1 A / 100–240 V |
| Audio I/O | |
|---|---|
| Inputs | 1 x XLR combo balanced |
| Outputs | Analog thru: 1 x XLR balanced + 1 x XLR balanced DSP out |
| Digital I/O | |
|---|---|
| DSP resolution | 24-bit |
| Network | |
|---|---|
| Network interface | EtherCON RJ45, 1 x In |
