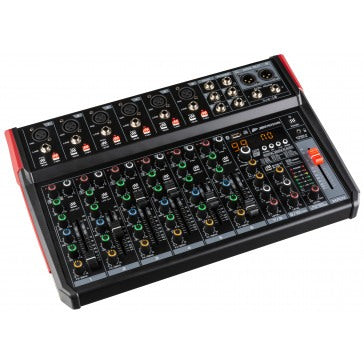

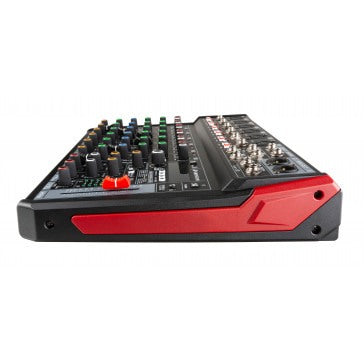

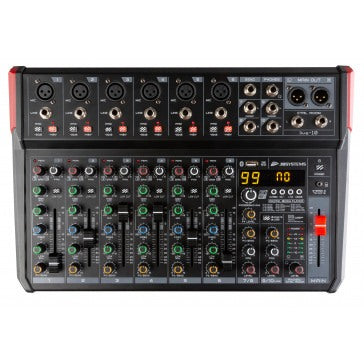

LIVE-10 PA Mixer JB Systems

The JB Systems LIVE-10 is a great solution for controlling music for small-scale gigs. Connect up to 6 microphones and/or 8 line sources, play media via USB or Bluetooth and use the internal effects for a versatile, dynamic show. Microphone inputs feature switchable +48V phantom power, so you can connect sensitive condenser microphones for instruments or vocals. Each mono channel also has a -20 dB PAD switch to mute loud instruments. You can also use the media player as a mono MP3 recorder to record your mix directly to a connected USB stick. You can also connect the LIVE-10 to your computer via USB to play media or record your mix.

• Versatile PA mixer in a handy compact format.
• Powered by a 5V USB connector.
• Combine it with a power bank and battery powered speakers to be 100% mobile.
• 10 inputs over 8 channels (6 mic/line, 1 mono/stereo line, 1 mono/stereo line /USB/player).
• The USB connector on the top panel is Bidirectional (for mono recording or stereo playback via PC/Mac).
• Internal WMA, WAV, FLAC, APE and MP3 media player for USB memory sticks.
• The media player can also be used as a mono mp3 recorder (128kbps).
• Integrated Bluetooth receiver.
• Internal 32bit DSP-effect unit with 99 effect variations.
• Input control on all the MONO channels:
  • Individual 48V Phantom Power switch on each mono channel !
  • -20dB PAD switch
  • Gain
  • Pan
  • Low Cut filter switch
  • Treble, semi-parametric mid, bass
  • Effect send
  • Channel level fader
• Balanced Master output.
• Headphones + control room output with level control
