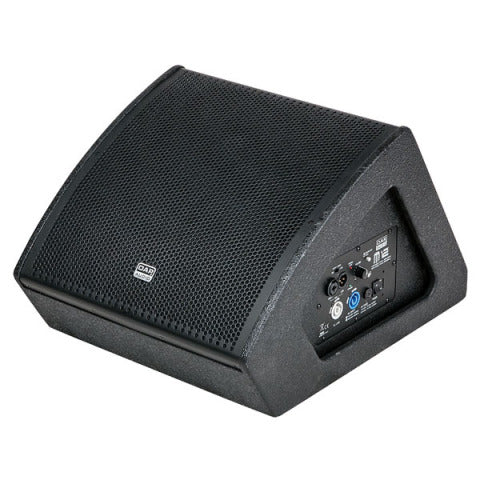

The active Bi-Amp M-series wedge speakers are the stage solution for optimal monitoring. A compact, light-weight and innovative designed housing, combined with a powerful Class D amplifier, high-end components and good electronic protections make this a plug & play speaker for all high demanding professional musicians. The 60° wedge design and coaxial speaker ensures a transparent and direct ‘in your face' sound with consistent coverage. Integrated handles protect your connections and also make it very easy to handle them in most difficult stage settings.

FEATURES:

• Compact and lightweight
• Powerfull 415W Class D amplifier

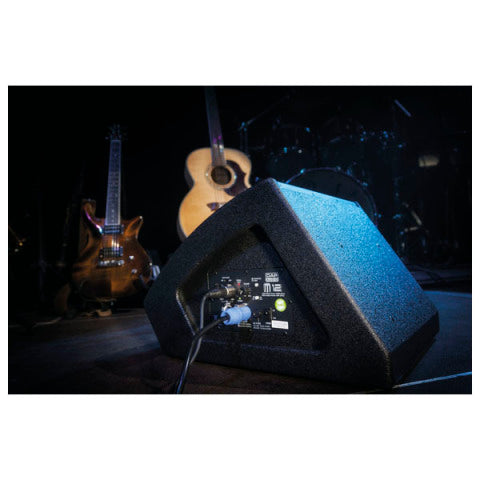

• Easy daisy chain with XLR and Powercon
• Stage proof design with rugged metal protective grill

SPECIFICATIONS:

• System: Active Bi-Amp 12" Monitor
• Output Power: Class D, 350W LF power, 65W HF power
• Maximum SPL @1M: 124dB/ 127dB Peak
• Frequency resp. (-10dB): 65Hz – 20kHz
• Transducer Low: 12" Woofer, 2,56" Voice Coil
• Transducer High: 1" Neodymium Compression Driver,
• 1" Voice Coil
• Nom Dispersion (HxV): 70° x 70° (-6dB)
• Audio Input: XLR/ Jack Combo balanced
• Link Output: XLR-male balanced

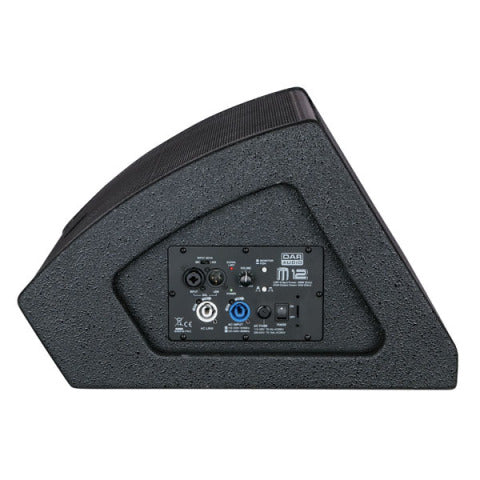

• External Controls: Mic/Line switch, EQ Preset switch (Monitor/FOH),
• Ground Lift switch, Volume control,
• Signal-Limiter indication LED,
• Power Switch with green LED
• Electronic Protection: Thermal/ Overload/ Limiter/ Compressor

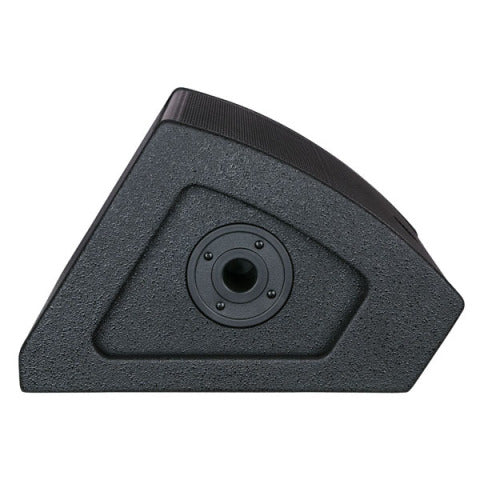

• Mounting: Floor and Integrated 35mm Pole Socket
• Power Supply: AC 100V~240V, 50 Hz/60Hz (SPSU)
• Power Input: Neutrik Powercon
• Housing: Wedge design 15 mm MDF with
• Scratch Resistant Black Paint
• Dimensions (HxWxD): 393 x 391 x 375 mm
• Net Weight: 14,4 kg

DOWNLOADS:

Manuals

•  D3661_MANUAL_GB_V1
