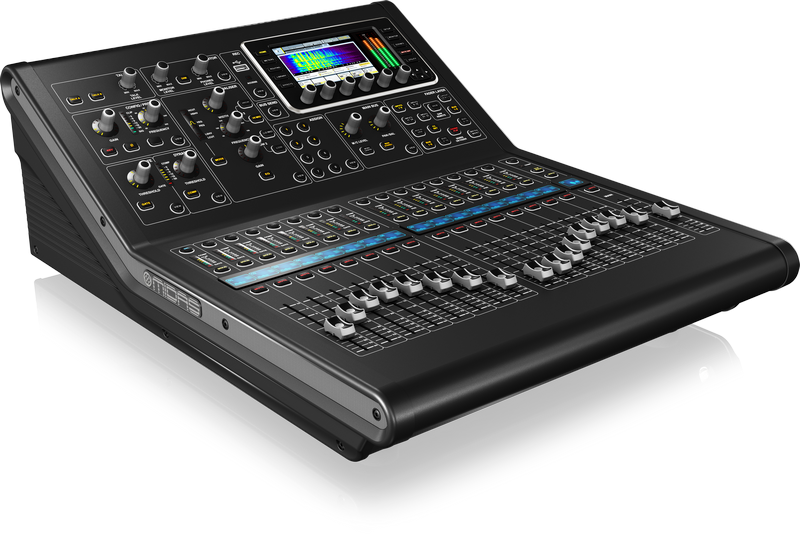

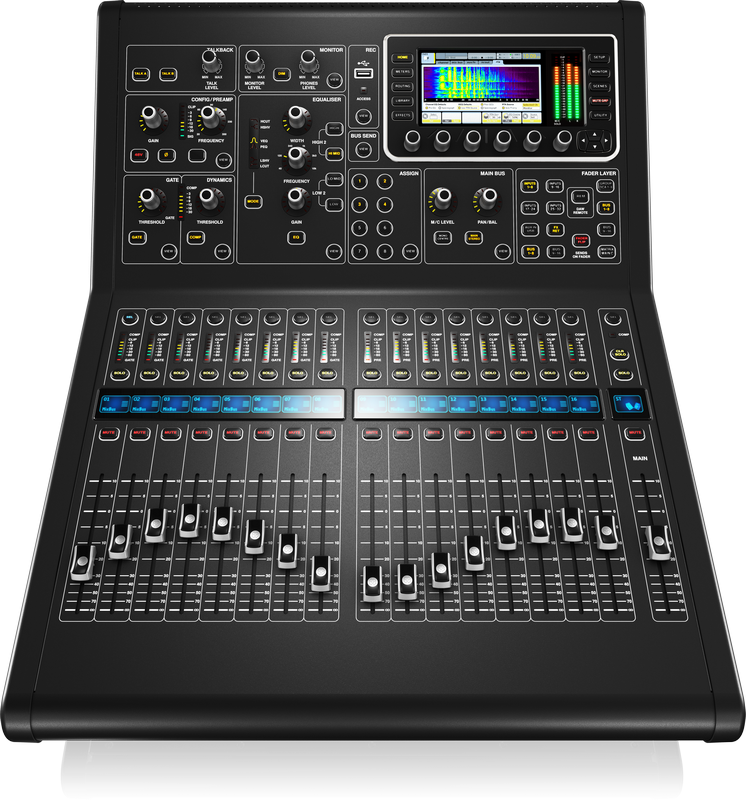

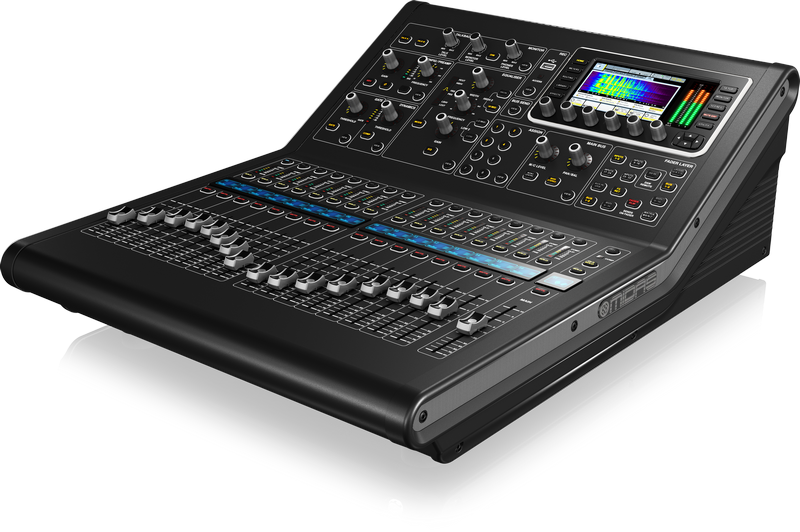

M32R LIVE MIDAS - DIGITAL MIXING DESK

Digital Console for Live and Studio with 40 Input Channels, 16 Midas PRO Microphone Preamplifiers and 25 Mix Buses and Live Multitrack Recording

Features

• Live performance and studio recording digital console with up to 40 simultaneous input channels
• 16 award-winning Midas PRO microphone preamplifiers
• 25 time-aligned and phase-coherent mix buses
• AES50 networking allows up to 96 inputs and 96 outputs
• 32 bi-directional channels of live recording/playback on dual SD/SDHC (cards not included)
• Up to 3 hours of 32 channel PCM recording in one session
• - stored as uncompressed WAV files
• High-performance aluminium and high-impact steel structure
• Rack mount brackets included for ultimate flexibility
• 40 bit floating point digital signal processing
• 8 DCA and 6 mute groups
• 8 digital signal processing effects engines
• 17 Midas PRO motor faders
• Daylight viewable 5” full colour TFT display screen
• 32 x 32 channel USB 2.0 audio interface
• DAW remote control emulations of Mackie Control* and HUI* protocols
• Optional wireless remote control with Midas Apps for iPhone* and iPad*
• Auto-ranging universal switch-mode power supply
• 10-Year Warranty Program*
• Designed and engineered in the U.K.

Specifications
Processing

• Input Processing Channels 32 Input Channels, 8 Aux Channels, 8 FX Return Channels
• Output Processing Channels 8 / 16
• 16 aux buses, 6 matrices, main LRC 100
• Internal Eff ects Engines (True Stereo / Mono) 8 / 16
• Internal Show Automation (structured Cues / Snippets) 500 / 100
• Internal Total Recall Scenes (incl. Preamplifi ers and Faders) 100
• Signal Processing 40-Bit Floating Point
• A/D Conversion (8-channel, 96 kHz ready) 24-Bit, 114 dB Dynamic Range, A-weighted
• D/A Conversion (stereo, 96 kHz ready) 24-Bit, 120 dB Dynamic Range, A-weighted
• I/O Latency (Console Input to Output) 0.8 ms
• Network Latency (Stage Box In > Console > Stage Box Out) 1.1 ms

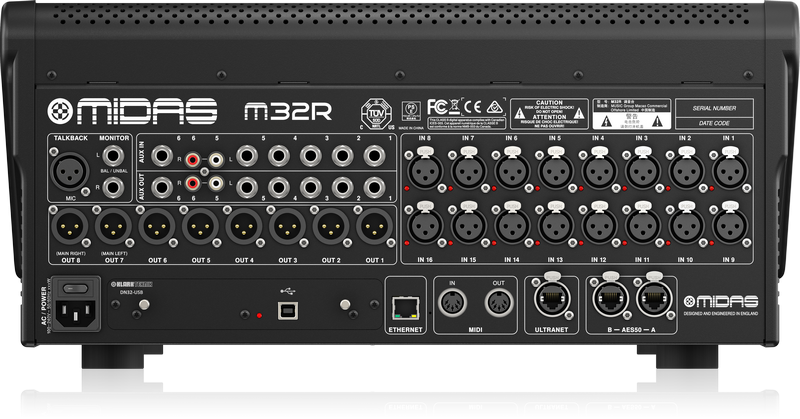

Connectors

• MIDAS PRO Series Microphone Preamplifi er (XLR) 16
• Talkback Microphone Input (XLR) 1
• RCA Inputs / Outputs 2 / 2
• XLR Outputs 8
• Monitoring Outputs (XLR / ¼" TRS Balanced) 2/2
• Aux Inputs/Outputs (¼" TRS Balanced) 6 / 6
• Phones Output (¼" TRS) 1 (Stereo)
• AES50 Ports (KLARK TEKNIK SuperMAC) 2
• Expansion Card Interface 32 Channel Audio Input / Output
• ULTRANET P-16 Connector (No Power Supplied) 1
• MIDI Inputs / Outputs 1 / 1
• USB Type A (Audio and Data Import / Export) 1
• USB Type B, rear panel, for remote control 1
• Ethernet, RJ45, rear panel, for remote control 1

Mic Input Characteristics

• Design MIDAS PRO Series
• THD+N (0 dB gain, 0 dBu output) < 0.01% unweighted
• THD+N (+40 dB gain, 0 dBu to +20 dBu output) < 0.03% unweighted
• Input Impedance (Unbalanced / Balanced) 10 kΩ / 10 kΩ
• Non-Clip Maximum Input Level +23 dBu
• Phantom Power (Switchable per Input) +48 V
• Equivalent Input Noise @ +45 dB gain (150 Ω source) -125 dBu 22 Hz-22 kHz, unweighted
• CMRR @ Unity Gain (Typical) > 70 dB
• CMRR @ 40 dB Gain (Typical) > 90 dB

Input/Output Characteristics

• Frequency Response @ 48 kHz Sample Rate 0 dB to -1 dB 20 Hz – 20 kHz
• Dynamic Range, Analogue In to Analogue Out 106 dB 22 Hz - 22 kHz, unweighted
• A/D Dynamic Range, Preamplifi er and Converter (Typical) 109 dB 22 Hz - 22 kHz, unweighted
• D/A Dynamic Range, Converter and Output (Typical) 109 dB 22 Hz - 22 kHz, unweighted
• Crosstalk Rejection @ 1 kHz, Adjacent Channels 100 dB
• Output level, XLR Connectors (Nominal / Maximum) +4 dBu / +21 dBu
• Output Impedance, XLR Connectors (Unbalanced / Balanced) 50 Ω / 50 Ω
• Input impedance, TRS Connectors (Unbalanced / Balanced) 20 kΩ / 40 kΩ
• Non-Clip Maximum Input Level, TRS Connectors +21 dBu
• Output Level, TRS (Nominal / Maximum) +4 dBu / +21 dBu
• Output Impedance, TRS (Unbalanced / Balanced) 50 Ω / 50 Ω
• Phones Output Impedance / Maximum output Level 40 Ω / +21 dBu (Stereo)
• Residual Noise Level, Out 1-16 XLR Connectors, Unity Gain -85 dBu 22 Hz-22 kHz, unweighted
• Residual Noise Level, Out 1-16 XLR Connectors, Muted -88 dBu 22 Hz-22 kHz, unweighted
• Residual Noise Level, TRS and Monitor out XLR Connectors -83 dBu 22 Hz-22 kHz, unweighted

DN32-LIVE USB Interface

• USB 2.0 high speed, type-B (audio/MIDI interface) 1
• USB input / output channels, duplex 32, 16, 8, 2
• Windows DAW applications (ASIO, WASAPI and WDM audio device interface) Win 7 32/64-bit, Win10 32/64-bit
• Mac OSX DAW applications (Intel CPU only, no PPC support, CoreAudio) Mac OSX 10.6.8**, 10.7.5, 10.8, 10.9, 10.10, 10.11, 10.12
• DN32-LIVE SD Card Interface
• SD card slots, SD/SDHC 2
• SD/SDHC supported fi le system FAT32
• SD/SDHC card capacity, each slot 1 to 32 GB
• Battery for power blackout protection (optional) CR123A Lithium cell
• SD card input / output channels 32, 16, 8
• Sample rates (console clock) 44.1 kHz / 48 kHz
• Sample word length 32 bit PCM
• File format (uncompressed multi-channel) WAV 8, 16 or 32 channels
• Maximum recording time (32 ch, 44.1 kHz, 32-bit on two 32 GB SDHC media) 200 min
• Typical performance recording or playback 32 channels on class 10 media, 8 or 16 channels on class 6 media

Display

• Main Screen 5" TFT LCD, 800 x 480 Resolution, 262k Colours
• Channel LCD Screen 128 x 64 LCD with RGB Colour Backlight
• Main Meter 18 Segment (-45 dB to Clip)

Power

• Switch-Mode Power Supply Auto-Ranging 100-240 VAC (50/60 Hz) ± 10%
• Power Consumption 70 W

Physical

• Standard Operating Temperature Range 5°C – 40°C (41°F – 104°F)
• Dimensions 478 x 617 x 208 mm (18.8 x 24.3 x 8.2")
• Weight 14.3 kg (31.5 lbs)
