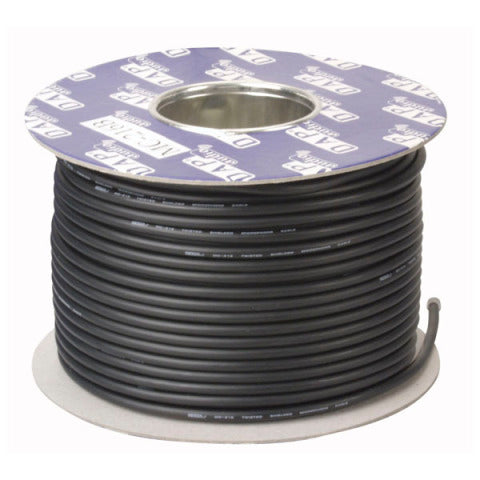

MC-216 MICROPHONE/LINE CABLE 100M - DAP-AUDIO

Specifications

• Conductor drains Ø mm: OFC 28 x 0,10
• Conductor insulation: PE red+blue
• Conductor insulation: 1,5 (Ø in mm)
• Filler material: paper + cotton yarn
• 1st shield: OFC twisted 83 x 0,12
• Outer isolation: PVC black, blue, red, yellow, green
• Outer isolation Ø in mm: 6
• Conductor resistance: 80 Ohm/Km
• Shield resistance: 25 Ohm/Km
• Capacity Inner conductor: 60 pF/m
• Cap. Inner conduct. Shield / Inner conduct.: 78 pF/m
• Working temperature min. / max.: -20~60 °C
• Working Voltage overflash: 30V
• Nom Impedance: 110 Ohm
