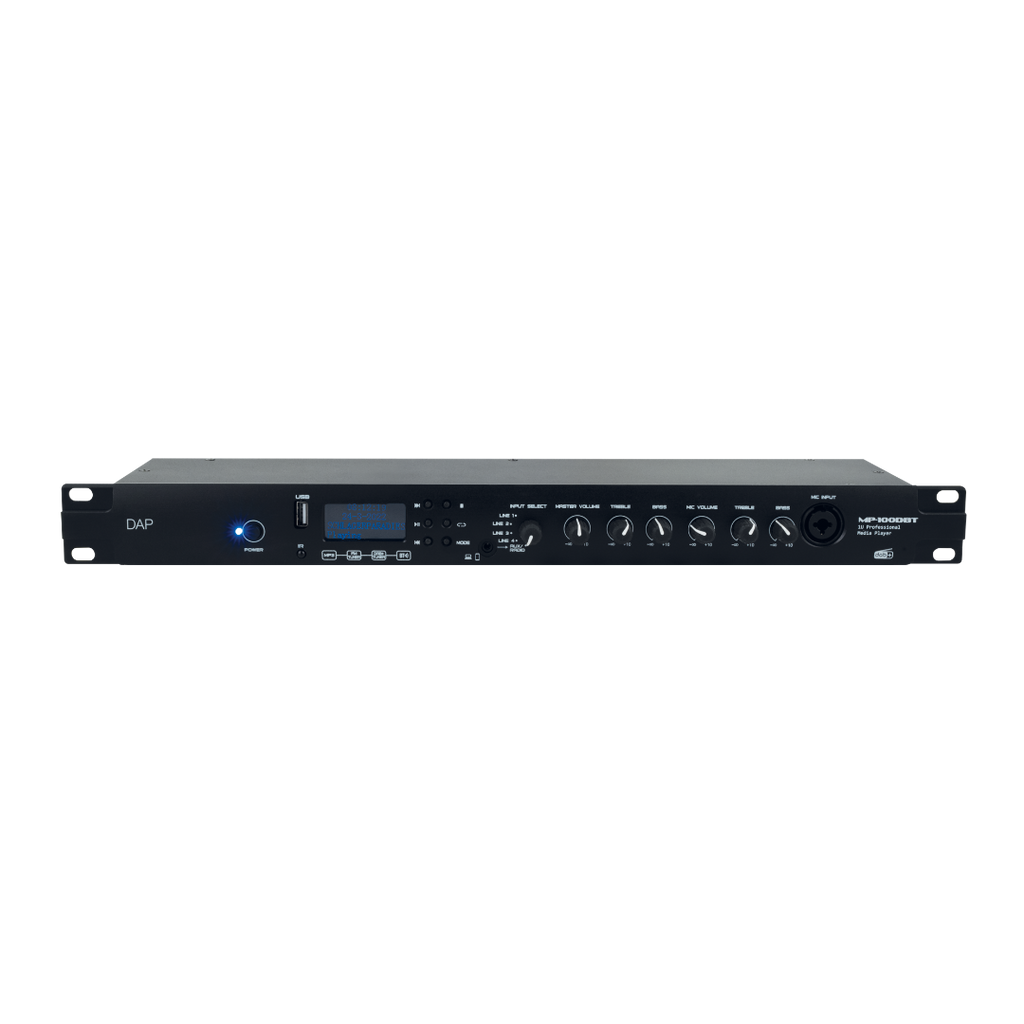

MP-100DBT DAP Mediaspeler
MP-100DBT DAP Mediaspeler with DAB+
1U Media Player with DAB+, FM Radio, USB/MP3 player, and Bluetooth

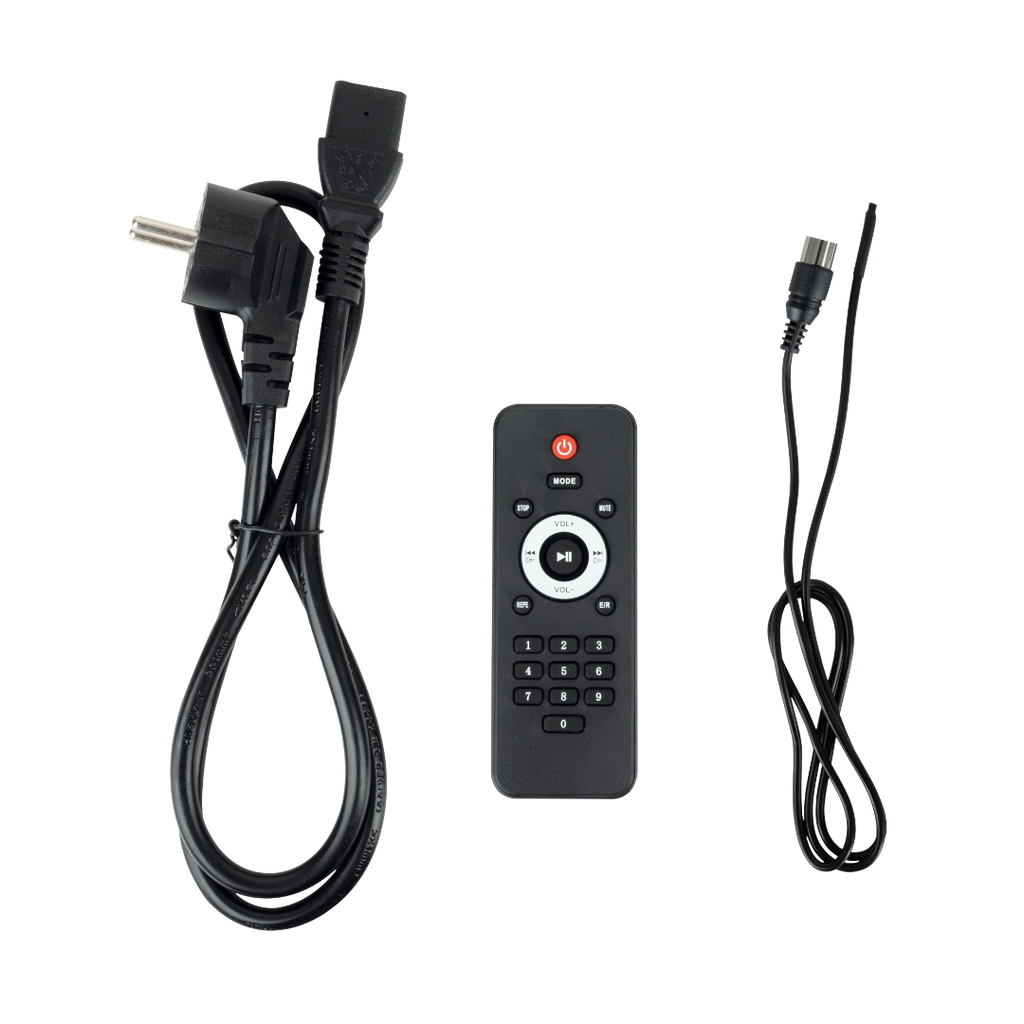

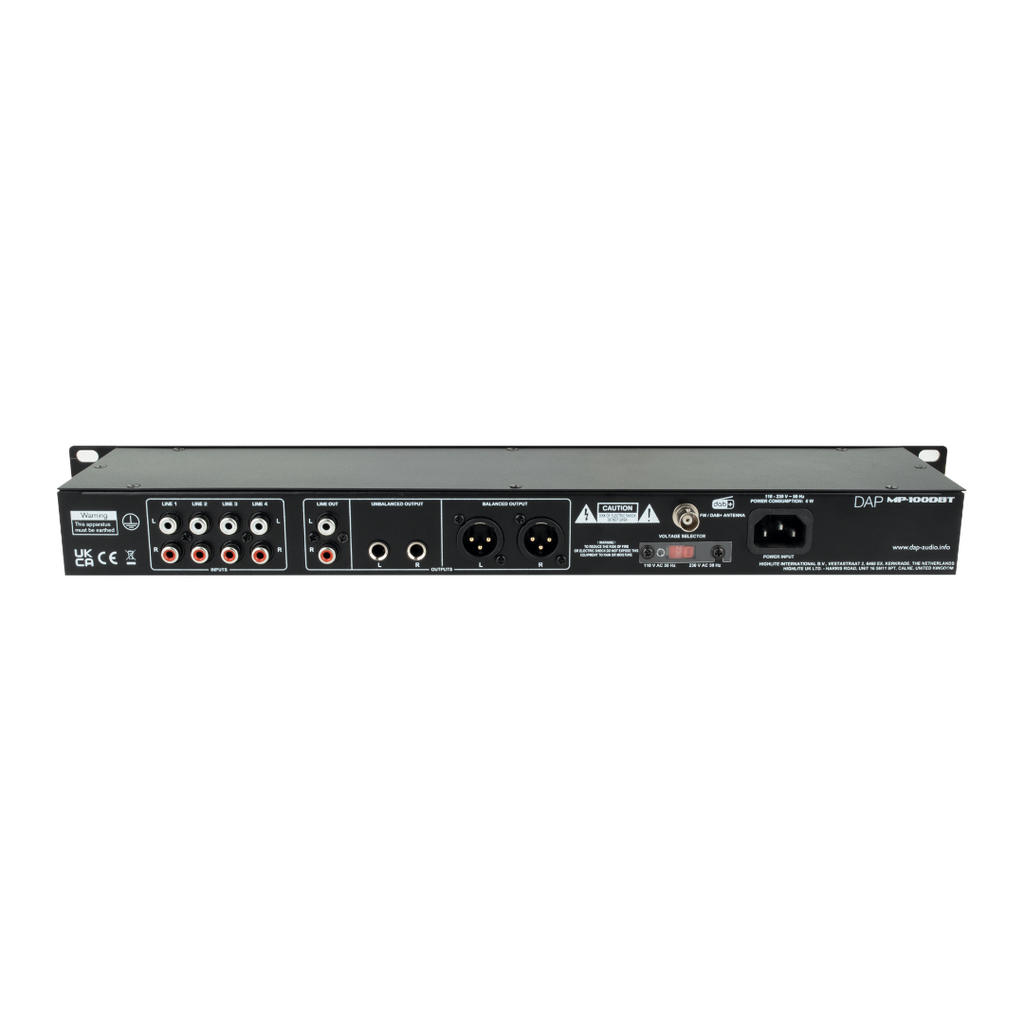

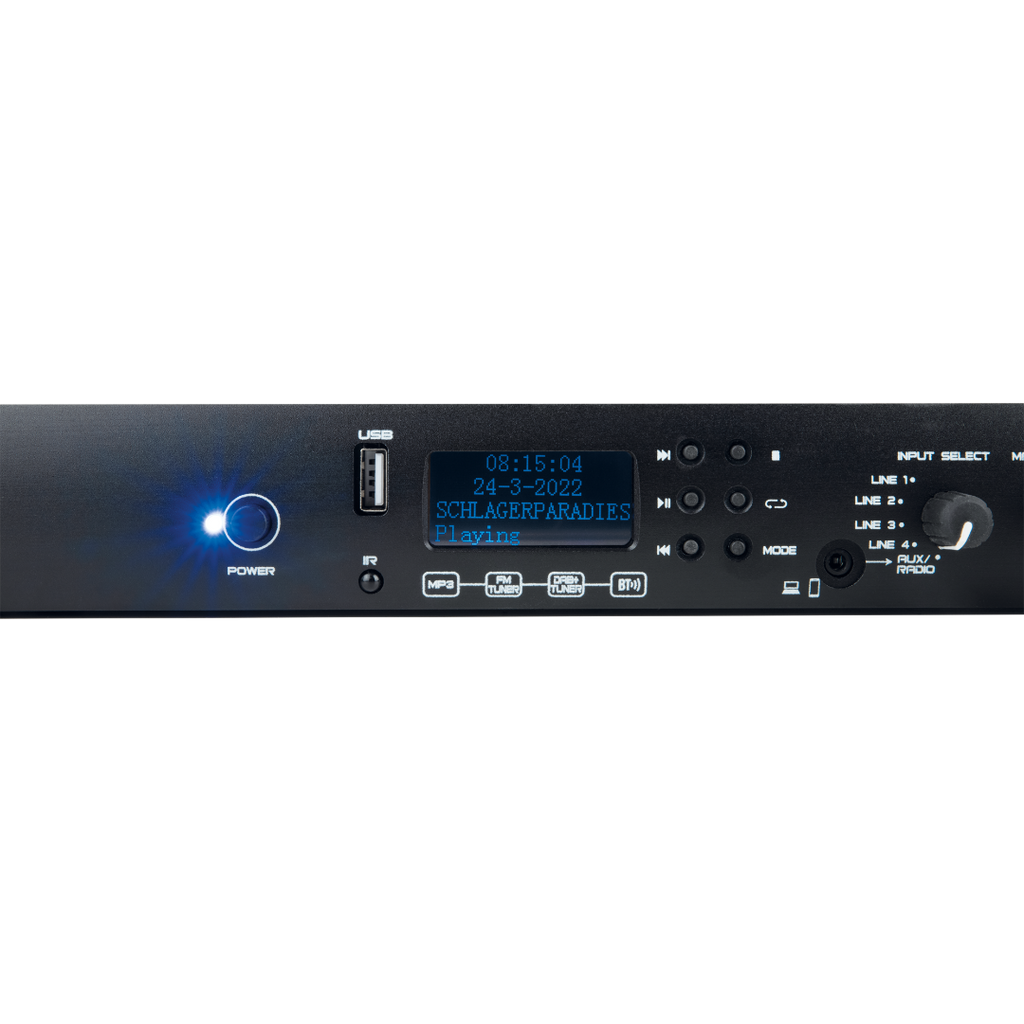

The DAP MP-100DBT is a versatile media player with DAB+ and FM radio, Bluetooth 4.2, and MP3-playing capabilities, intended for stores, cafés, restaurants, and sports canteens. It is equipped with four RCA line inputs on the back, and on the front a USB-A connector for a USB stick or external drive (FAT32/up to 32 GB), a mini-jack line input for phones or laptops, and an XLR/combi microphone input. Line and mic inputs both have independent treble and bass EQ and volume knobs. The DAB+ and FM radio, as well as the MP3 player can be controlled through the display and buttons on the front, or via the included IR remote controller. The MP-100DBT has balanced XLR outputs as well as unbalanced RCA and jack outputs.
Korte specificaties
| Housing | |
|---|---|
| Dimensions | 44 x 104 x 483 mm |
| Weight | 1.65 kg |
| Rack height | 1 U |
| Power supply | |
|---|---|
| Consumption | 9 W |
| Audio I/O | |
|---|---|
| Inputs | Mono Inputs: 1 x Mono Input Connector 3-pin XLR, TRS balanced 6.3 mm Stereo Inputs: 4 x Stereo Input Connector RCA, TRS balanced 3.5 mm Auxiliary Inputs: 1 x Auxiliary Input Connector, TRS balanced 3.5 mm |
| Outputs | Main Outputs: 1 x Main Output Connector, 3-pin XLR, RCA, TS unbalanced 6.3 mm |
