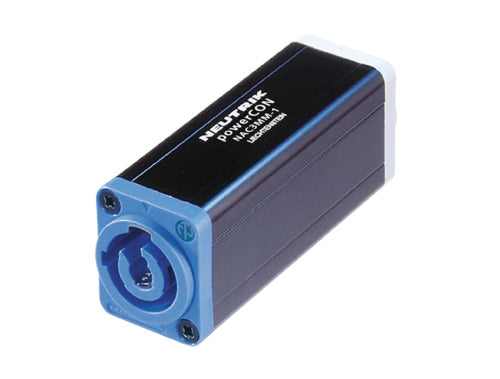

NAC3MM-1 NEUTRIK Powercon Coupler
Regular price
€29,90
Unit price
per
NEUTRIK POWERCON COUPLER NAC3MM-1
The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact.
It replaces appliance couplers ...
All product information
Op voorraad (5)
Delivery
Available
S2Store Genk (BE)
Available
Plus- en minpunten
Omschrijving
NAC3MM-1 NEUTRIK Powercon Coupler
NEUTRIK POWERCON COUPLER NAC3MM-1
The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact.
It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!
Technical Specifications:
|
Product
|
|
|
Title
|
NAC3MM-1
|
|
Connection Type
|
Adapter
|
|
Gender
|
male
|
|
Electrical
|
|
|
Contact resistance
|
≤ 3 mΩ
|
|
Dielectric strength
|
4 kVdc
|
|
Insulation resistance
|
> 0.1 GΩ (after damp heat test IEC 68-2-30)
|
|
Rated current per contact
|
20 A rms
|
|
Rated voltage
|
250 V ac
|
|
Mechanical
|
|
|
Lifetime
|
> 1000 mating cycles
|
|
Wiresize
|
|
|
Locking device
|
Quick Lock
|
|
Material
|
|
|
Contact plating
|
2 µm Ag
|
|
Locking element
|
Steel Ck67
|
|
Shell
|
Polyamide (PA 6.6 30 % GR)
|
|
Contacts
|
Bronze (CuNi1Si0.2)
|
|
Environmental
|
|
|
Flammability
|
UL 94 V-0
|
|
Protection class
|
IP 20 (mated)
|
|
Safety Requirements
|
EN/IEC 61984
|
|
Solderability
|
Complies with IEC 68-2-20
|
|
Temperature range
|
-30 °C to +80 °C
|
