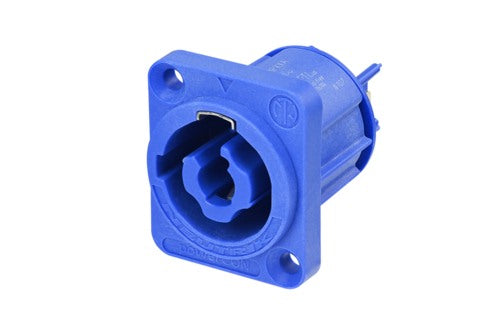

NAC3MPXXA Powercon Blue Chassis Neutrik
Neutrik Powercon Blue Chassis 220v
Chassis connector, power-in, 3/16'' flat tab terminals, blue
The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connec...
Delivery
S2Store Genk (BE)
Plus- en minpunten
Omschrijving
NAC3MPXXA Powercon Blue Chassis Neutrik
Neutrik Powercon Blue Chassis 220v
Chassis connector, power-in, 3/16'' flat tab terminals, blue
The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!
Korte specificaties
| Housing | |
|---|---|
| Color | Blauw |
| Power supply | |
|---|---|
| Voltage | Max. 250V |
| Power supply | Max. 20A |
| Features | |
|---|---|
| IP ingress protection rating | IP20 (Niet waterbestendig) |
