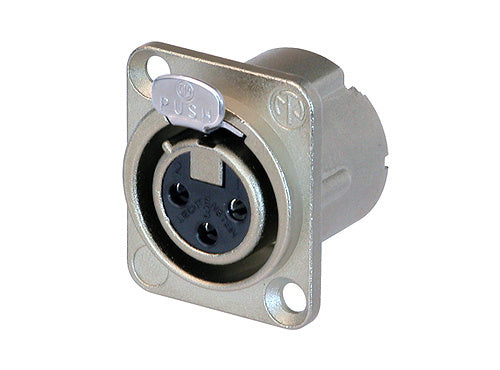

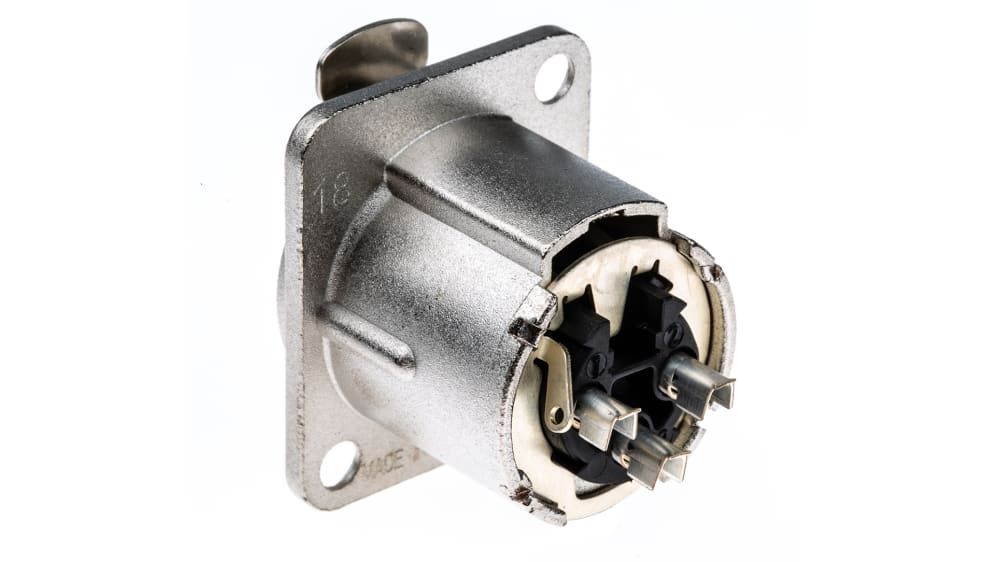

NC3FD-LX Neutrik 3p XLR Chassis D-size Female (Nickel)
Regular price
€6,04
Unit price
per
NC3FD-LX Neutrik 3p XLR Chassis D-size Female (Nickel)
3 pole female receptacle, solder cups, Nickel housing, silver contacts
The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the idea...
In stock (40)
Delivery
Available
S2Store Genk (BE)
Available
Plus- en minpunten
Omschrijving
NC3FD-LX Neutrik 3p XLR Chassis D-size Female (Nickel)
NC3FD-LX Neutrik 3p XLR Chassis D-size Female (Nickel)
3 pole female receptacle, solder cups, Nickel housing, silver contacts
The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector.
Features & Benefits
- All metal housing offers best overall RF protection and electromagnetic shielding
- Duplex ground contact for excellent contact integrity between chassis and cable connector
- Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Larger solder contacts for easier termination
- Optional connection to easily join pin1 to chassis ground
- D-style housing provides installation compatibility with industry standard D mounting dimensions
Korte specificaties
| Housing | |
|---|---|
| Color | Nikkel |
| Cable | |
|---|---|
| Operating temperature | -30 °C tot +80 °C |
| Features | |
|---|---|
| IP ingress protection rating | IP40 |
| Regulations | |
|---|---|
| Standards requirements and certifications | IEC 61076-2-103 |
