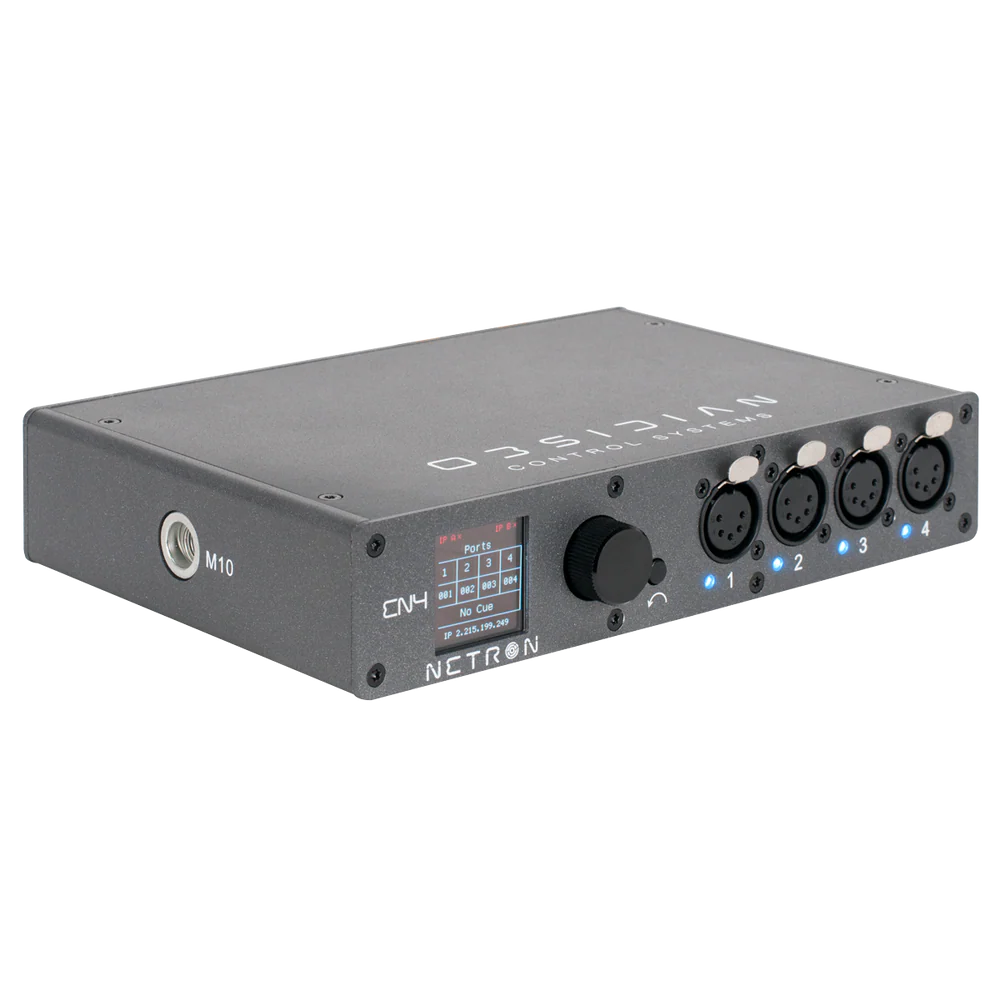

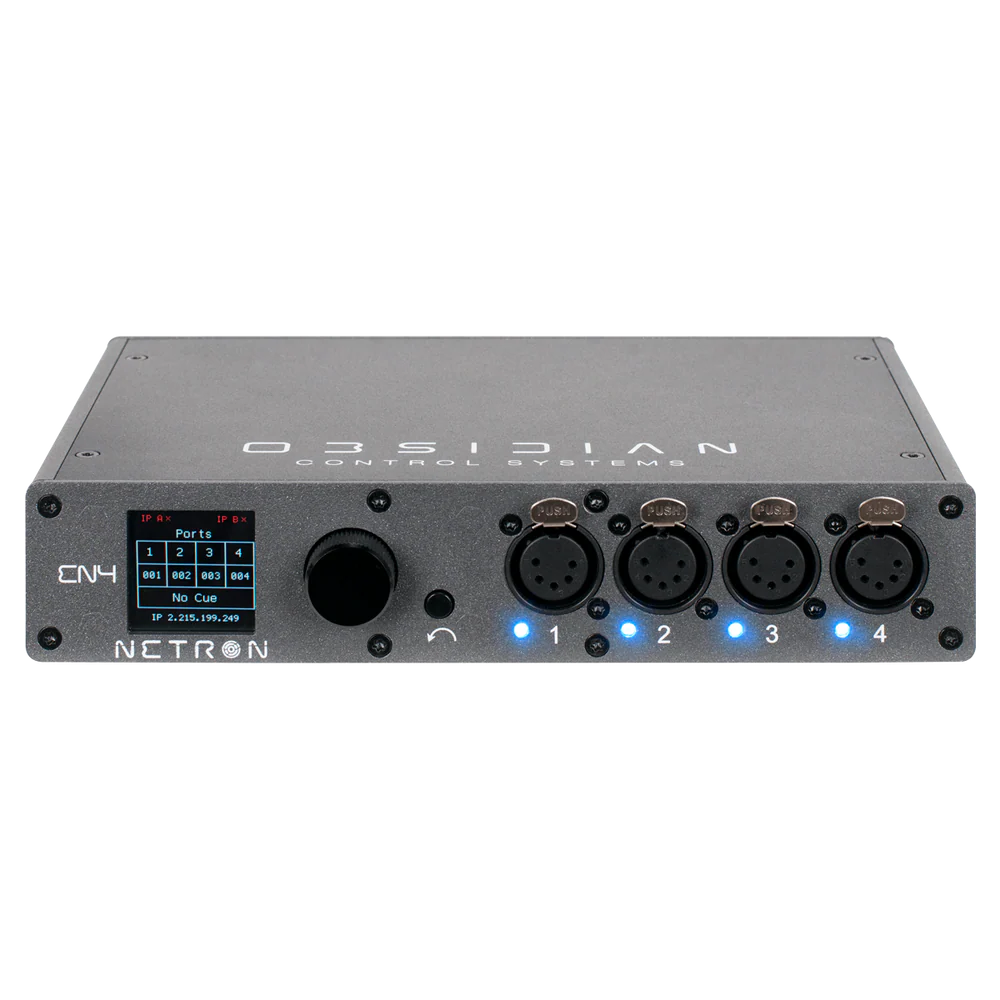

Netron EN4 Obsidian Ethernet to DMX Gateway

he Netron EN4 is a powerful Ethernet to DMX gateway with four RDM compatible ports. Designed for live production and installations with a rugged housing and high-performance processing it offers flexible mounting options to cover any situation.

As a four Universe Node the EN4 is ideally suited for the powerful ONYX NOVA Edition.

Features

• RDM, Art-Net and sACN support
• Factory and user presets for plug and play setups
• Line Voltage or PoE powered
• 1.8” OLED Display with rotary knob
• 99 Internal cues with fade and delay time
• Remote configuration via internal webpage
• Powder-coated aluminum ½ rack housing
• Unlocks ONYX NOVA 4-Universe License
• NETRON CLU for remote configuration and firmware updates

Mounting

• Standalone

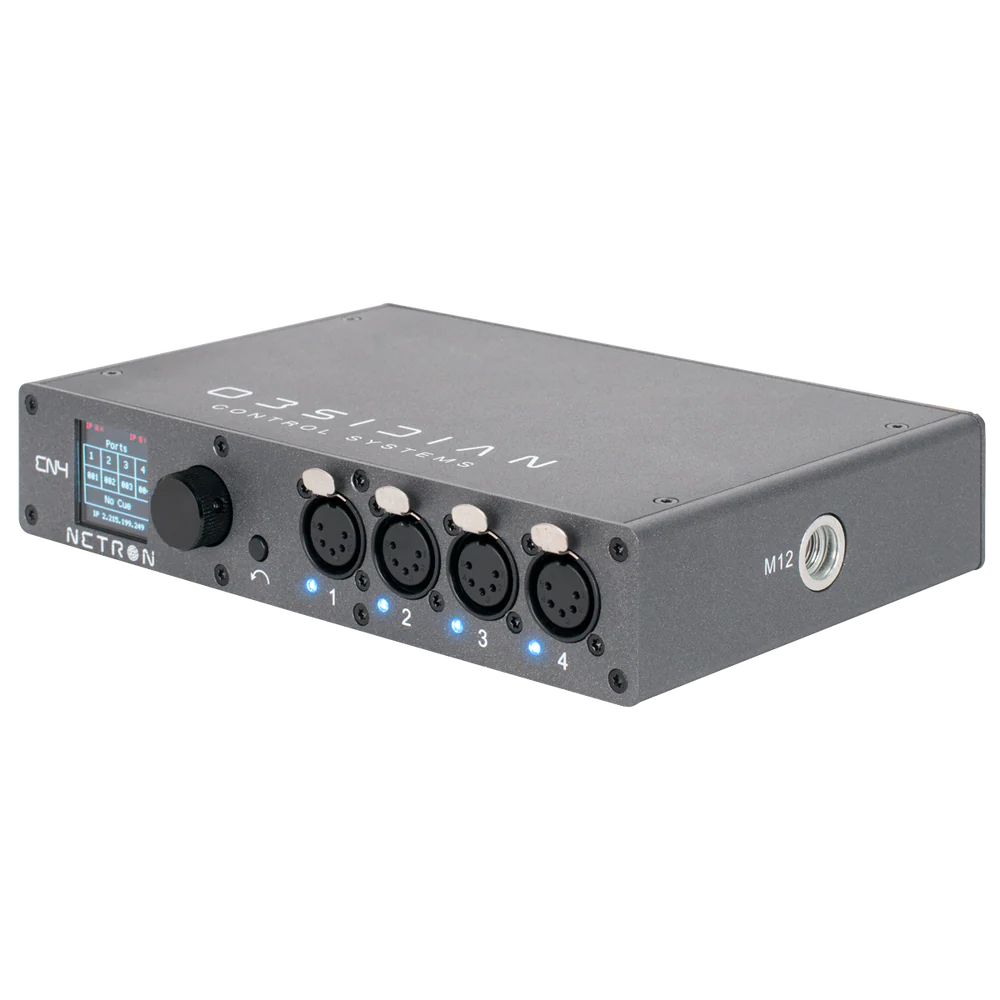

• Truss-mount (M10 or M12 mounting hole)

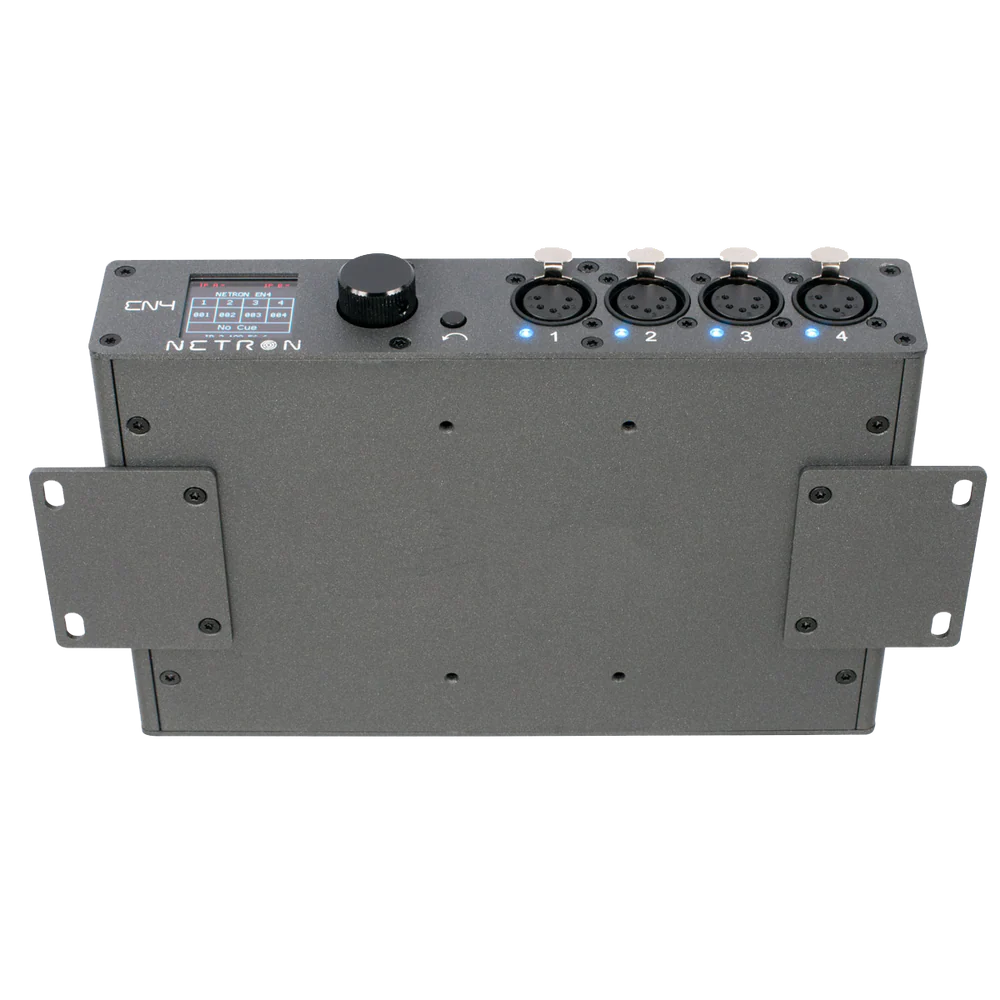

• Wall mount horizontal or vertical (included)

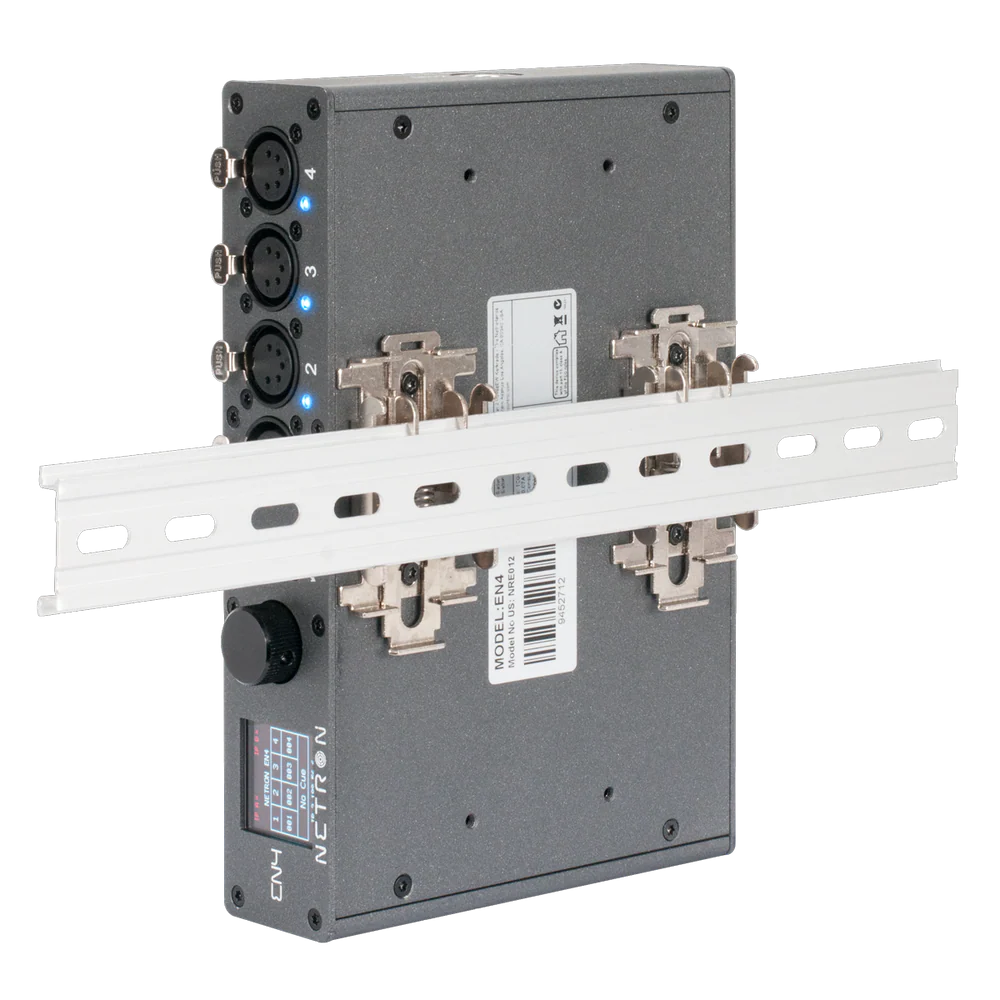

• DIN Rail horizontal or vertical (included)
• Rack mount option (requires NET Shelf)

Connections

• (4) 5pin XLR DMX/RDM ports
• Optical and galvanic isolation
• Bidirectional for DMX In and Output
• Full color OLED display
• Encoder w. Push to Select / Exit Button

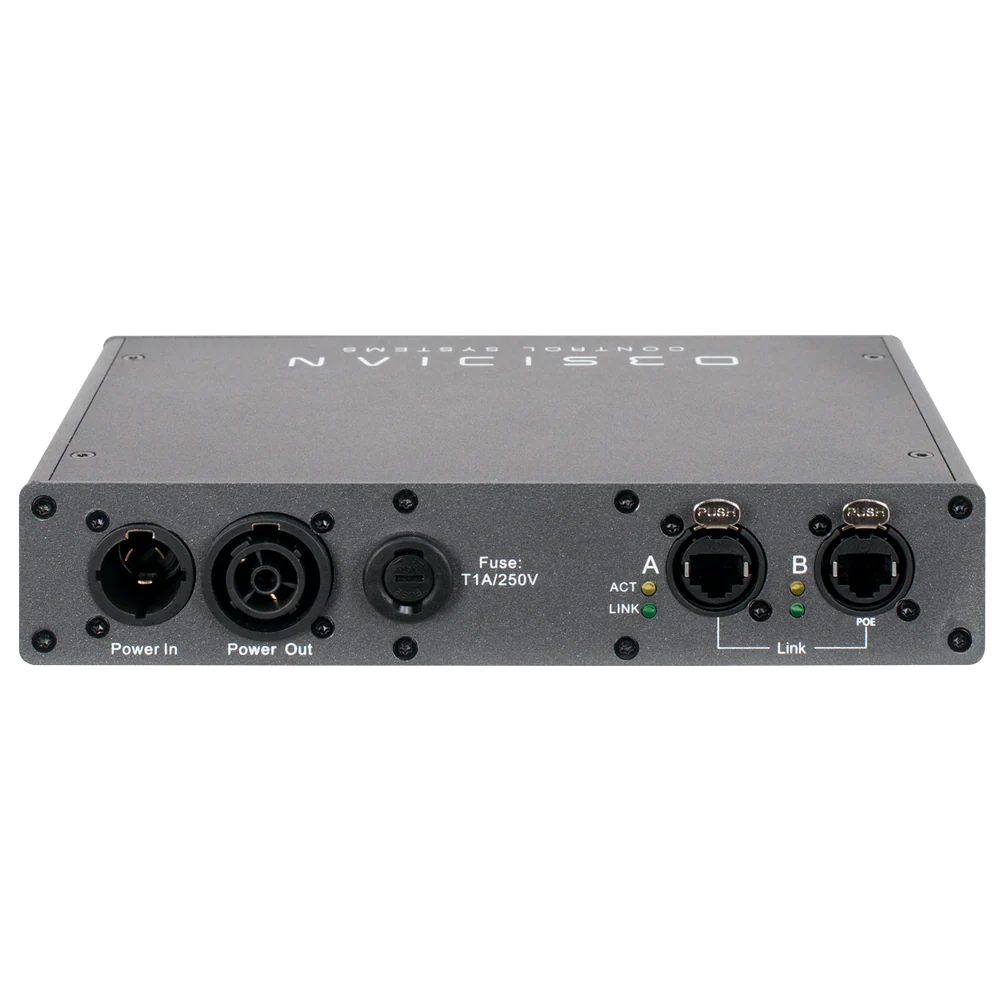

• IP65 Locking Power In/Thru
• (2) Locking RJ45 Ethernet network (Low Latency Switch)

Protocols

• sACN E1.31
• Art-Net
• DMX512-A E1.11 (In / Out)
• RDM E1.20
• Ethernet Port Speed 10/100/1000Mbps
• VLAN Group Support
• MDI / MDIX Port Sensing
• HTTP Remote Commands (Post, Get)
• HTML Web Remote

Included

• 1.5m LIp65 ocking power cable (EU or US version)
• (2) Wall mount plates
• (2) DIN-Rail clamps
