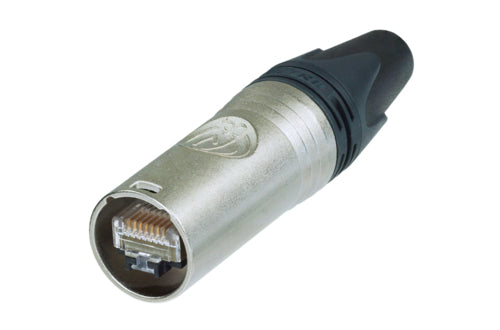

NE8MX6 NEUTRIK - etherCON CAT6A cable connector self-termination, for insulation diameter > 1.1 mm

The set NE8MX6 includes a cable plug carrier offering a robust metal shell, proven Neutrik chuck-type strain relief and a CAT6A RJ45 plug. The set is suitable for a cable diameter range of 7 mm to 9.5 mm and wire gauge of AWG24/1 - AWG22/1 (solid) or AWG24/7 - AWG22/7 (stranded).

Attention! Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

Features

Ruggedized connector with CAT6A component compliance according to ISO / IEC 11801 and TIA / EIA 568-C.2
PoE+ compliant according to 802.3at Type2
IP 65 protected when mated with NE8FDX-P6-W or NE8FDX-Y6-W
Rugged latch lock system million fold proven
Intermateable with the existing etherCON CAT5 range
Unique Neutrik chuck-type strain relief
Specifications

Electrial

Dielectric strength: 1 kVdc
Insulation resistance: > 0.5 GΩ
Rated current per contact: 1.5 A
Transmission performance: CAT6A, acc. TIA/EIA rating, CAT6A, acc. IEC/ISO/EN rating
Power over Ethernet: PoE+ acc. IEEE 802.3at
Mechanical

Cable O.D.: 7.0 - 9.5 mm
Lifetime: > 1000 mating cycles
Locking device: Latch lock
Insulation diameter: > 1.10 - 1.60 mm
Material

Bushing: PA / PU
Contact plating: Au
Shell: Zinc diecast (ZnAl4Cu1)
Strain relief: POM
Environmental

Protection class: IP 65 (in combination with NE8FDX-*6-W)
Temperature range: -40 °C to +70 °C
