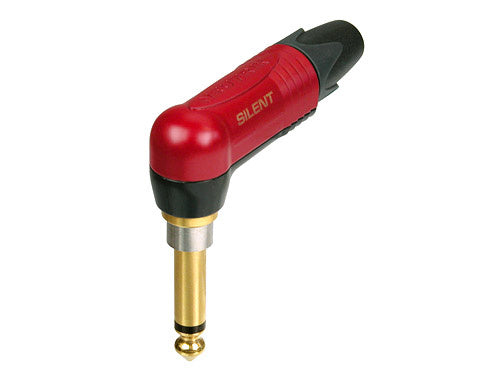

Neutrik 2 pole right angle 1/4" professional phone plug, gold plated contacts, red coating, silent switch.

• Avoid pops and squeals
• Hermetically sealed switching contacts
• Lifetime beyond 10'000 mating cycles
• Slim plug with industry proven and reliable chuck type cable strain relief
• Sleek attractive design for convenient handling and connections
• Rubber overlay on straight housing for best shock-protection and reliability
• L-D versions available which accommodates cable O.D. up to 8 mm

Attention !

• For use with instrument (guitar) applications only. Damage may occur if connected to amplifier output.
• Please note that the signal isn't muted with some types of active electric guitars which are equipped with tip-ring-sleeve jacks that tap to activate the guitar power supply.

Specifications:
Product

• TitleNP2RX-AU-SILENT
• Connection TypePlug
• Gendermale

Electrical

• Contact resistancedepends on mating connector mΩ
• Dielectric strength200 kVdc
• Insulation resistance> 2 GΩ (initial)
• Rated current per contactdepends on mating connector A
• Rated voltage< 50 V

Mechanical

• Cable O.D.4 - 7 mm
• Lifetime> 1000 mating cycles
• Wiresize1 mm²
• Wiresize18 AWG
• WiringSolder contacts

Material

• BushingPolyacetal (POM) + PU
• Contact plating0.2 µm Au
• ContactsBrass (CuZn39Pb3)
• InsertPolyamide (PA 6.6 30 % GR)
• ShellZinc diecast (ZnAl4Cu1)
• Shell platingPartly red coated, black chromium plated
• Strain reliefPolyacetal (POM)

Environmental

• Standard complianceIEC 60603-11 / EIA RS-453
• SolderabilityComplies with IEC 68-2-20
• Temperature range-20 °C to +65 °C

ATTENTION !

• For use with instrument (guitar) applications only. Damage may occur if connected to amplifier output.
• Please note that the signal isn't muted with some types of active electric guitars which are equipped with tip-ring-sleeve jacks that tap to activate the guitar power supply.

Downloads:

• Assembly Instruction
• Product Guide
• Functional Principle
• Drawing
