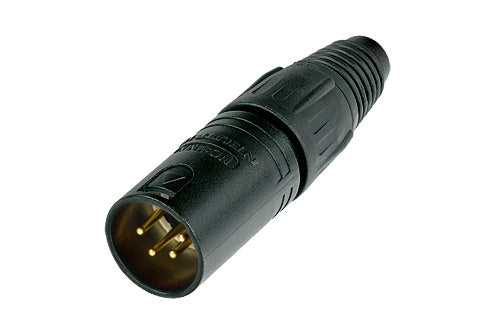

Neutrik 4 pole male XLR cable connector.

• Fibreglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables
• Compact design with sturdy diecast shell
• Easy to assemble with only 4 parts and no screws
• Rugged zinc diecast shell, long lasting and durable
• Chuck type strain relief system for secure clamping of cables
• Boot with rubber gland gives high protection against bending stresses
• Coloured rings and boots available for coding and marking
• UL recognized components

Specifications:
Product

• Title: NC4MX-B
• Connection Type: XLR
• Gender: male

Electrical

• Capacitance between contacts: ≤ 7 pF
• Contact resistance: ≤ 3 mΩ
• Dielectric strength: 1,5 kVdc
• Insulation resistance: > 10 GΩ (initial)
• Rated current per contact: 10 A
• Rated voltage: < 50 V

Mechanical

• Cable O.D.: 3.5 - 8.0 mm
• Insertion force: ≤ 20 N
• Withdrawal force: ≤ 20 N
• Lifetime: > 1000 mating cycles
• Wiresize: max. 1.5 mm²
• Wiresize: max. 16 AWG
• Wiring: Solder contacts
• Locking device: Latch lock

Material

• Boot: Polyurethan
• Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
• Contacts: Brass (CuZn39Pb3)
• Insert: Polyamide (PA 6.6 30 % GR)
• Locking element: Zinc diecast (ZnAl4Cu1)
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Black chromium
• Strain relief: Polyacetal (POM)

Environmental

• Approvals: UL
• Flammability: UL 94 HB
• Standard compliance: IEC 61076-2-103
• Protection class: IP 40
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 °C to +80 °C

Downloads:

• Assembly Instruction - XLR X Series
• Product Guide - Section XLR
• UL Certificate of Compliance
• Drawing NC4MX
