ORBIT 11 PALMER 3-way Coaxial Studio Monitor
Regular price
€798,00
Unit price
per
ORBIT 11 PALMER 3-way Coaxial Studio Monitor
The Palmer ORBIT 11 is an active coaxial 3-way studio monitor for mixing, mastering, post-production, sound design, broadcasting, and content creation. Its coaxial True Point Source design combines a 6.5″ midrange speaker and a 1″ tweeter on a common acoustic axis, ensuring stable sound reproduction and a r...
All product information
Op voorraad (2)
Delivery
Available
S2Store Genk (BE)
Available
Combination deal
2x ORBIT Black Studiobundle
2x
2x- 2x ORBIT 11 PALMER 3-way Coaxial Studio Monitor€1.596,00
- 1x Monicon M G2 Palmer Passive Studio Volume Controller€74,00
- 2x 5-Star Adam Hall Microphone Cable XLR Neutrik (5m)€53,00
Total
€1.723,00
Bundle price
€1.688,54
You save
€34,46
Plus- en minpunten
Omschrijving
ORBIT 11 PALMER 3-way Coaxial Studio Monitor
ORBIT 11 PALMER 3-way Coaxial Studio Monitor

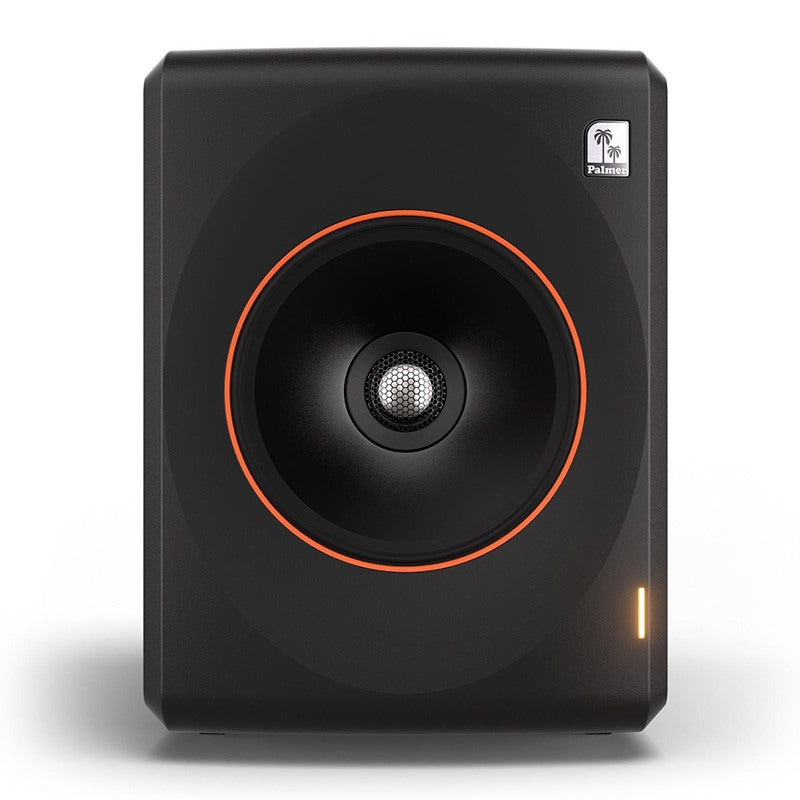

The Palmer ORBIT 11 is an active coaxial 3-way studio monitor for mixing, mastering, post-production, sound design, broadcasting, and content creation. Its coaxial True Point Source design combines a 6.5″ midrange speaker and a 1″ tweeter on a common acoustic axis, ensuring stable sound reproduction and a reliable balance throughout the entire listening area with its consistent 120° × 120° dispersion behavior.
The controlled, uniform dispersion supports reliable balance and translation, while the front sound cabinet with cardioid characteristics reduces rearward sound energy and thus room reflections.

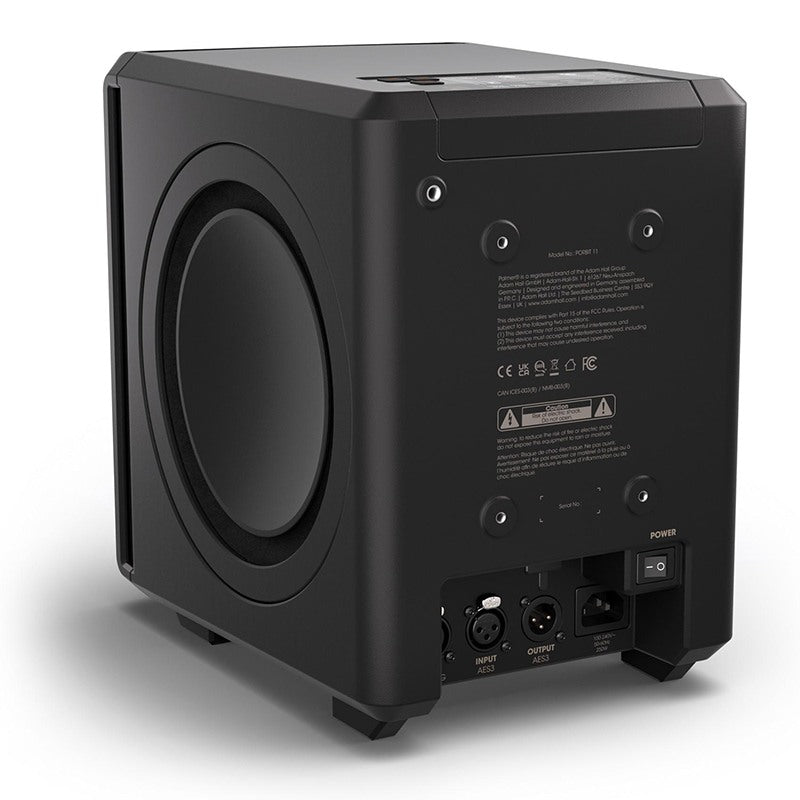

The low frequencies are handled by two impulse-compensated 8″ woofers in a sealed cast aluminum enclosure with a wall thickness of 5 to 16 mm, which counteracts mechanical forces, minimizes enclosure vibrations, and allows for impressive deep bass reproduction down to 28 Hz.
Internal processing with 96 kHz/24-bit and FIR filtering ensures linear phase behavior and temporal coherence of the drivers.
Features:

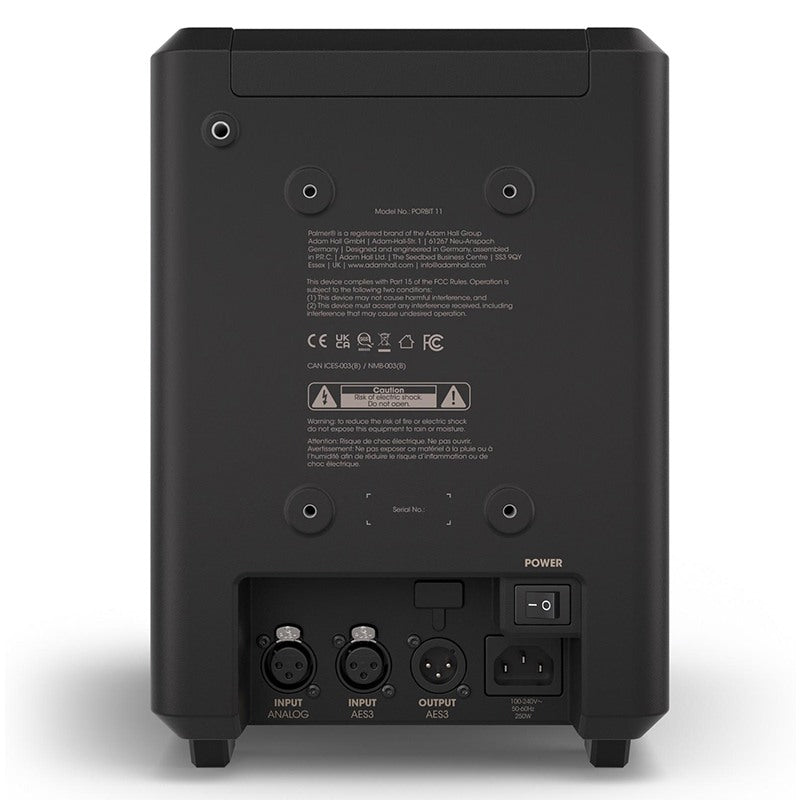

- For quick setup, the top control panel provides direct access to the input path, the 3-band EQ, table and wall presets, and an 80 Hz high-pass filter. Connectivity options include a balanced XLR line input and AES3 via XLR, as well as an AES3 Thru output for daisy-chaining.
- Thanks to the threaded M8 eyebolt mounting points and compatibility with the tiltable and swivelable Gravity bracket GSPWMBS20B, the ORBIT 11 can be securely attached to the wall or ceiling.
- The ORBIT 11 is the result of acoustic precision and German engineering. Its time-coherent reproduction and extended low-frequency range make it a reliable monitor – Made for those who listen.
- Cast aluminum enclosure for extremely low resonance
- Black or white for your individual style
- Coaxial point source (6.5″ midrange and 1″ tweeter)
- Impulse-compensated dual 8″ woofers for accurate, resonance-free bass
- 3-way design for precision and clarity across the entire frequency range
- 1000 W Class D amplifier ensures high dynamic range
- Cardioid design for controlled directivity and fewer room reflections
- 120° × 120° constant directivity for uniform dispersion
- FIR filter for linear phase with minimal latency
- Ultra-wide frequency range (28 Hz–28 kHz @ -3 dB)
- Advanced low-end design improves wall coupling and reduces cancellation
- Clear control panel with table and wall presets for efficient setup
- High resolution 96 kHz / 24-bit DAC and DSP
- Analog and AES3 inputs for seamless integration
Korte specificaties
| Housing | |
|---|---|
| Dimensions | 217 mm x 293 mm x 292 mm |
| Weight | 13,9 kg |
| Construction material | 5–16 mm, gegoten aluminium |
| Sound | |
|---|---|
| Crossover frequency | 250 Hz / 1800 Hz |
| Frequency response | -3 dB: 28 Hz – 28 kHz |
| HF driver | 1" (coaxiaal) |
| LF driver | 2x 8" |
| Mid-range driver | 6.5 inch |
| Beam angle | 120° horizontaal, 120° verticaal |
| Power | |
|---|---|
| Max SPL sound pressure level | 116 dB |
| Peak power | 1000 W |
| RMS power | 400 W |
| Amplifier class | D |
| Audio I/O | |
|---|---|
| Inputs | XLR |
| Digital audio | |
|---|---|
| Bit depth | 24 bit |
| Sound card | |
|---|---|
| Sample rate | 96 kHz |
