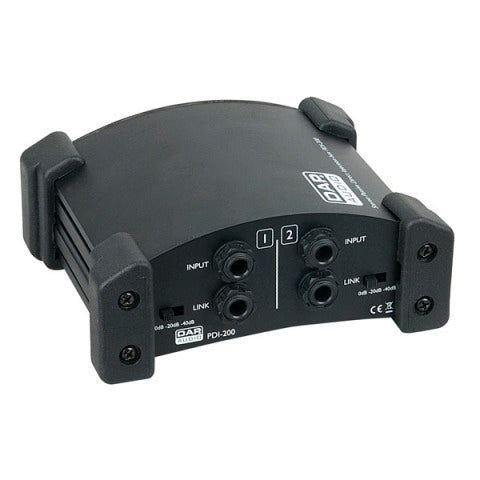

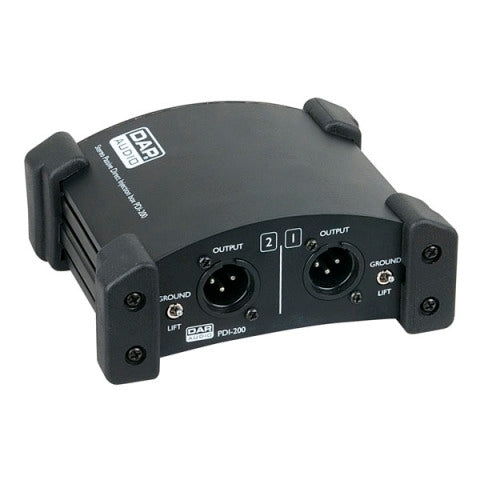

PDI-200 DAP AUDIO STEREO PASSIVE DI BOX
The PDI-200 is a two-channel passive direct injection box. It converts your HI-Z signal into a LO-Z signal. You do not need a battery or phantom power for this direct box. It has very wide applications, great for keyboard signals, acoustic & electric guitar signals and any other instrument signals that need to be plugged into a snake on stage.
FEATURES:
- Road proof housing with rubber feet
- Low distortion
- No power supply needed
- 0, 20 ,40db attenuation settings
SPECIFICATIONS:
- Input: 6,3mm Jack
- Link: 6,3mm Jack
- Output: XLR Male
- Input Impedance: 50,000 Ohms
- Output Impedance: 500 Ohms
- Frequency Response: 30 – 50,000 Hz (1 dB)
- THD at 400 Hz: 0.003%
- Fixed Natural Attenuation: 20 dB
- Attenuation Settings: 0, 20, 40 dB
- Crosstalk at 1 kHz at 0 dBu: -96 dBu
- Dimensions: 140 x 110 x 55 mm
- Weight: 1.1 kg
DOWNLOADS:
D1944_MANUAL_GB_V1
