PowerCore 125.5c ShowGear CEE Power Distributor
PowerCore 125.5c ShowGear CEE Power Distributor 2x CEE 32A + 3x CEE 63A
The Showgear PowerCore 125.5c provides reliable power and optimal protection for your valuable equipment. Each output is armed with its own RCBO to detect earth faults and overcurrents. In the event that a problem is detected, it will automatically shut down the affected circuit, keeping the rest of the...
Delivery
S2Store Genk (BE)
Plus- en minpunten
Omschrijving
PowerCore 125.5c ShowGear CEE Power Distributor
PowerCore 125.5c ShowGear CEE Power Distributor 2x CEE 32A + 3x CEE 63A
The Showgear PowerCore 125.5c provides reliable power and optimal protection for your valuable equipment. Each output is armed with its own RCBO to detect earth faults and overcurrents. In the event that a problem is detected, it will automatically shut down the affected circuit, keeping the rest of the system active.

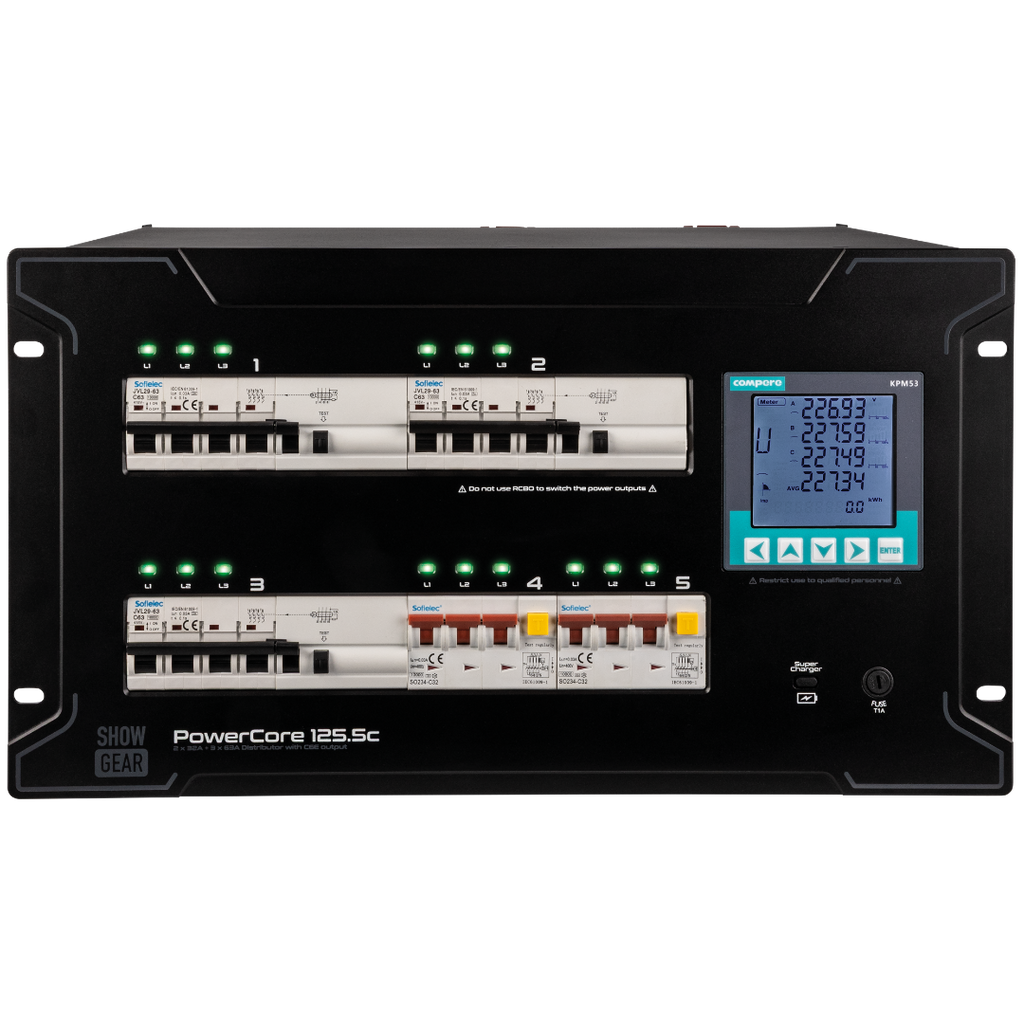

With an LED for each output, it's also easy to check statuses, while a 3-inch display makes it possible to view various settings, including voltage, power and phase information. A power meter with the MdbuS communication protocol makes it possible to monitor performance remotely too.

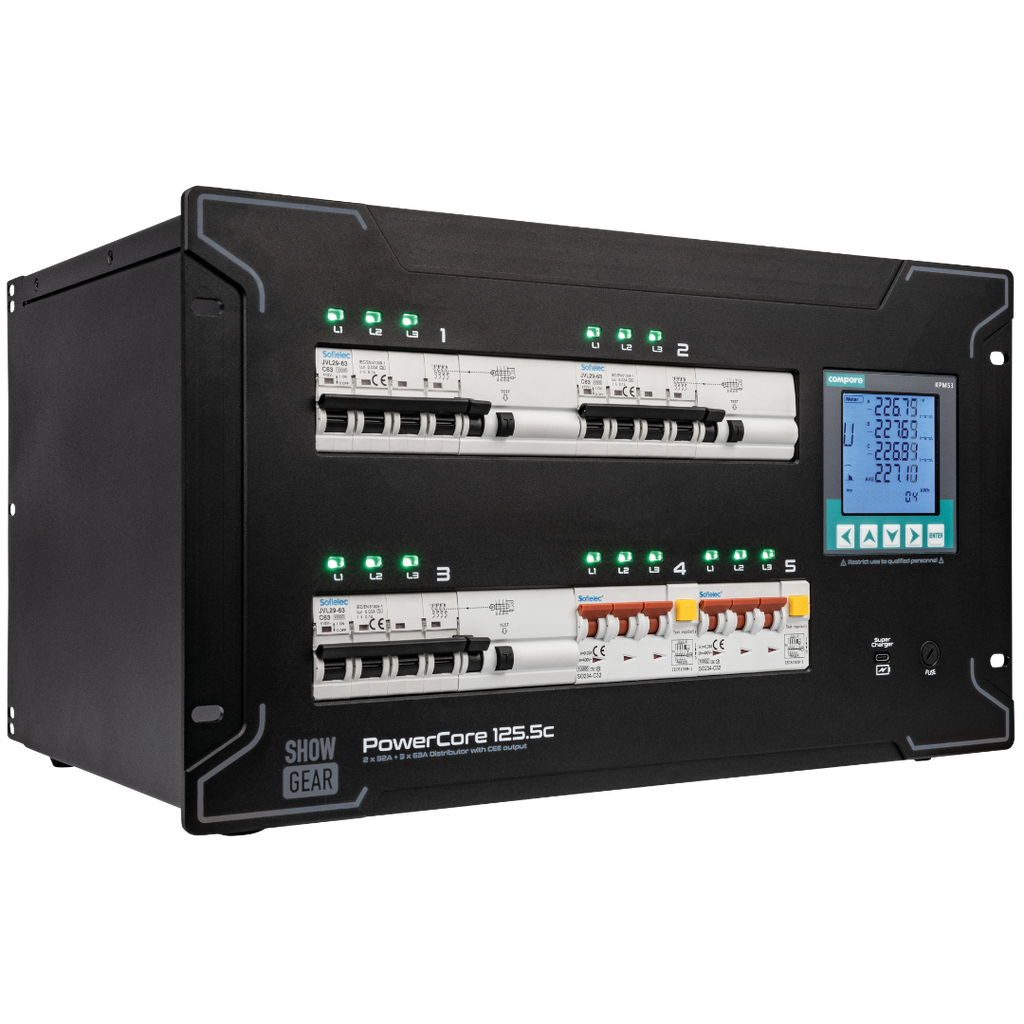

A robust CNC-milled aluminium front panel and sturdy mounting connectors by PCE make the PowerCore range suitable for demanding applications.
- RCBO per output
- LED per output
- 3-inch display
- Power meter with MdbuS protocol
- CNC-milled aluminium front panel and PCE connectors
Korte specificaties
| Housing | |
|---|---|
| Dimensions | 421 x 271 x 483mm |
| Weight | 21.8kg |
| Color | Zwart |
| Rack height | 6U |
| Cable | |
|---|---|

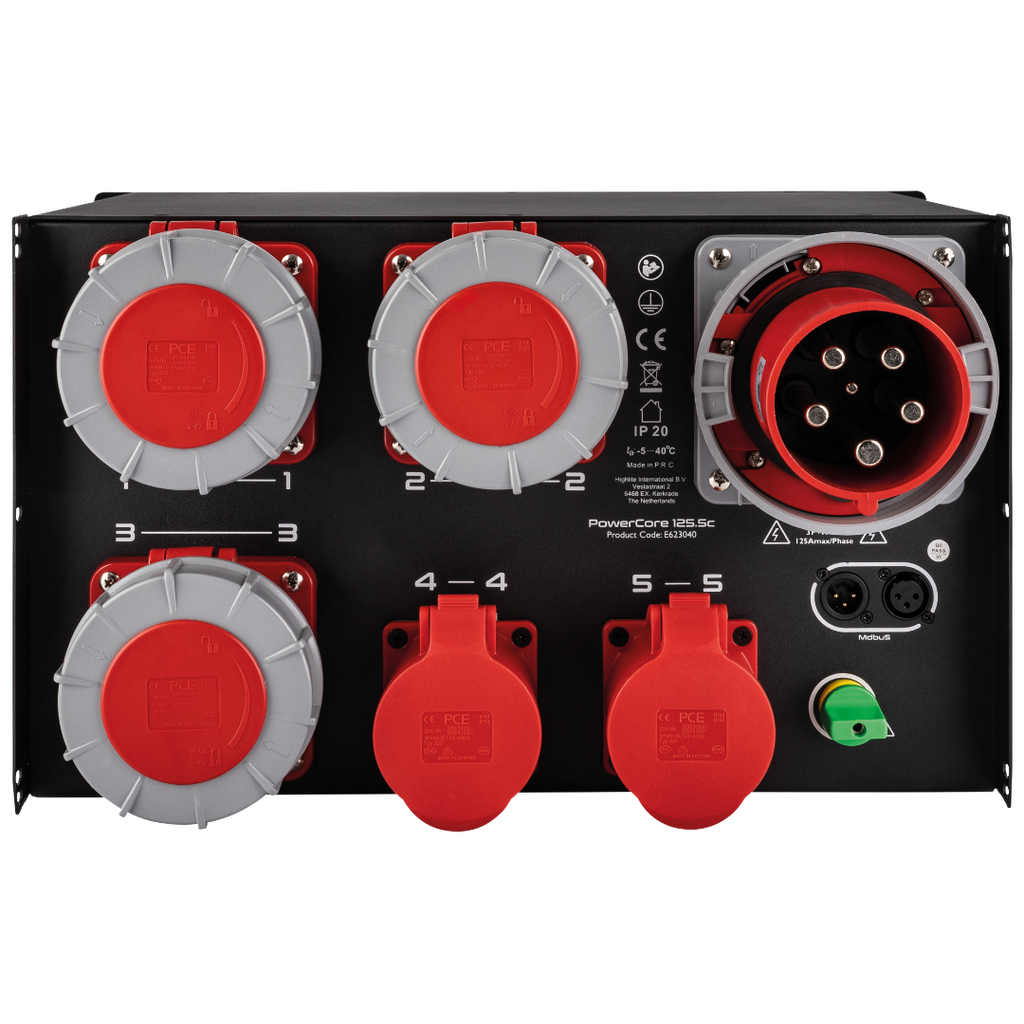

| Connectors | In: CEE 5P 125A / Uit: 2x CEE 5P 32A + 3x CEE 5P 63A |
