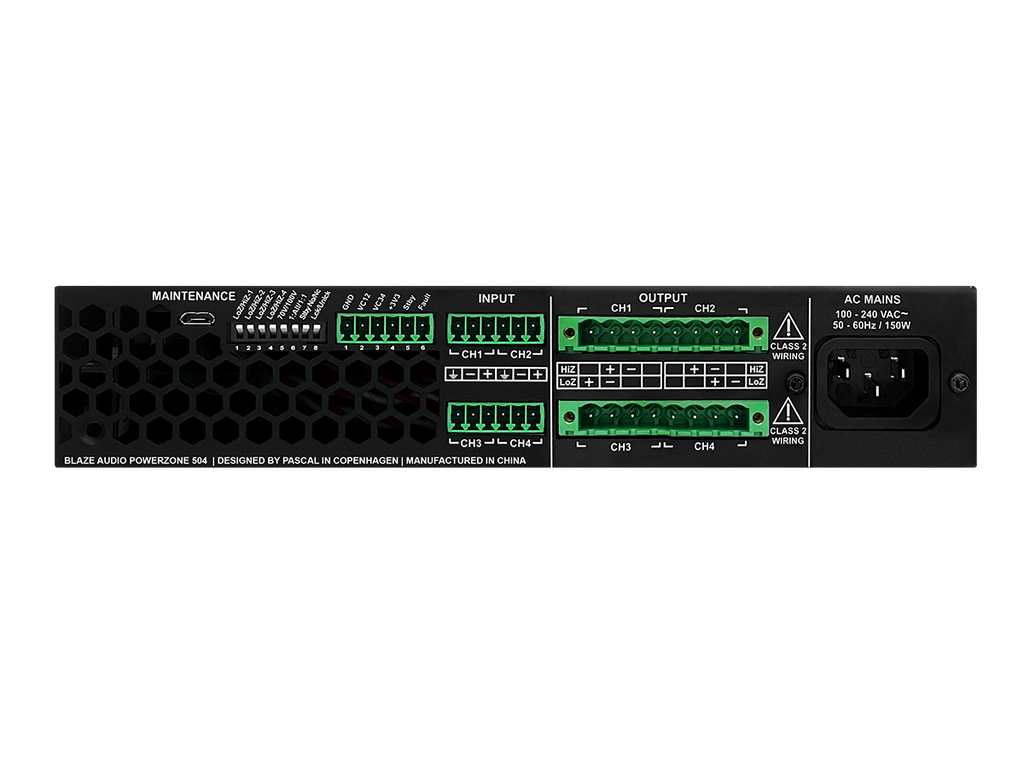

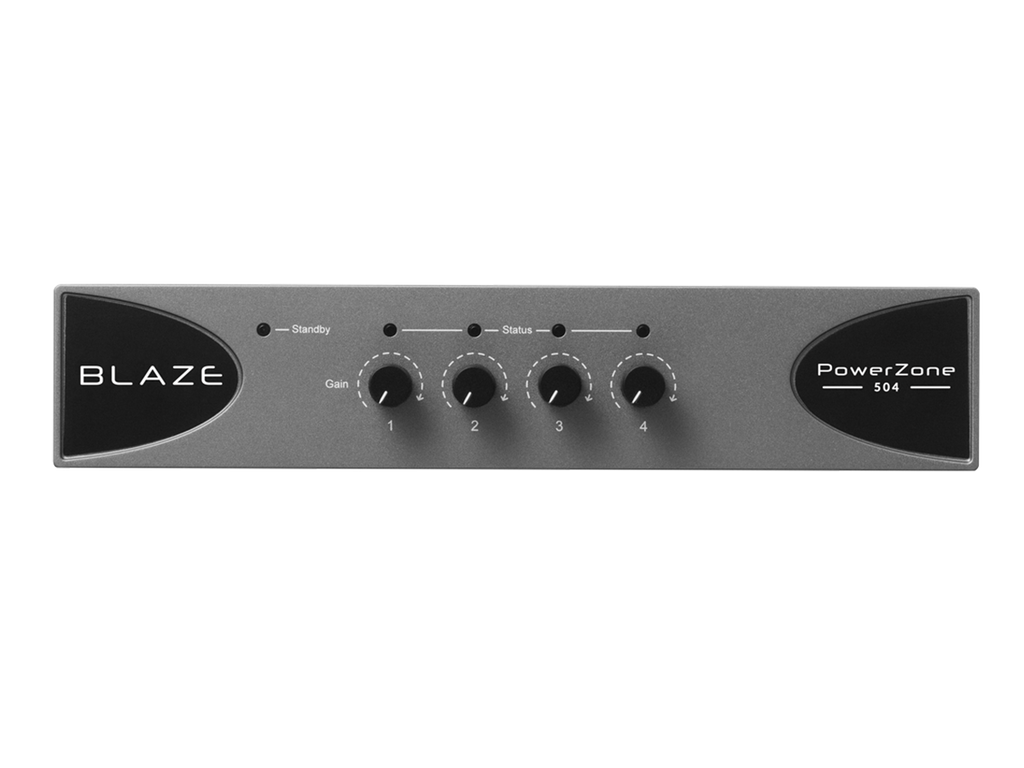

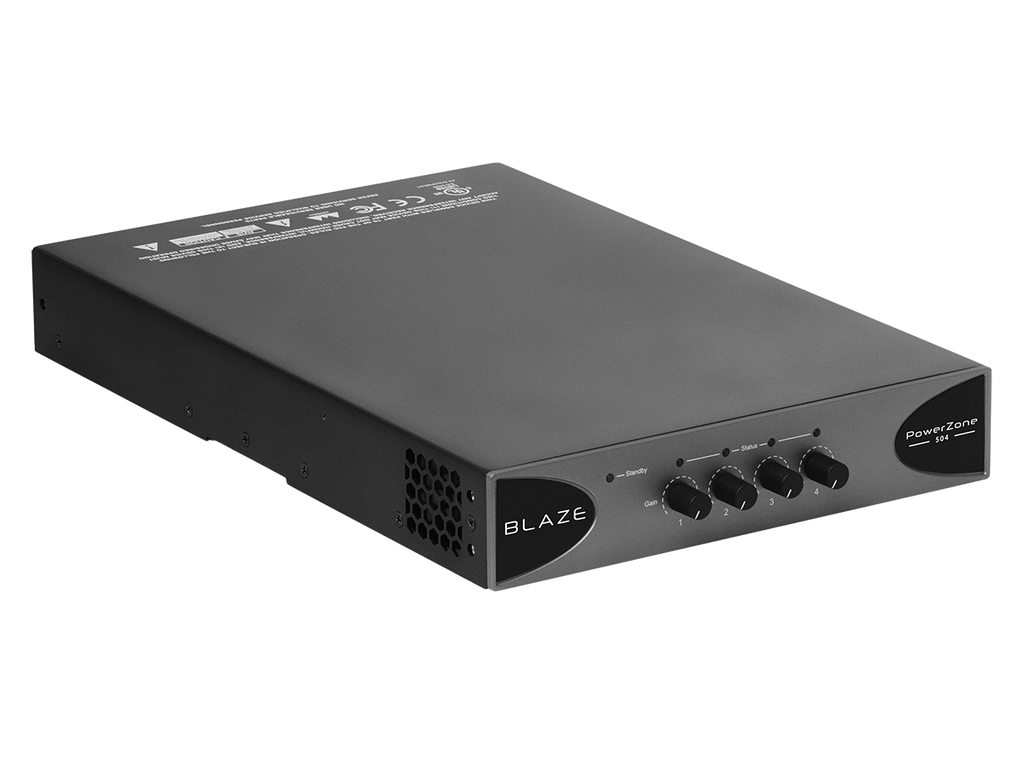

PowerZone 504 Blaze Audio Amplifier
PowerZone 504 Blaze Audio 4-Channel Install Amplifier
Each output channel can be independently configured to drive Lo-Z or Hi-Z loads, making it much more flexible and versatile than other full rack products. This means that a system can easily be configured with any output power and drive both Lo-Z and Hi-Z speakers - with just one smart amplifier.
The total available power is automatically distributed to the channel pairs, thanks to our power sharing technology (*252 and 504 models only). The ultra-compact PowerZone can be installed in locations where other products cannot, and has desk- and wall-mount brackets and full rack mounts.
Korte specificaties
| Housing | |
|---|---|
| Dimensions | 44.5 x 220 x 337 mm |
| Weight | 2.4 kg |
| Sound | |
|---|---|
| Signal-to-noise ratio | > 100 dB (A-weighted, 20 Hz – 20 kHz, 8 Ω load) |
| THD (total harmonic distortion) | 1% THD @ 120VAC and 230VAC |
| Power | |
|---|---|
| Peak power | 500 W |
| RMS power | 4/8Ω of 100V - 4 x 125 W / 2x 250W Powershare |
| Amplifier class | D |
| Power supply | |
|---|---|
| Voltage | 100-240V, 50-60Hz |
| Consumption | 150W |
