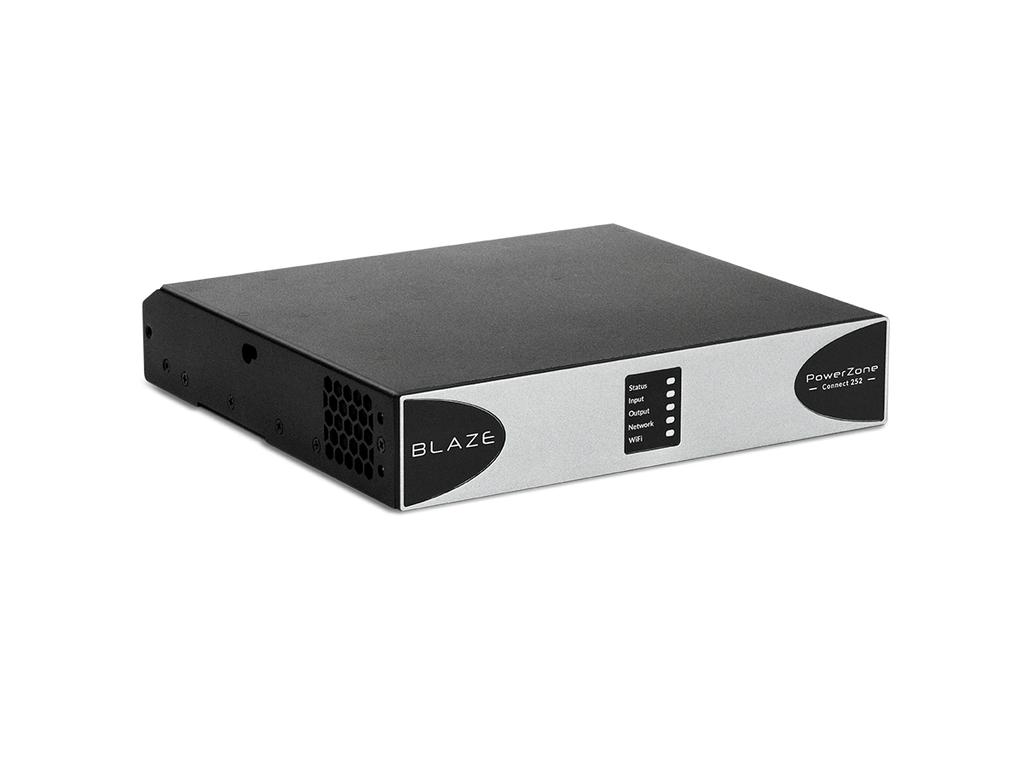

PowerZone™Connect 252 BLAZE AUDIO DSP Amplifier
PowerZone CONNECT 252 BLAZE AUDIO Installation Amplifier
The PowerZone™ Connect 1U series is a line of DSP-enabled Class-D amplifiers designed to make life easier for system installers, offering unmatched reliability and efficiency along with exceptional system configuration. The ultra-compact form factor makes them an ideal choice for audio/voice installation projects with limi...
Delivery
S2Store Genk (BE)
Plus- en minpunten
Omschrijving
PowerZone™Connect 252 BLAZE AUDIO DSP Amplifier
PowerZone CONNECT 252 BLAZE AUDIO Installation Amplifier
The PowerZone™ Connect 1U series is a line of DSP-enabled Class-D amplifiers designed to make life easier for system installers, offering unmatched reliability and efficiency along with exceptional system configuration. The ultra-compact form factor makes them an ideal choice for audio/voice installation projects with limited space that require high performance. The 1U Series powers both conventional low-impedance (4Ω to 16Ω) and constant voltage (70V/100V) transformer-powered speakers, and features automatic power-sharing technology for proportional distribution in both Lo-Z and Hi-Z modes.
Korte specificaties
| Housing | |
|---|---|
| Dimensions | 44 x 220 x 213 mm |
| Weight | 2kg |
| Rack height | 1/2 19-inch formaat / hoogte 1U |
| Sound | |
|---|---|
| Frequency response | 20Hz-20kHz (+0/-0.25dB (8Ω load, 3dB below rated power) |
| Signal-to-noise ratio | > 106dB (A-weighted, 20Hz-20kHz, 8Ω load) |
| THD (total harmonic distortion) | < 0.05% (20Hz-20kHz, 8Ω load, 3dB below rated power) |
| Power | |
|---|---|
| Peak power | 1 x 250 W (2x 125W) @4 Ohm |
| Amplifier class | UMAC™ Class D |
| Power supply | |
|---|---|
| Voltage | 100V-240V, 50Hz-60Hz |
| Consumption | 75 W |
| Audio I/O | |
|---|---|
| Channels | 2 x lo-Z / 1 x Hi-Z |
