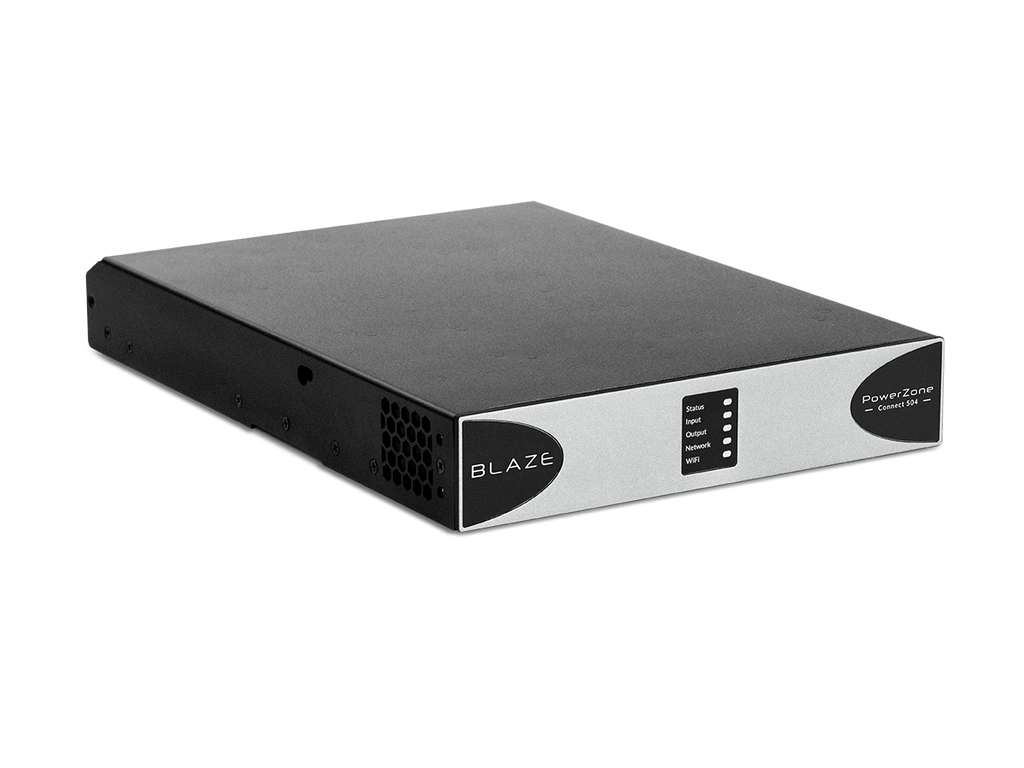

PowerZone™ Connect 504 BLAZE AUDIO DSP Amplifier
PowerZone™ Connect 504 BLAZE AUDIO DSP Amplifier
The PowerZone™ Connect 1U series is a line of DSP-enabled Class-D amplifiers designed to make life easier for system installers, offering unmatched reliability and efficiency along with exceptional system configuration. The ultra-compact form factor makes them an ideal choice for audio/voice installation projects with limited space that require high performance. The 1U Series powers both conventional low-impedance (4Ω to 16Ω) and constant voltage (70V/100V) transformer-powered loudspeakers, and features automatic power-sharing technology for proportional distribution in both Lo-Z and Hi-Z modes.
Korte specificaties
| Housing | |
|---|---|
| Dimensions | 44 x 220 x 319 mm |
| Weight | 2.8 kg |
| Sound | |
|---|---|
| Frequency response | 20 Hz – 20 kHz (+0/-0.25 dB (8 Ω load, 3 dB below rated power) |
| Signal-to-noise ratio | > 100 dB (A-weighted, 20 Hz – 20 kHz, 8 Ω load) |
| THD (total harmonic distortion) | < 0.05 % (20 Hz – 20 kHz, 8 Ω load, 3 dB below rated power) |
| Power | |
|---|---|
| Peak power | 4 x 125W (@ 4/8Ω) - 2 x 250W (100V) Powershare |
| Amplifier class | UMAC™ Class D |
| Power supply | |
|---|---|
| Consumption | 150 W |
