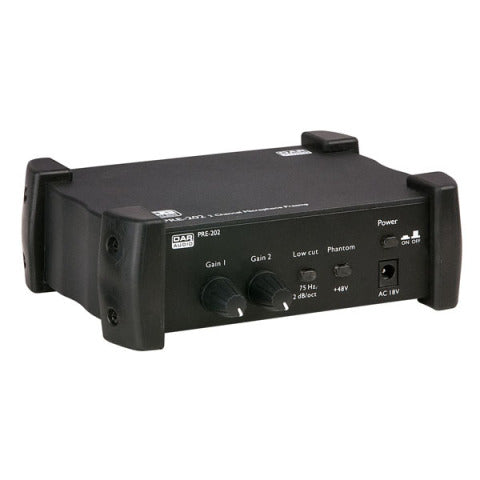

The PRE-202 is a 2 channel solution for microphones that combines a high quality low noise preamps with a 48 volt phantom power supply. It also offers gain settings and a low cut function that will help you to eliminate unwanted stage rumble. The 48-volt phantom power supply is capable of powering most any condenser microphone. The PRE-202 the ideal solution for applications where the use of normal or condenser microphones is desired and the audio system does not provide phantom power on the microphone inputs, or doesn´t have microphone inputs at all.

The DAP Pro Audio Solutions are a complete line-up of audio tools for the professional musician or audio engineer. It is a series of audio modifying tools like mini-mixers, pre-amps and converters available in active or passive models. All audio solutions are designed to meet the highest stage and audio demands and feature a metal road proof housing with rubber feet and easy accessible controls. The units also have a small footprint which make them ideal to be used and placed in any environment where space is critical.

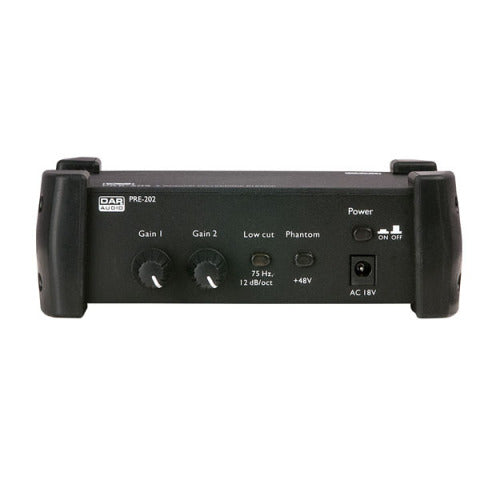

FEATURES:

• Switchable Phantom power
• Switchabel low cut
• Level control
• Low noise preamps

SPECIFICATIONS:

• Frequency Response: 20Hz-20KHz

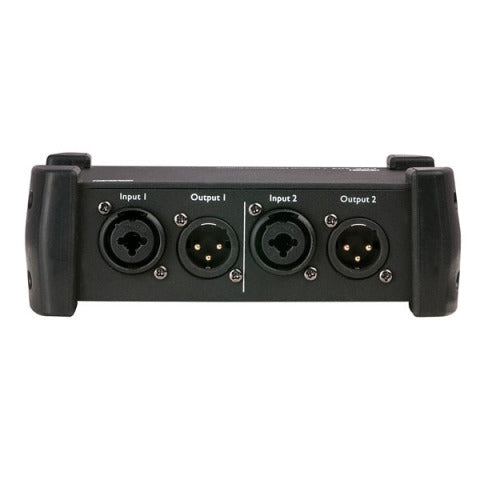

• Inputs: XLR/Jack Combo
• Outputs: XLR male
• Input sensitivity: -50dBV
• Max input voltage: -4 dBu
• Max output voltage: +22 dBu
• Power supply: 18V AC (adapter included)
• Dimensions: 53 x 158 x 135 mm (HxWxD)
• Weight: 0,67 Kg

DOWNLOADS:

Manuals

•  D1533_MANUAL_GB_V1

Product documents

•  D1533_CE-EMC_Directive
•  D1533_CE-EMC_LVD_Directive
